Citizen Alarm

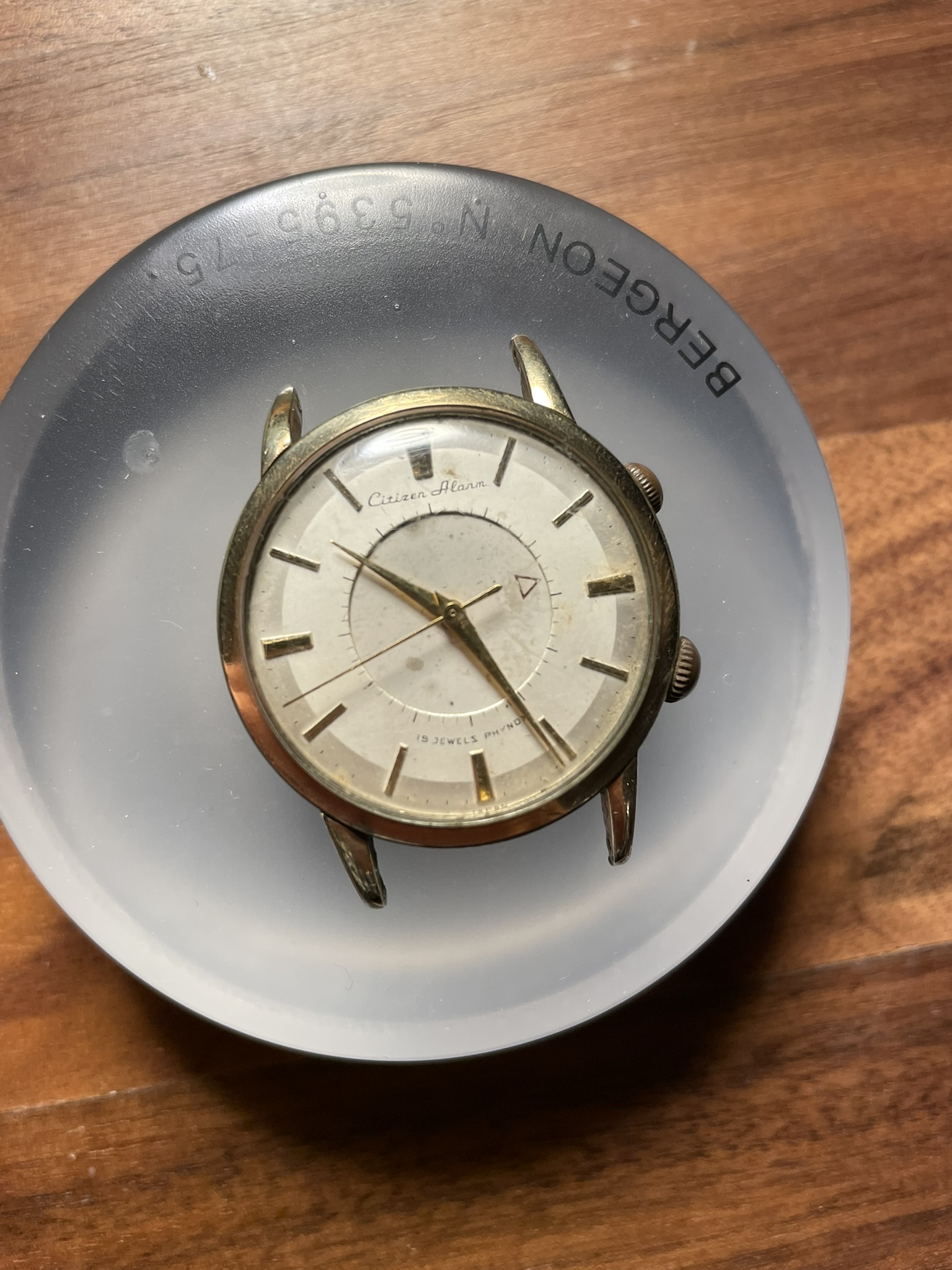

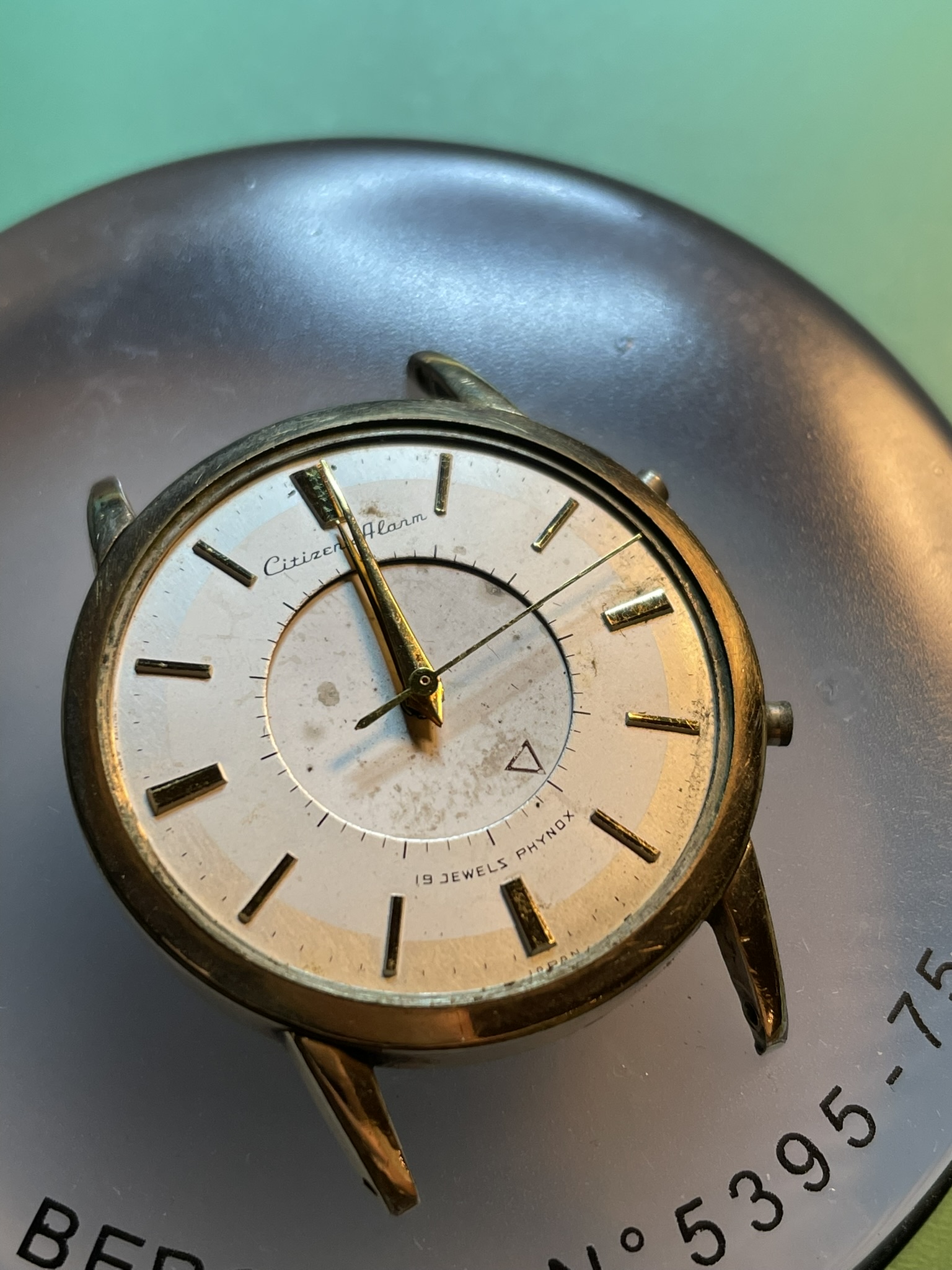

I won an eBay auction for a nice gold-plated Citizen Alarm wristwatch. This is relatively unknown in the west because it was originally only marketed and sold in Japan. I got it cheap because it was not running -- the balance staff is broken. So, my first quest was to determine the movement model number. I dug around and eventually asked on WRT. TL;DR: the DCN #612 staff works.
| Position | Rate [spd] | Amplitude [°] | Beat error [ms] | Note |
|---|---|---|---|---|
| DU | 1 | |||
| DD | 6 | |||
| CL | -8 | |||
| CD | -19 |

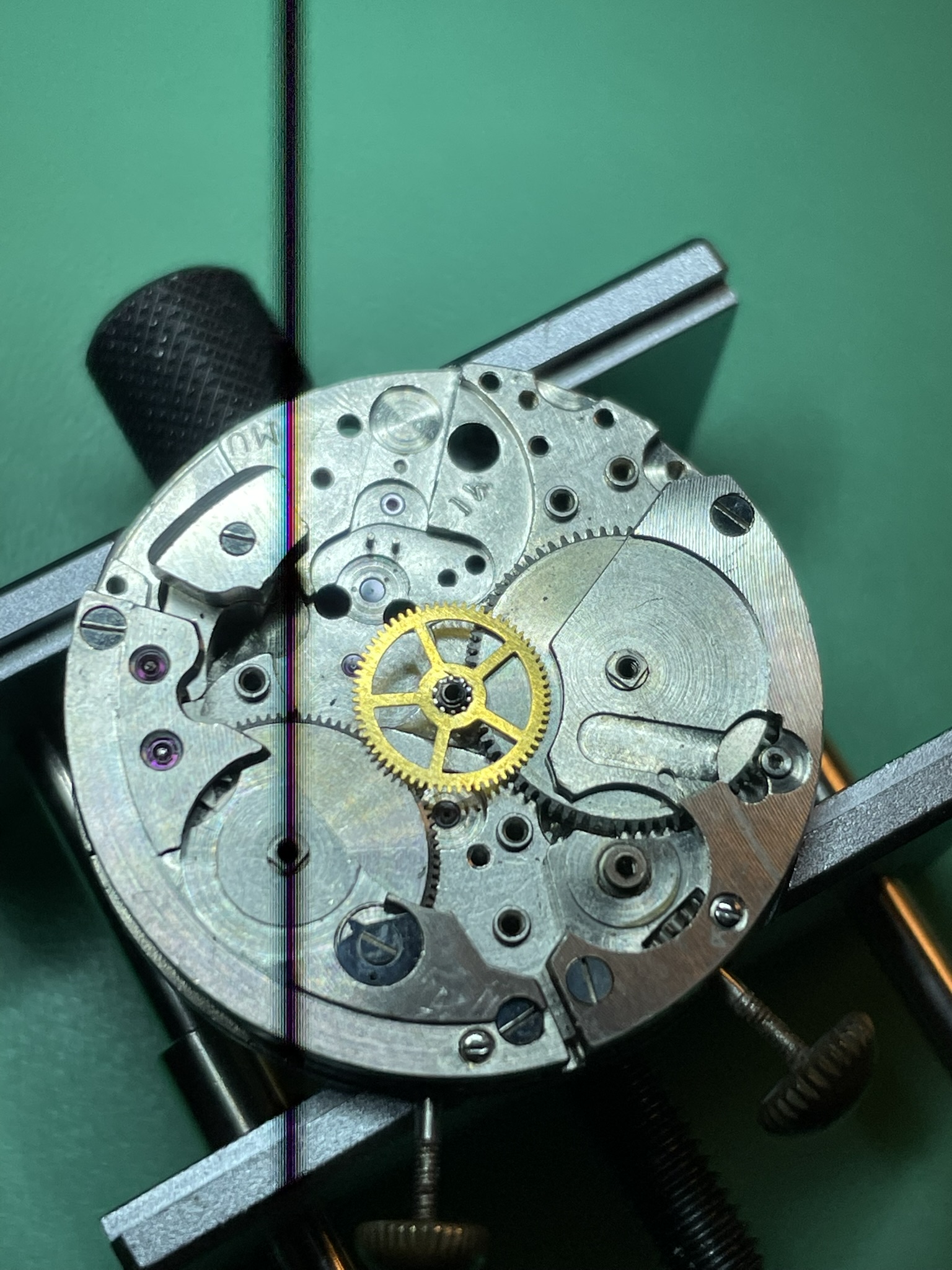

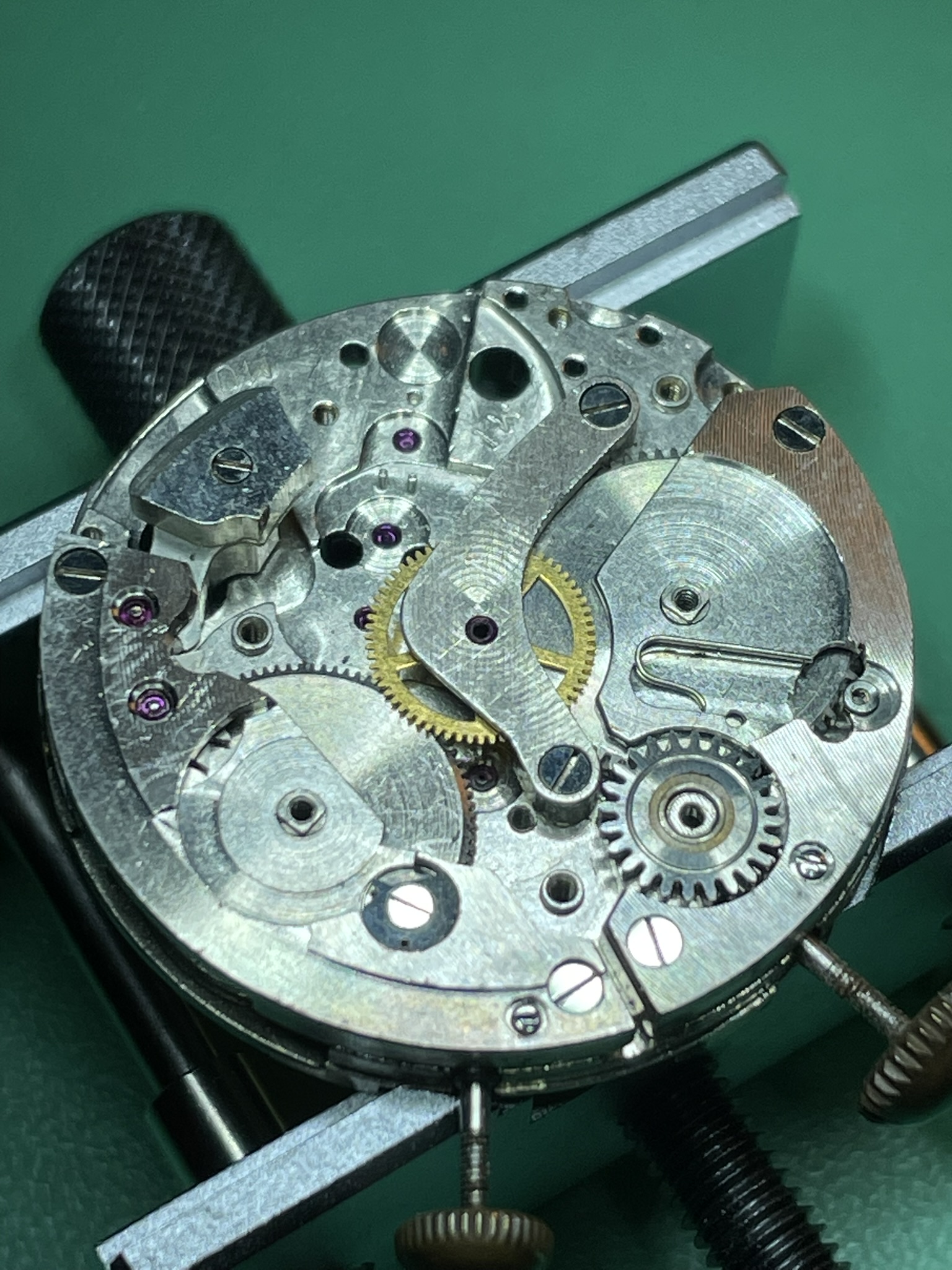

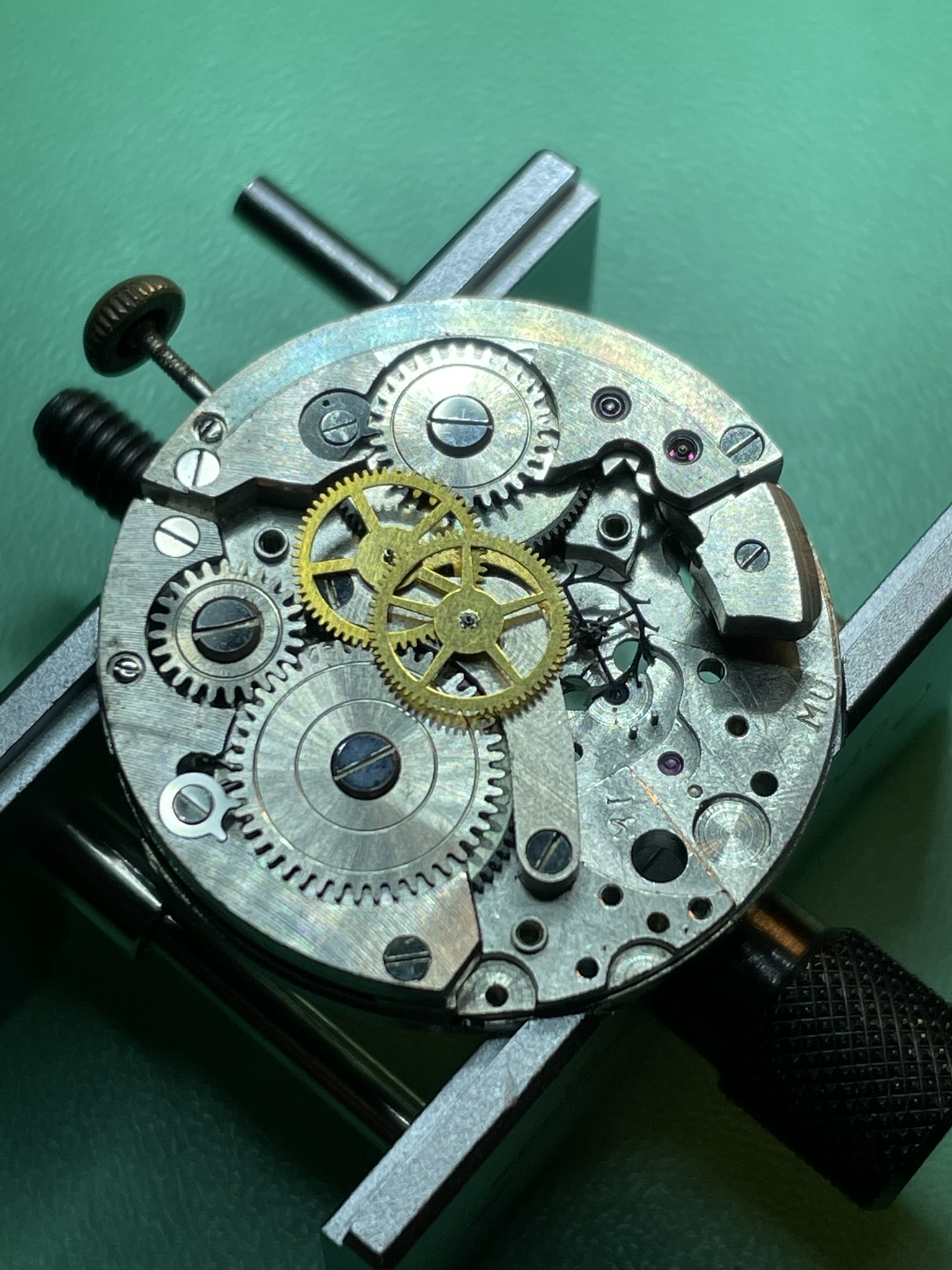

Disassembly and fault finding

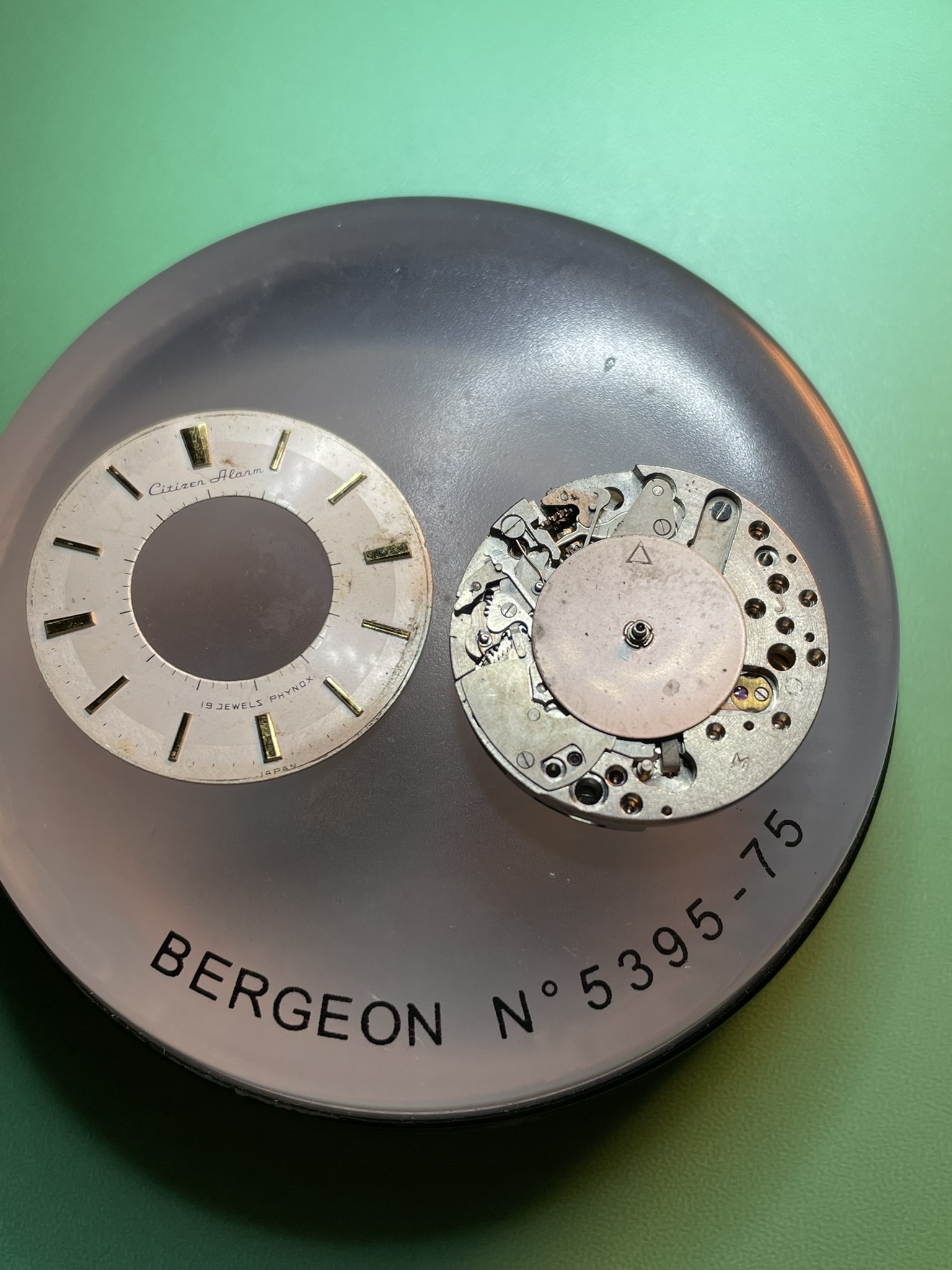

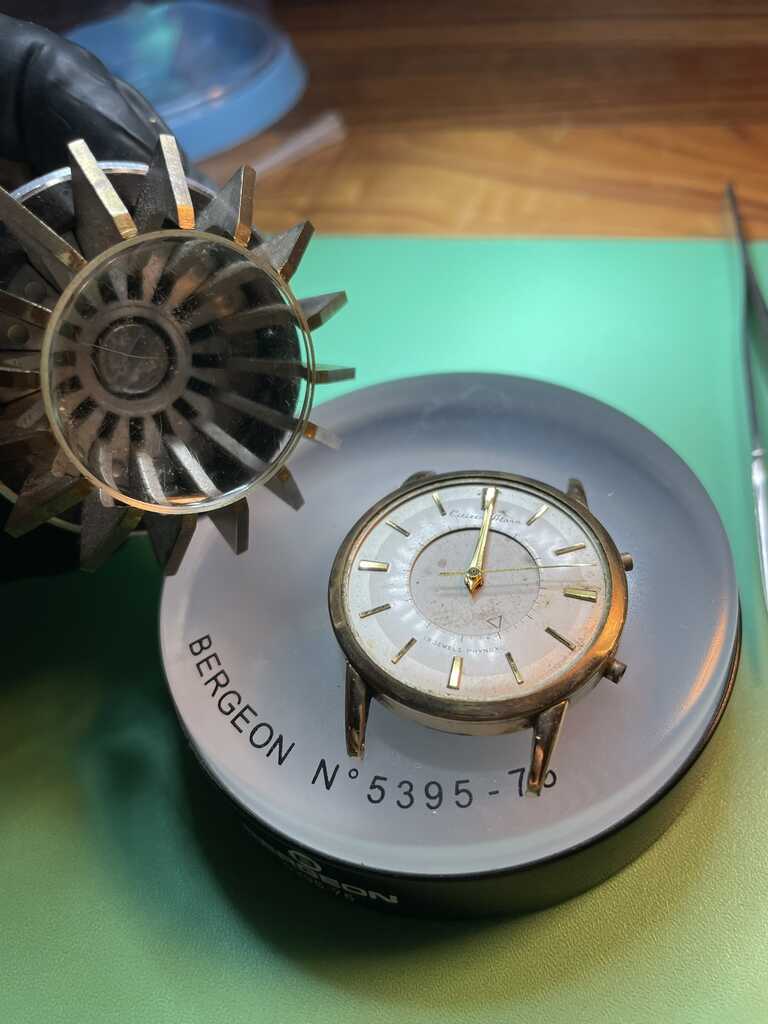

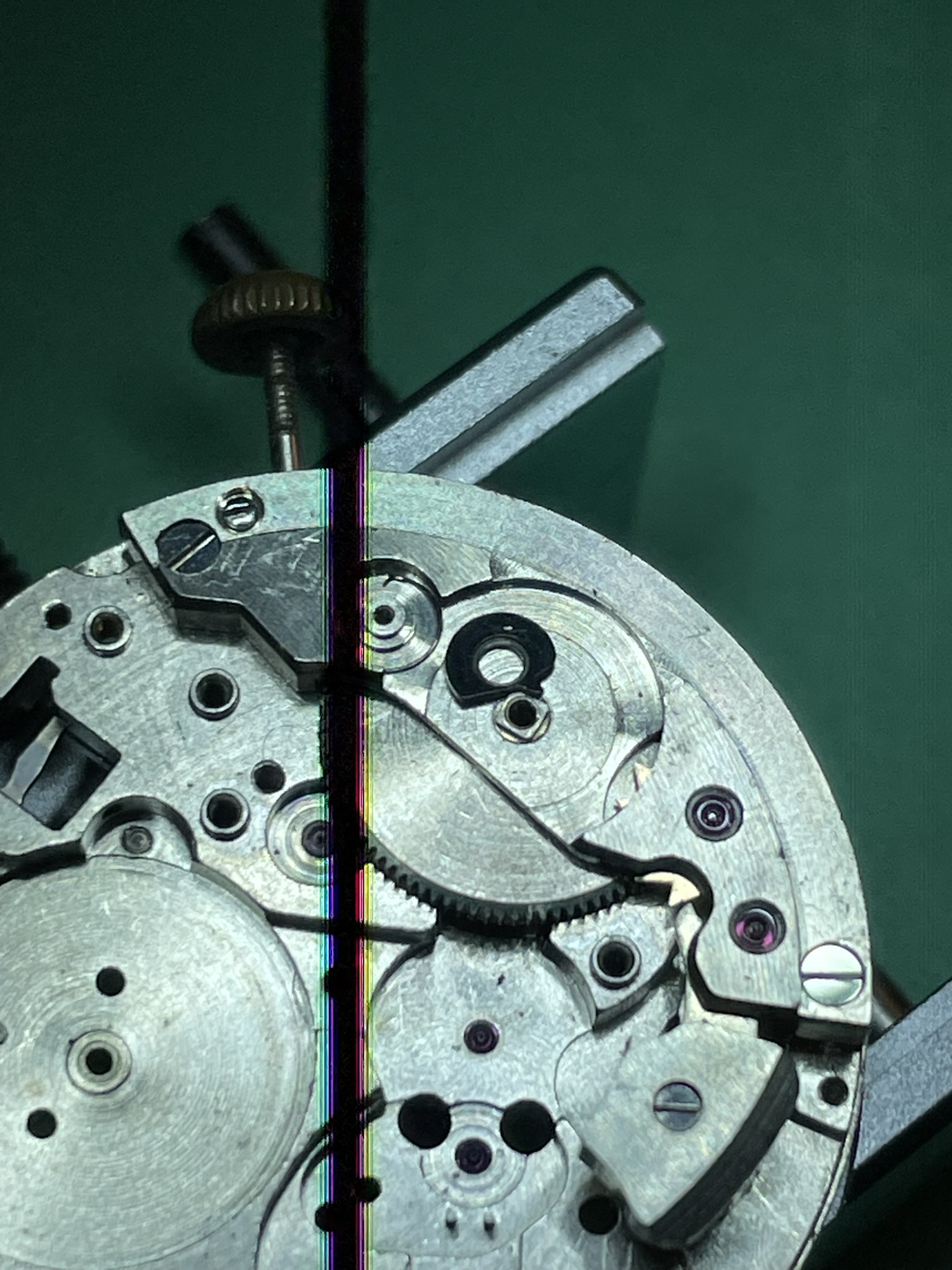

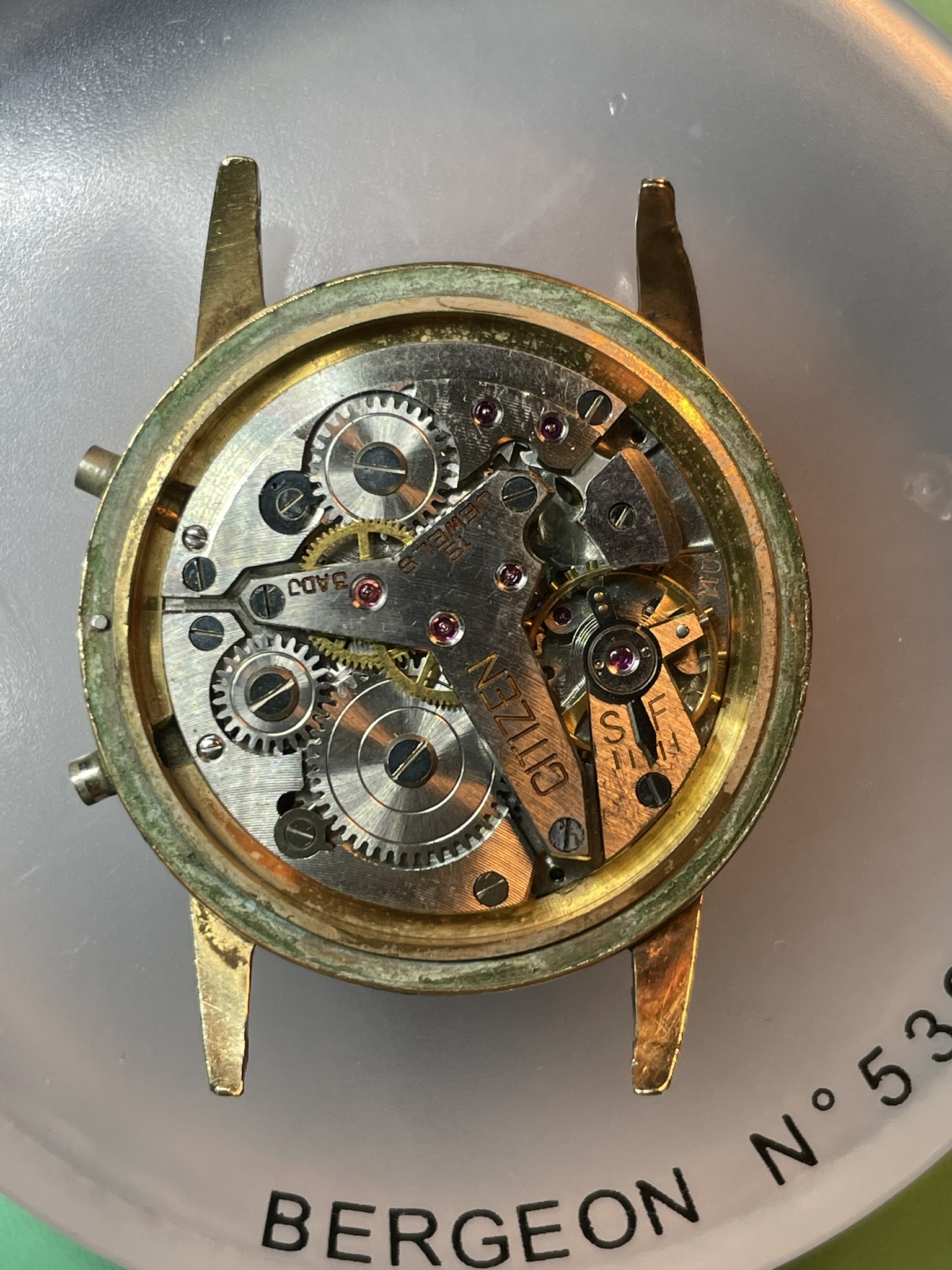

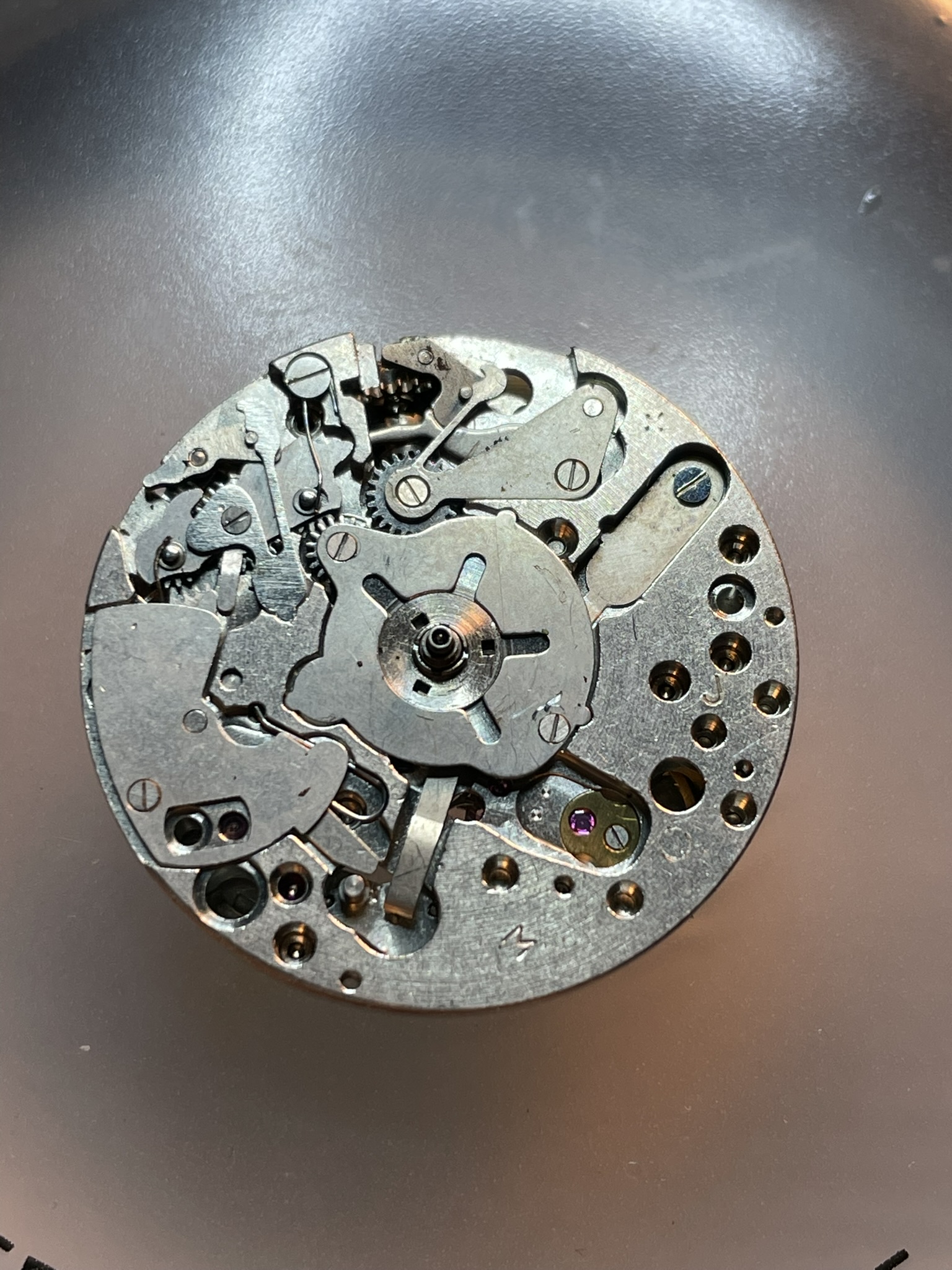

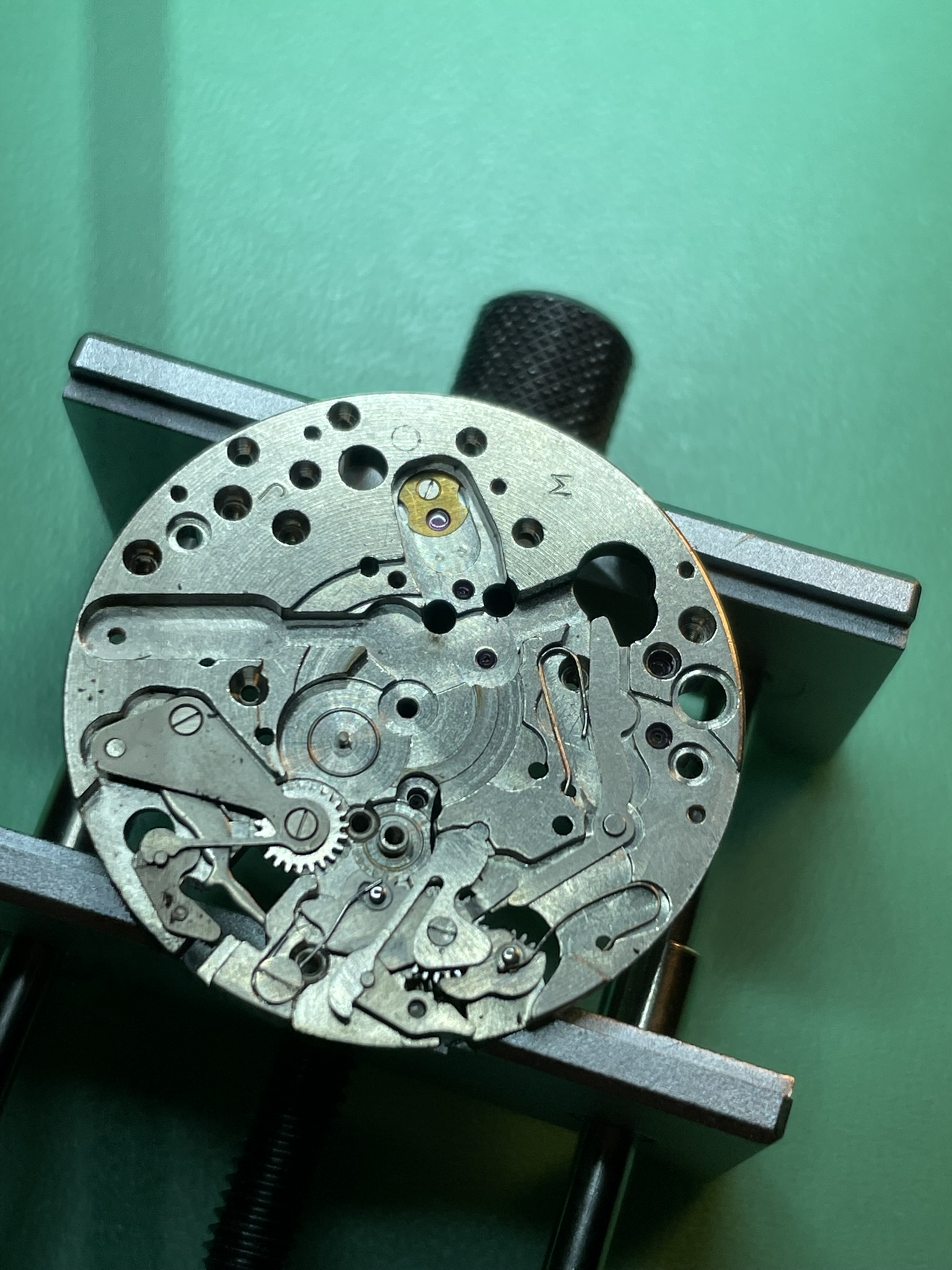

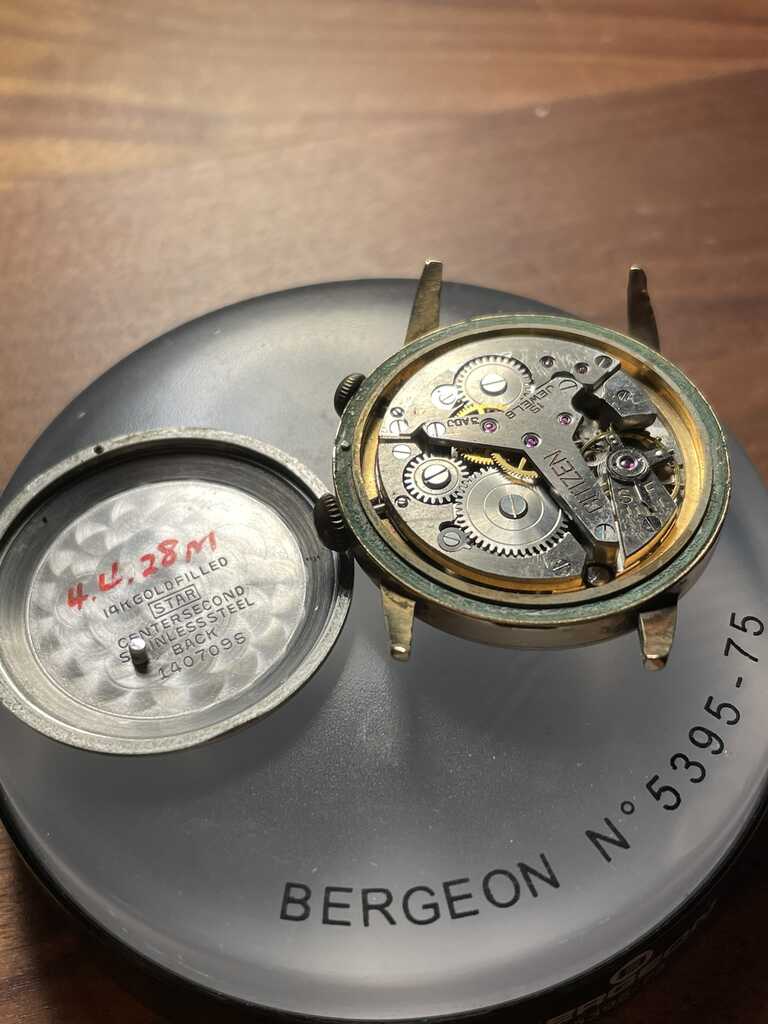

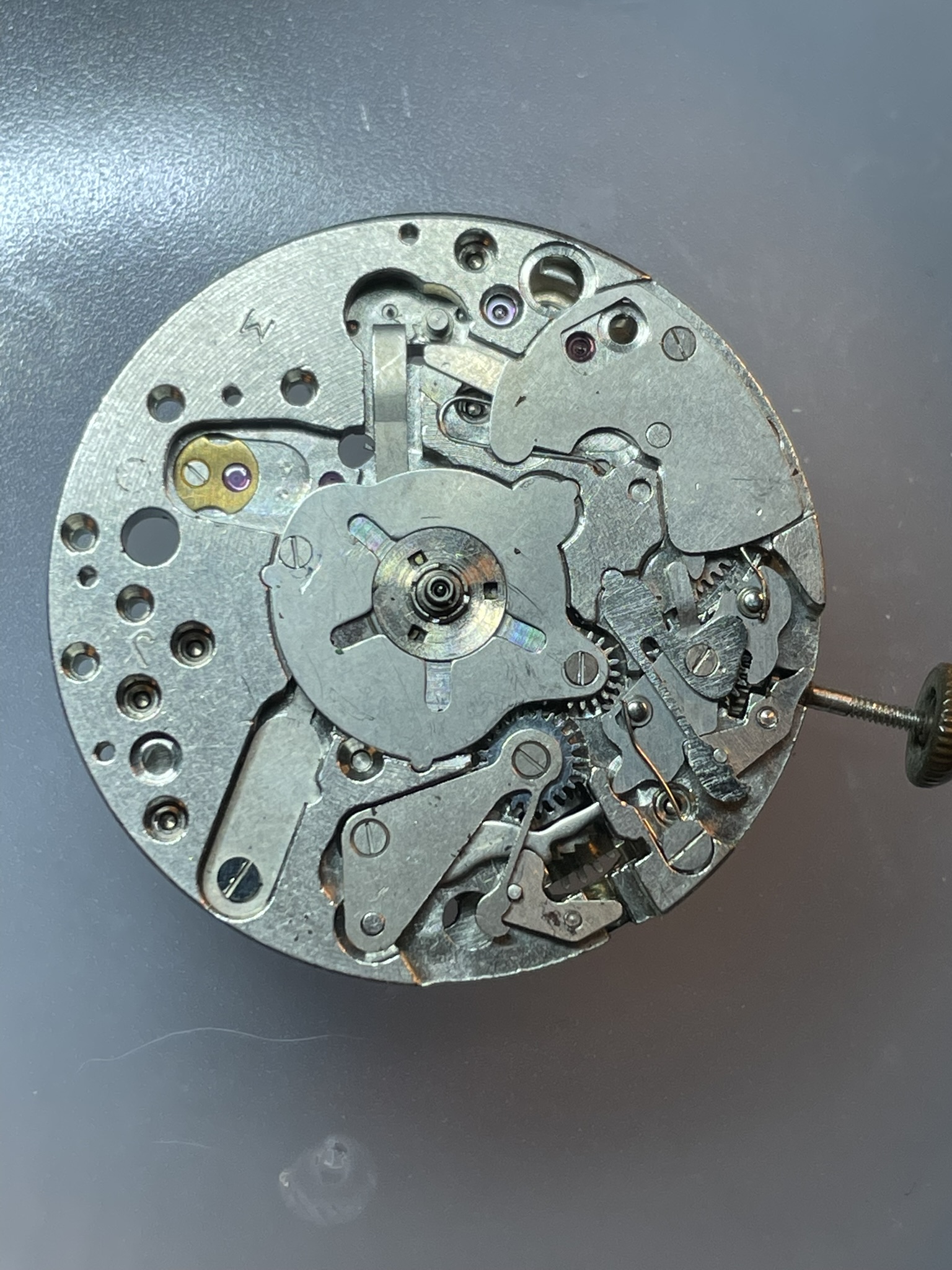

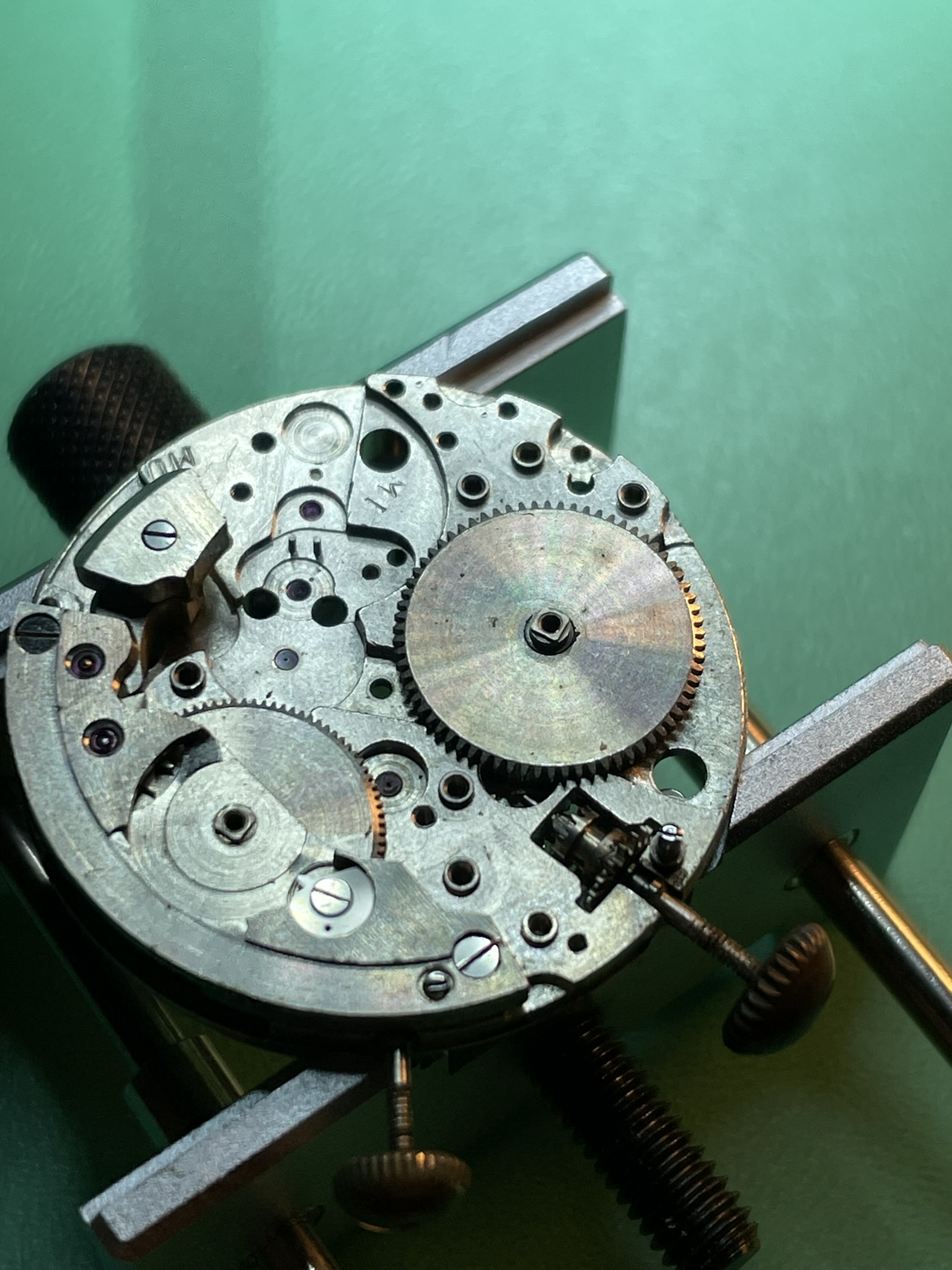

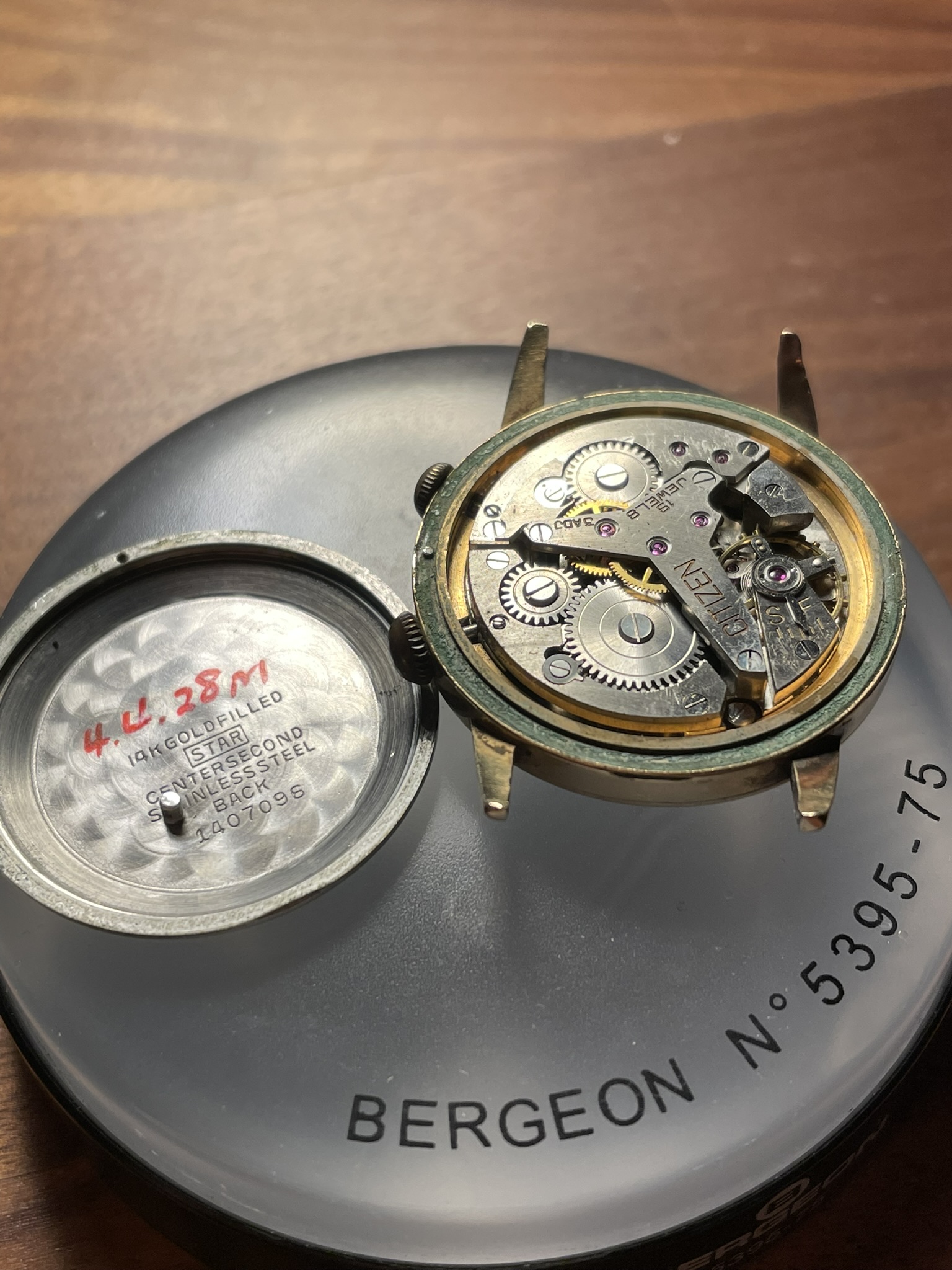

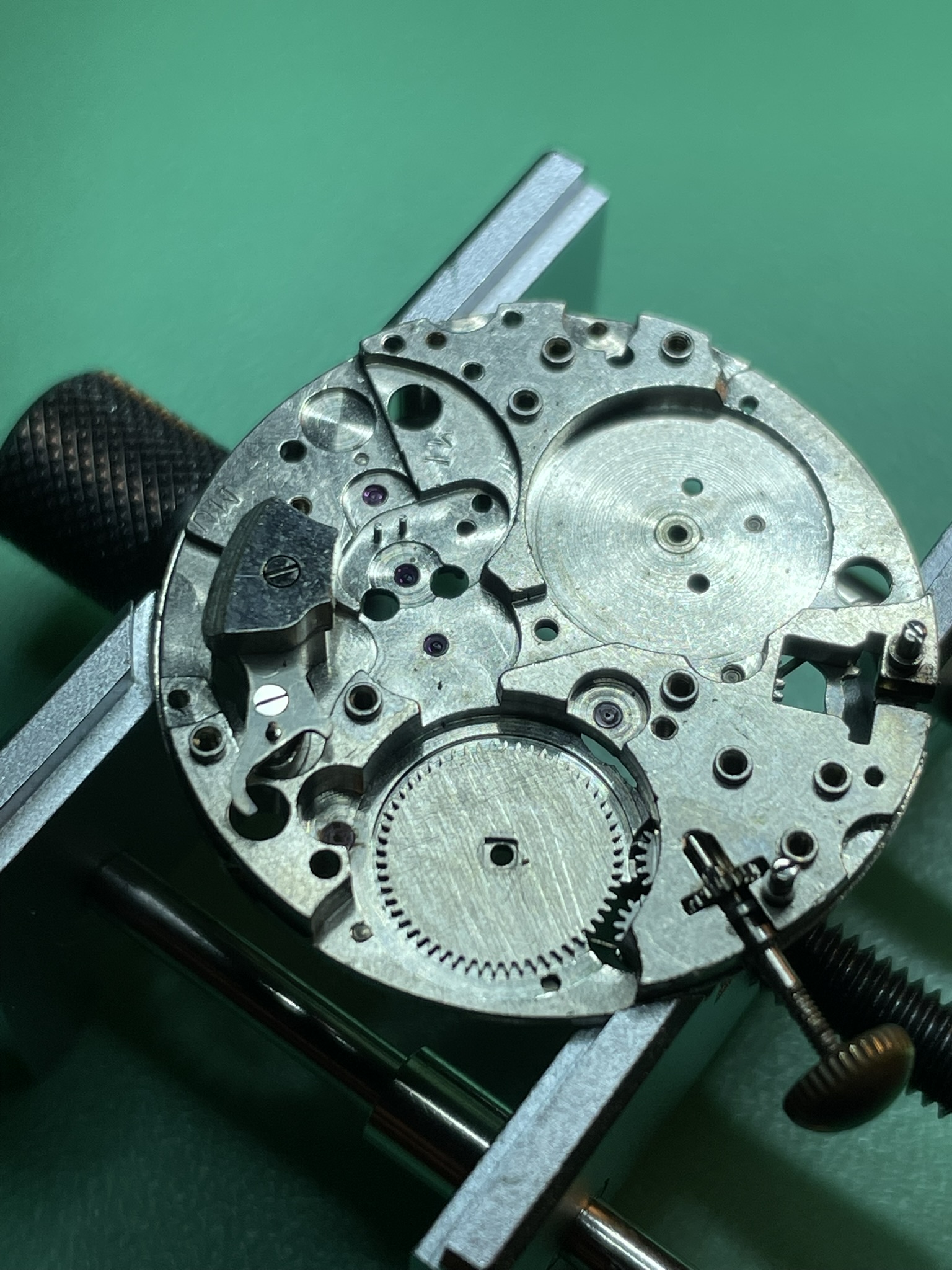

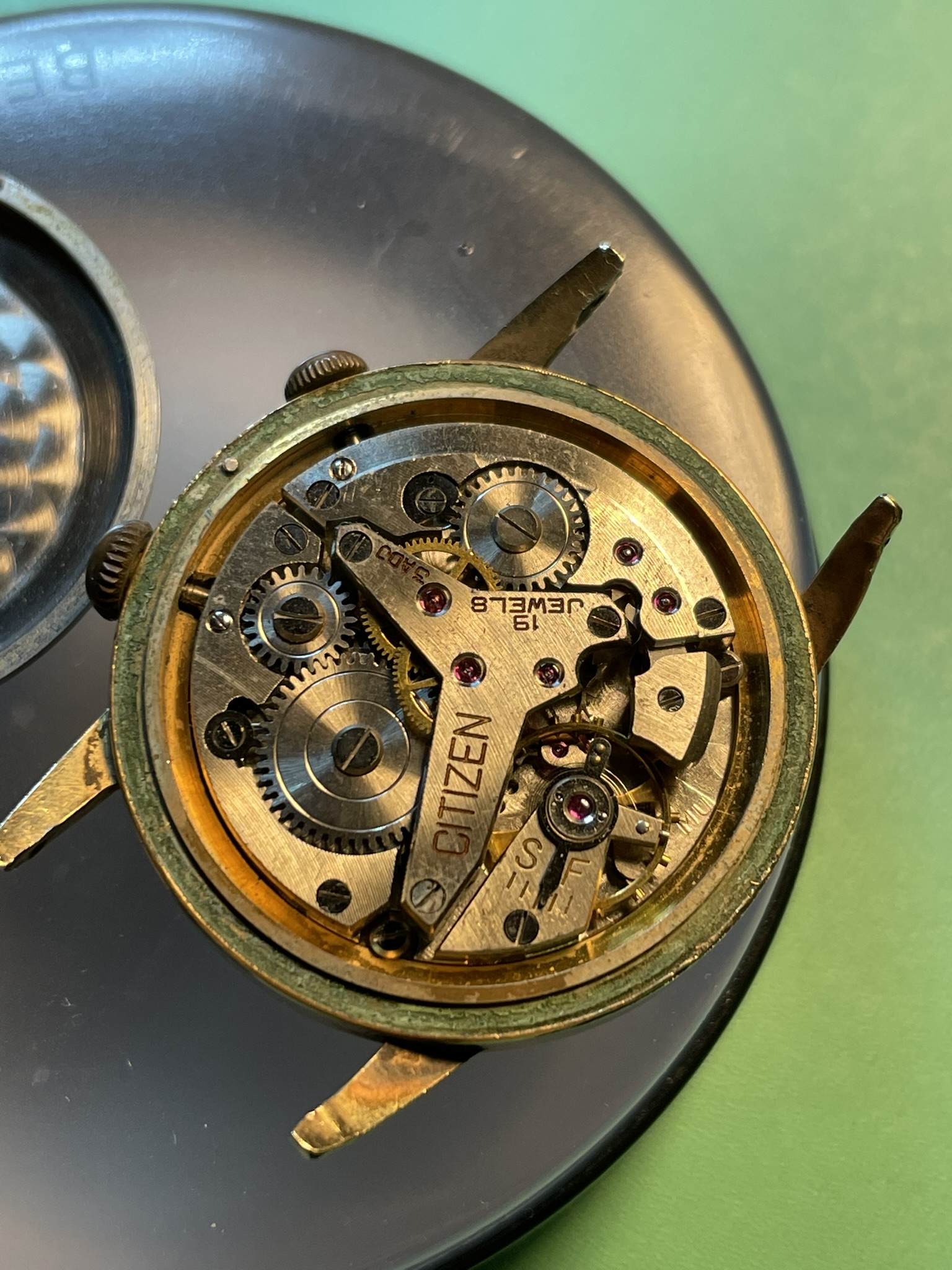

The caseback is a snap-fit. It will only fit in one orientation because the alarm hammer interfaces with a peg on the caseback. It's also a front-loader. This took me ages to figure out...

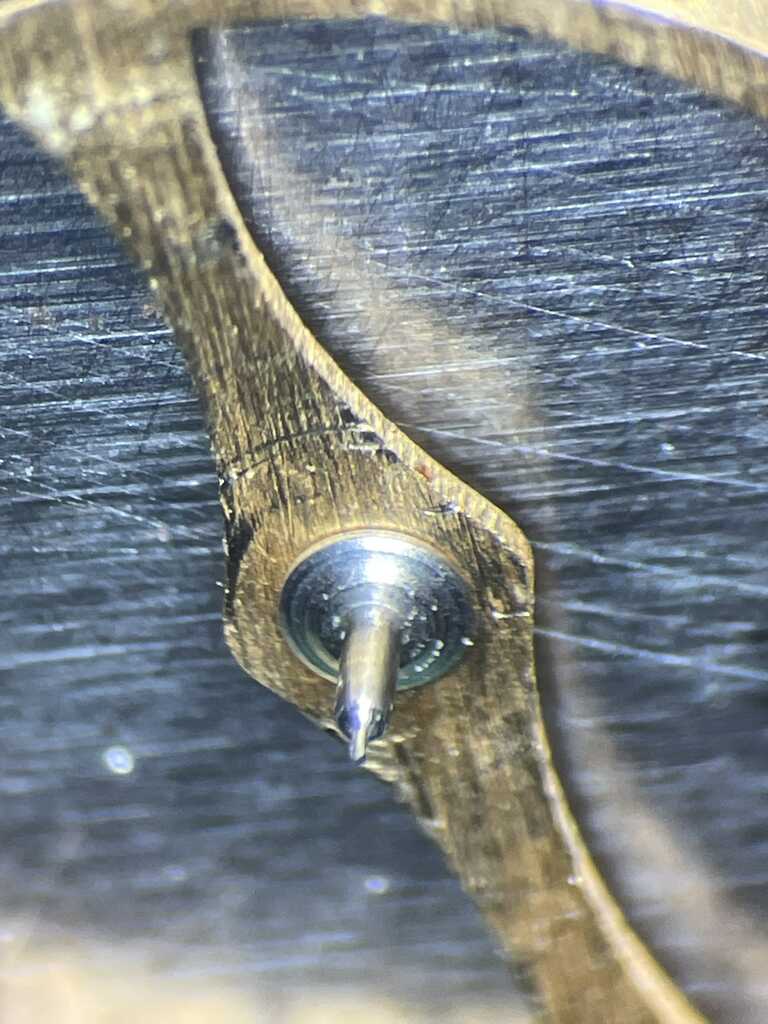

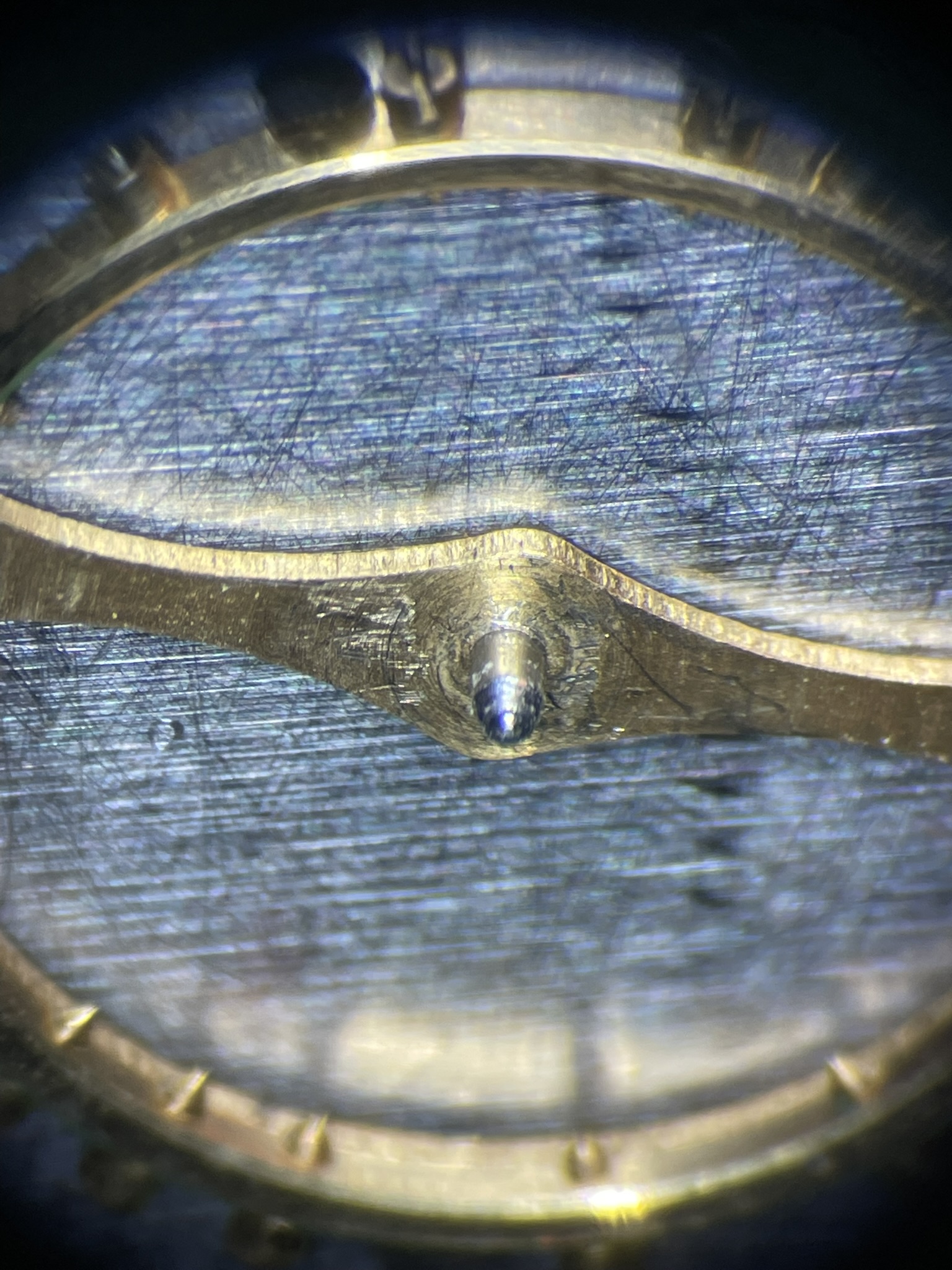

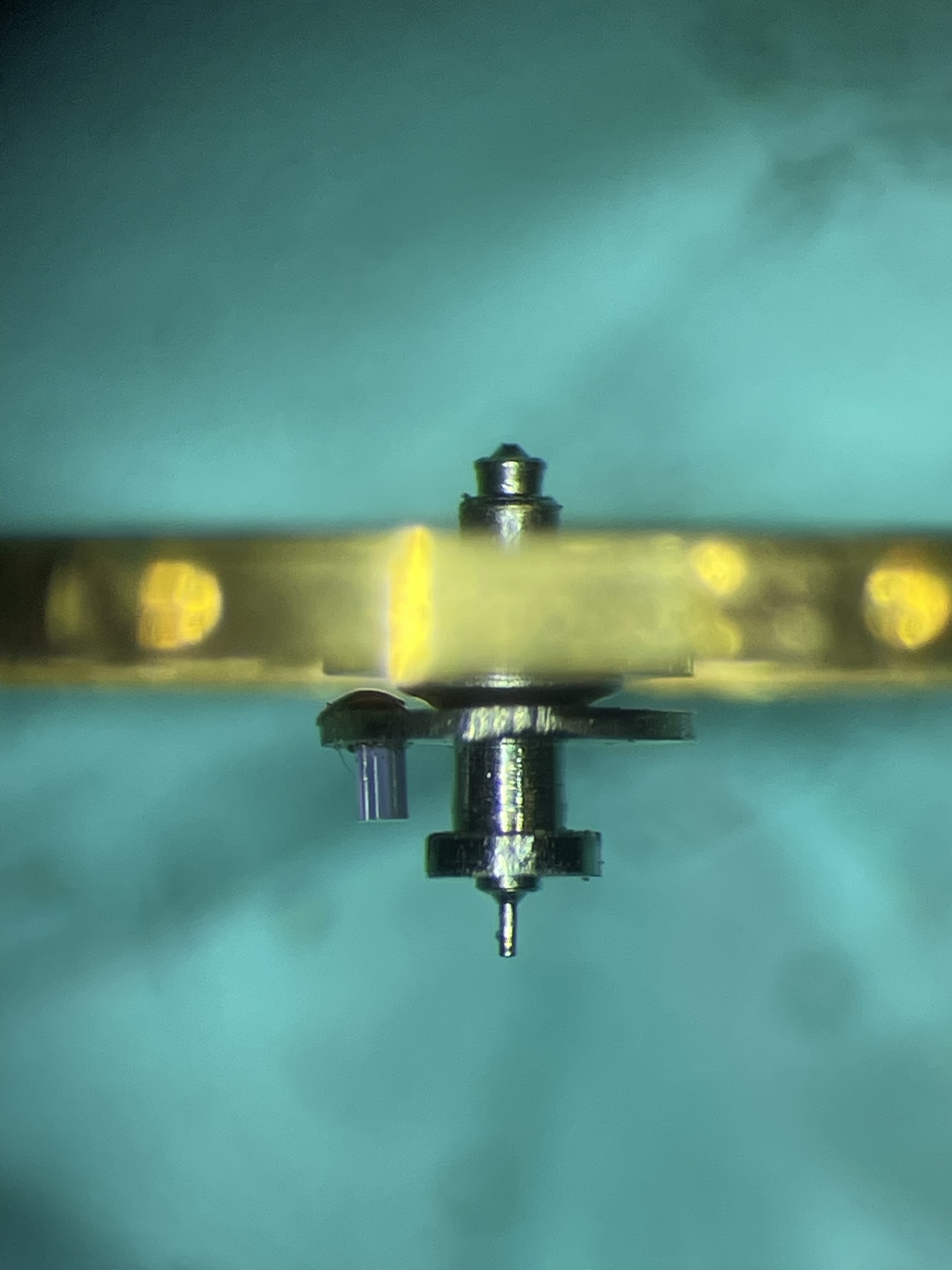

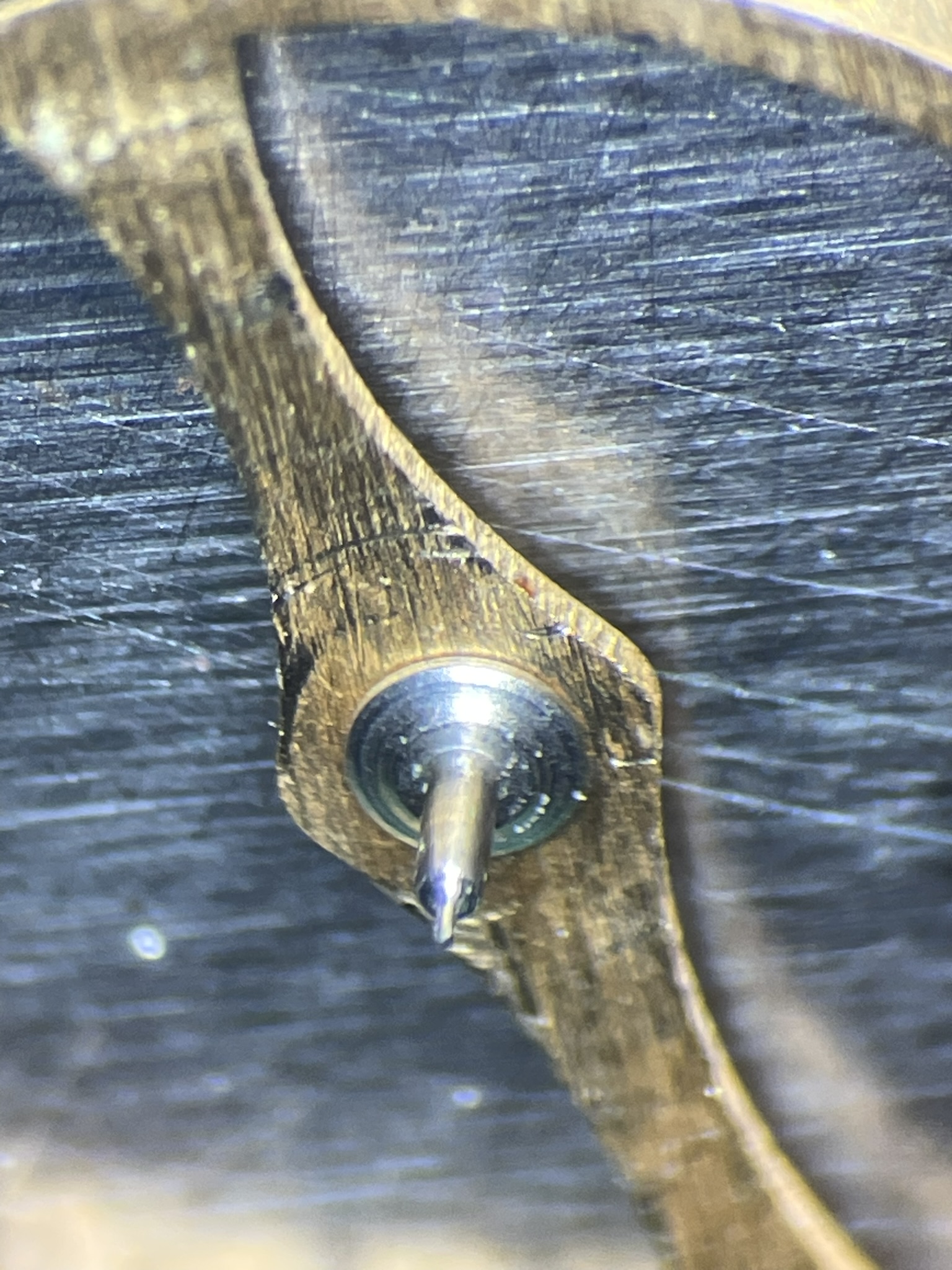

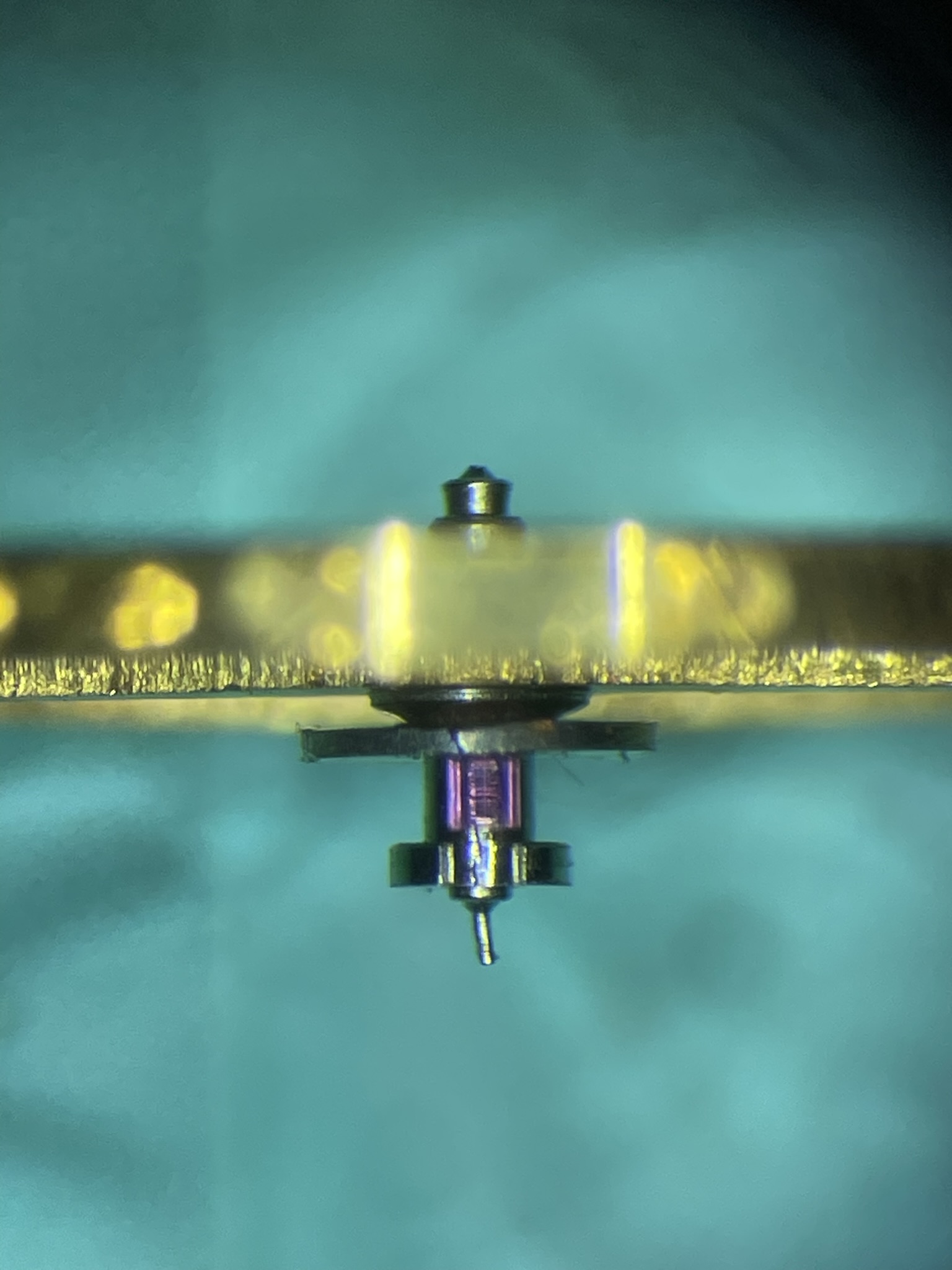

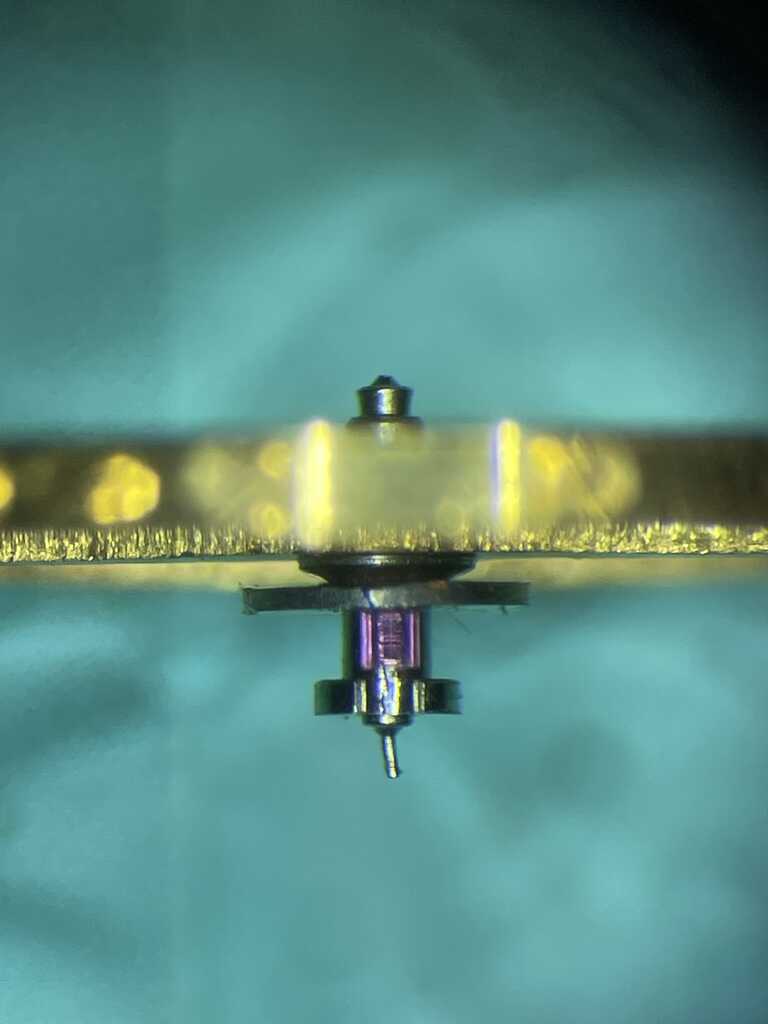

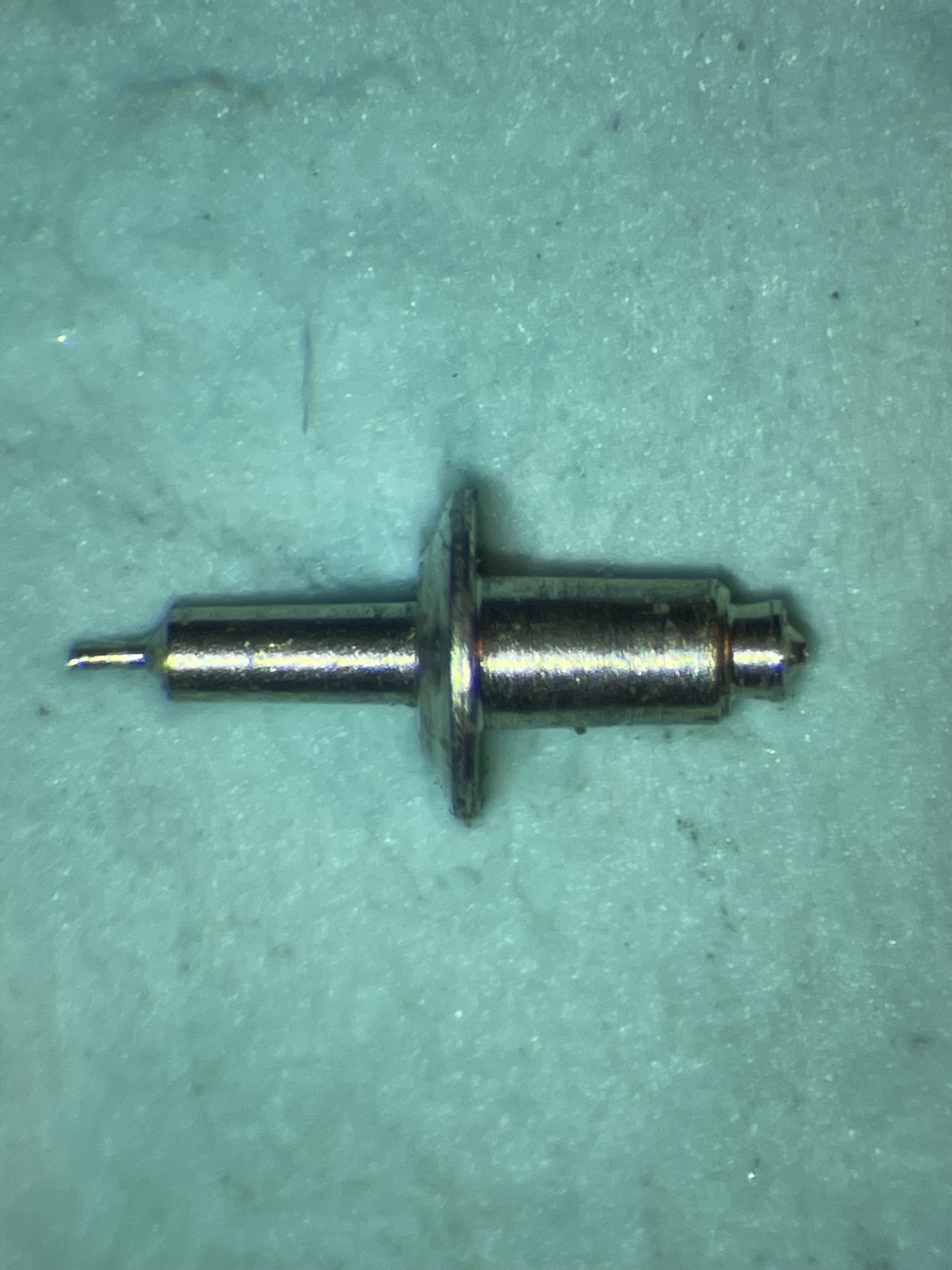

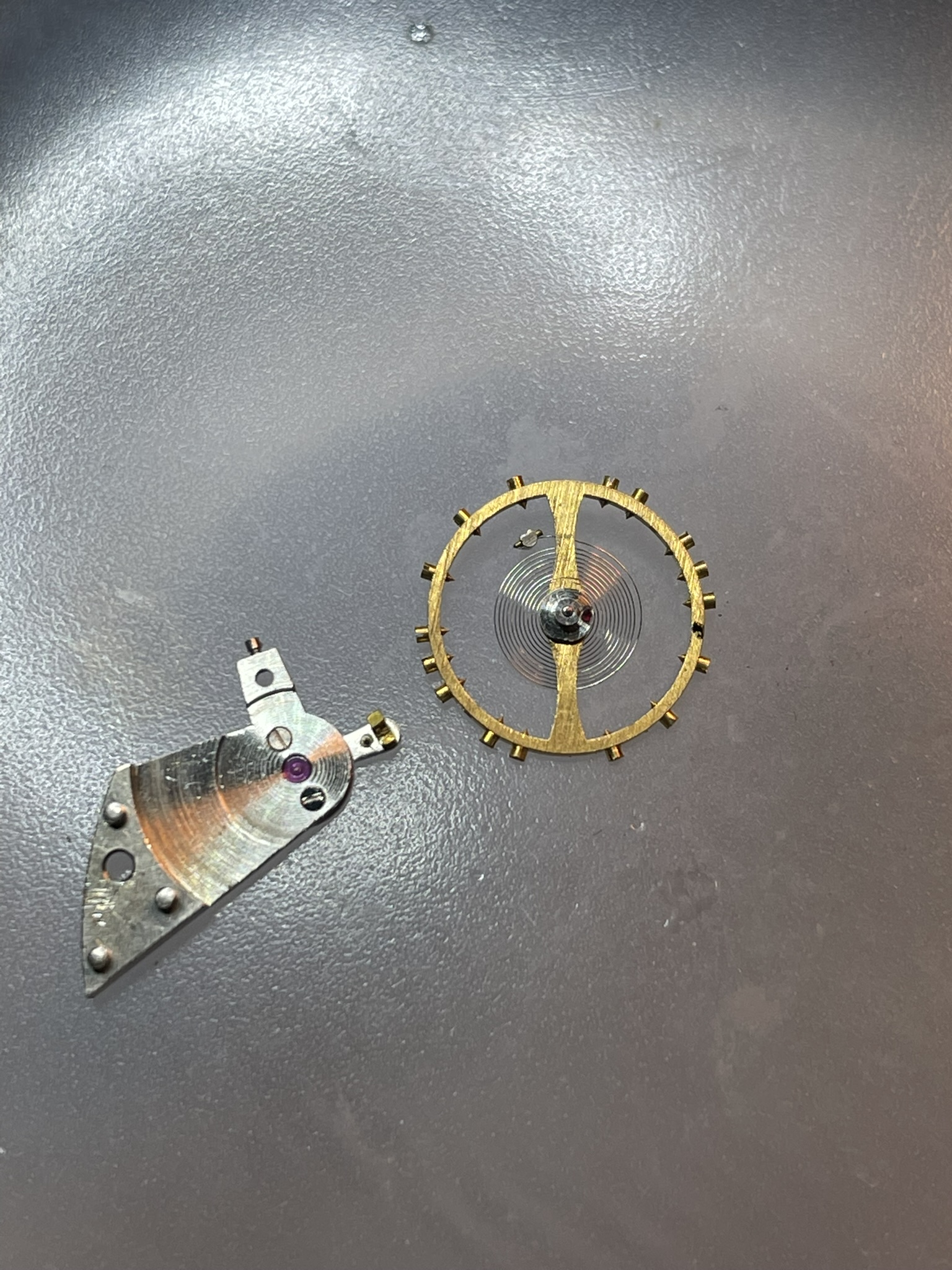

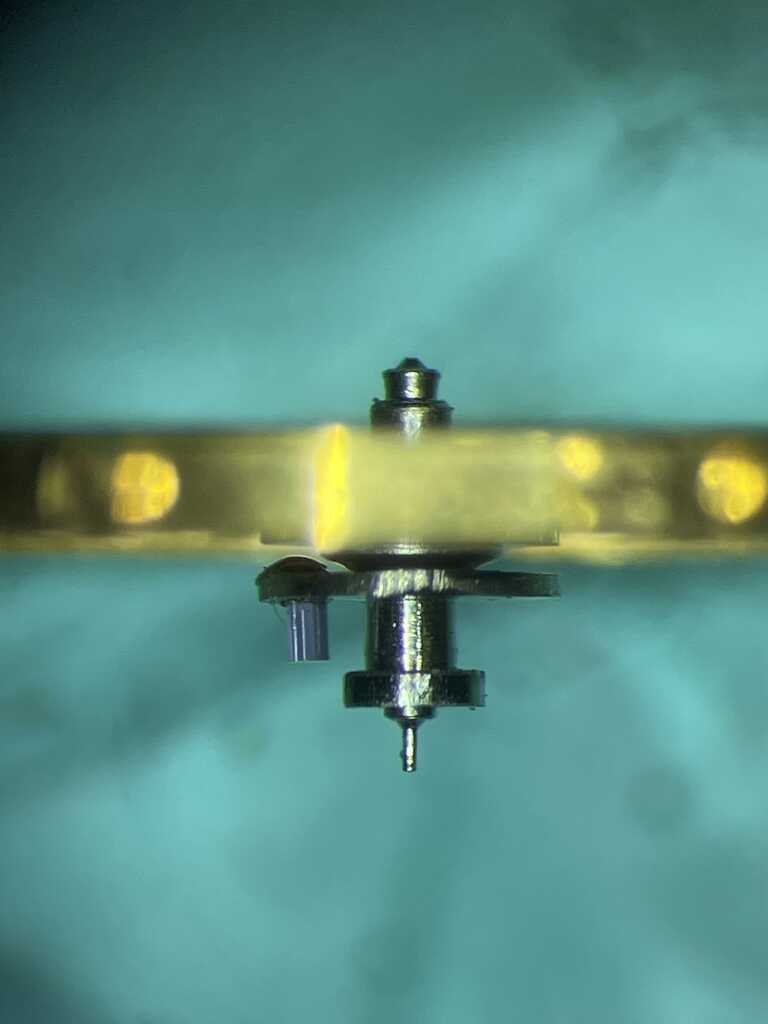

Detailed shots from balance work. Here's the broken pivot.

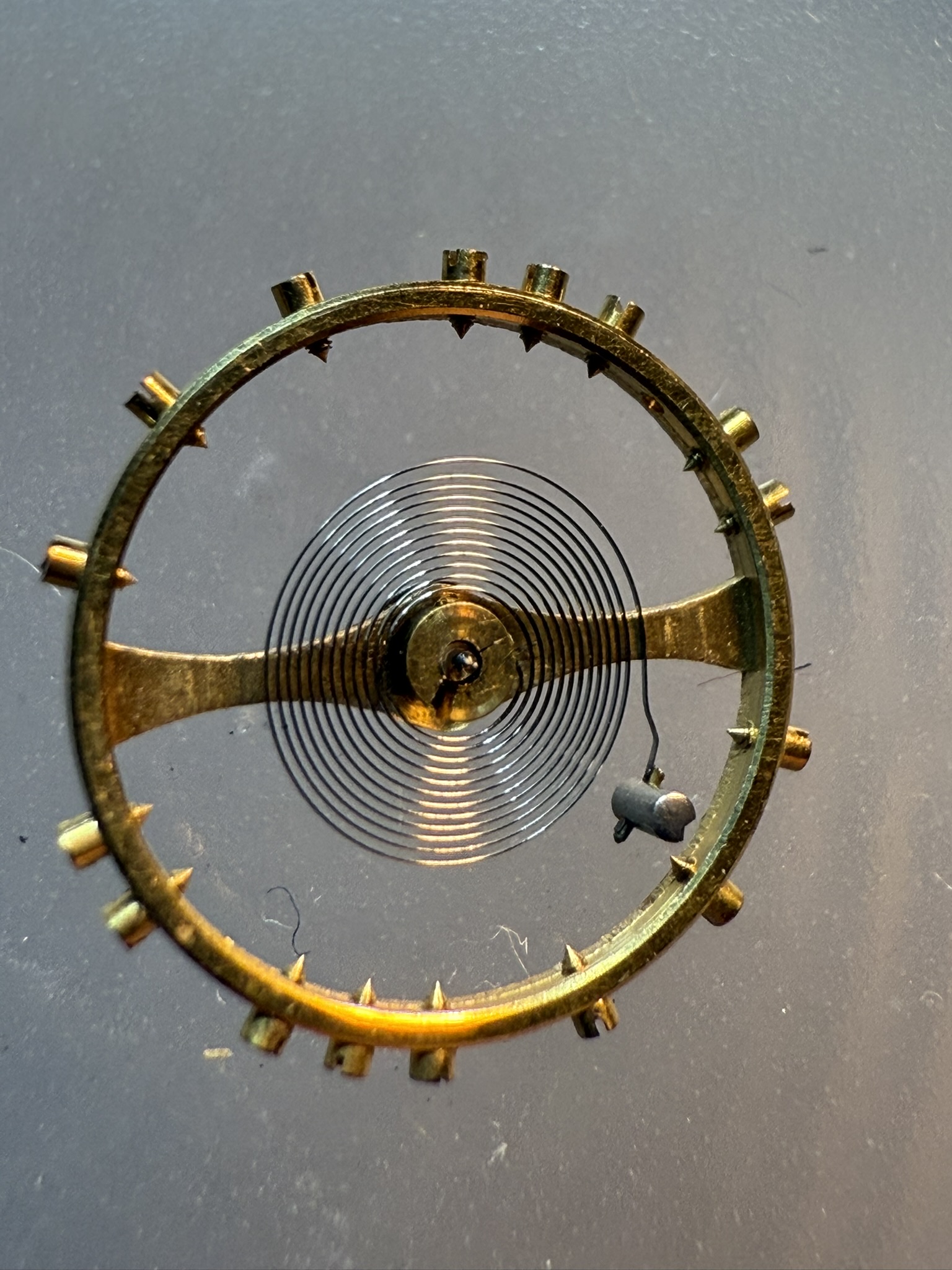

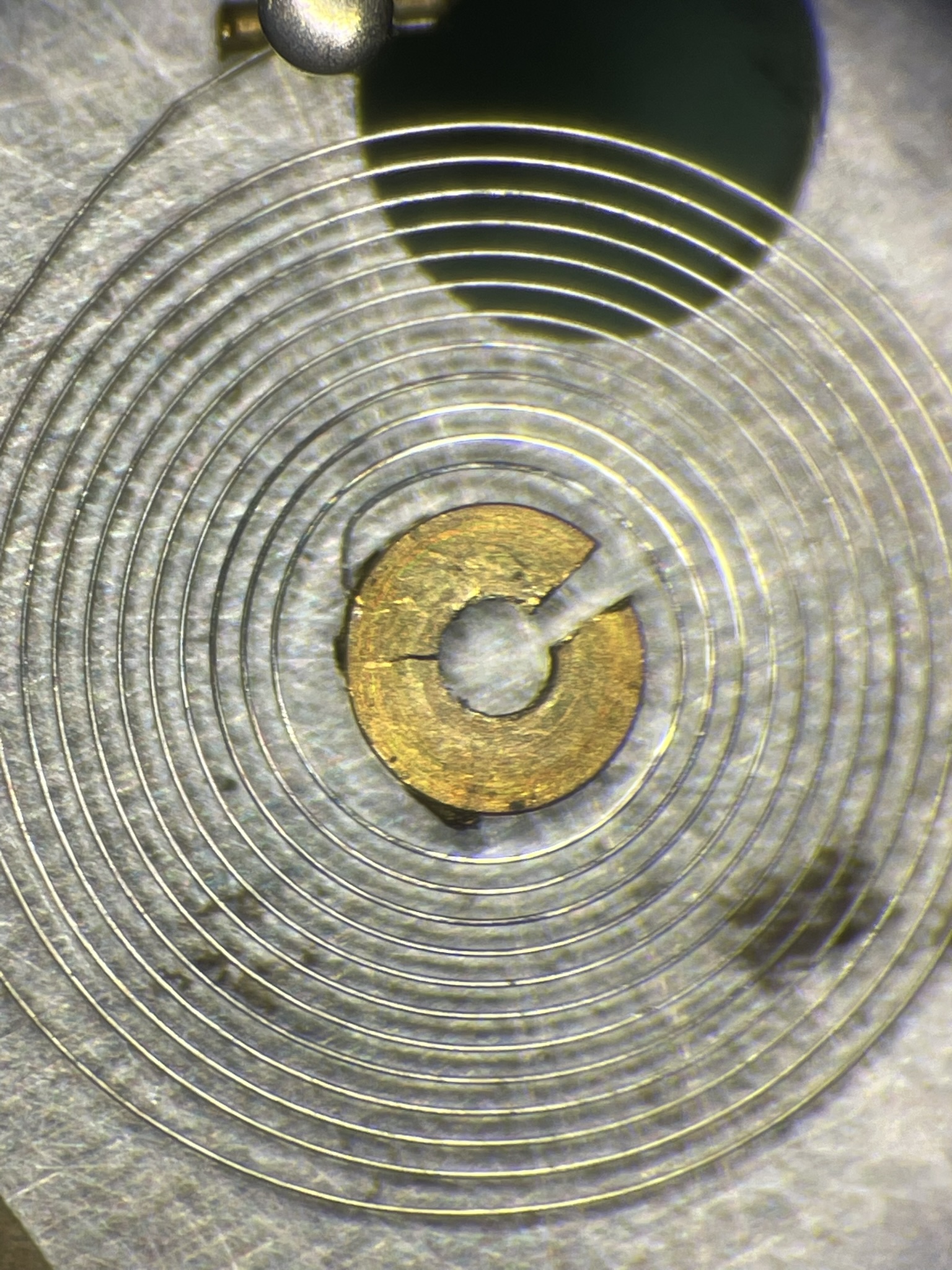

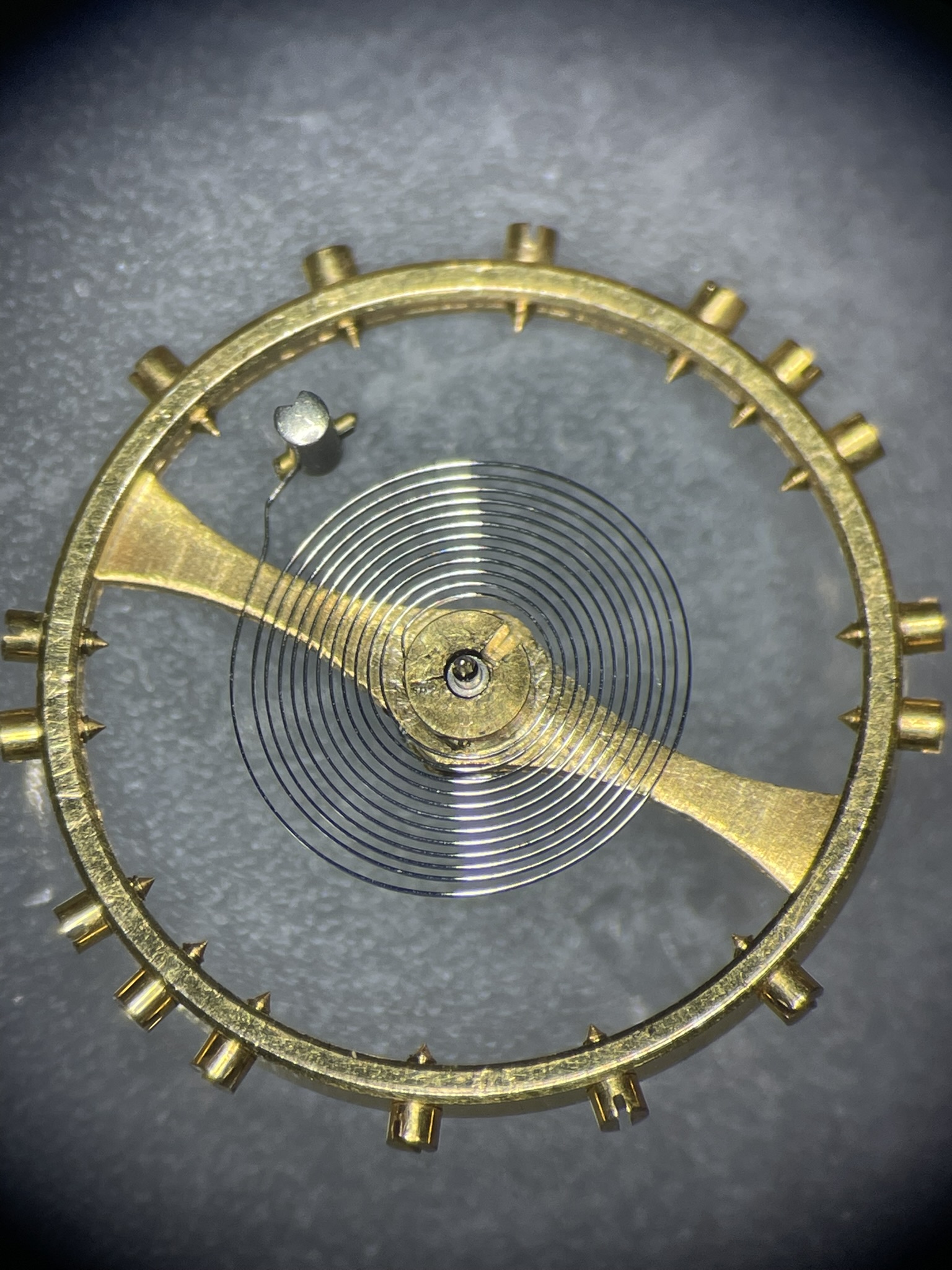

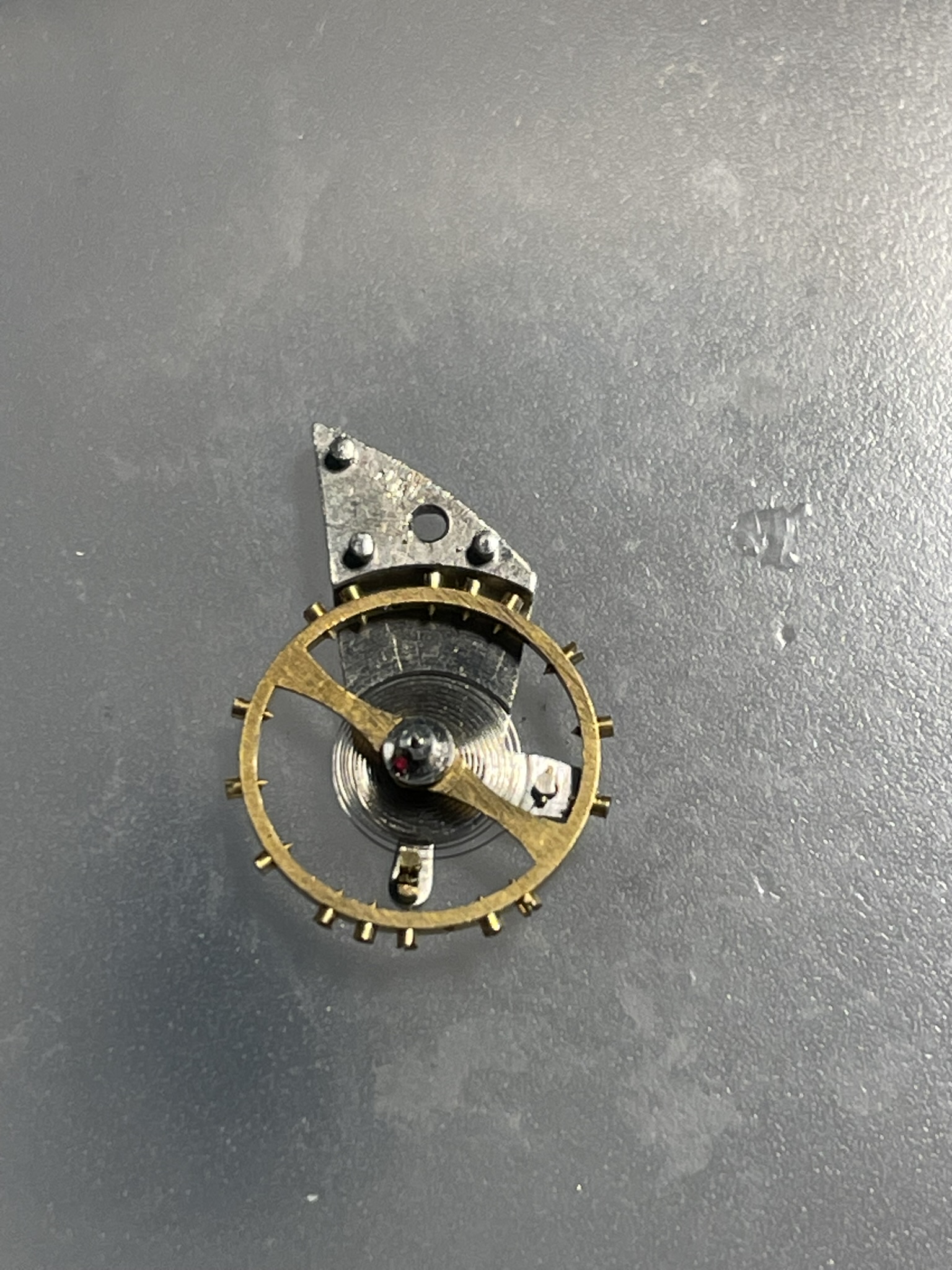

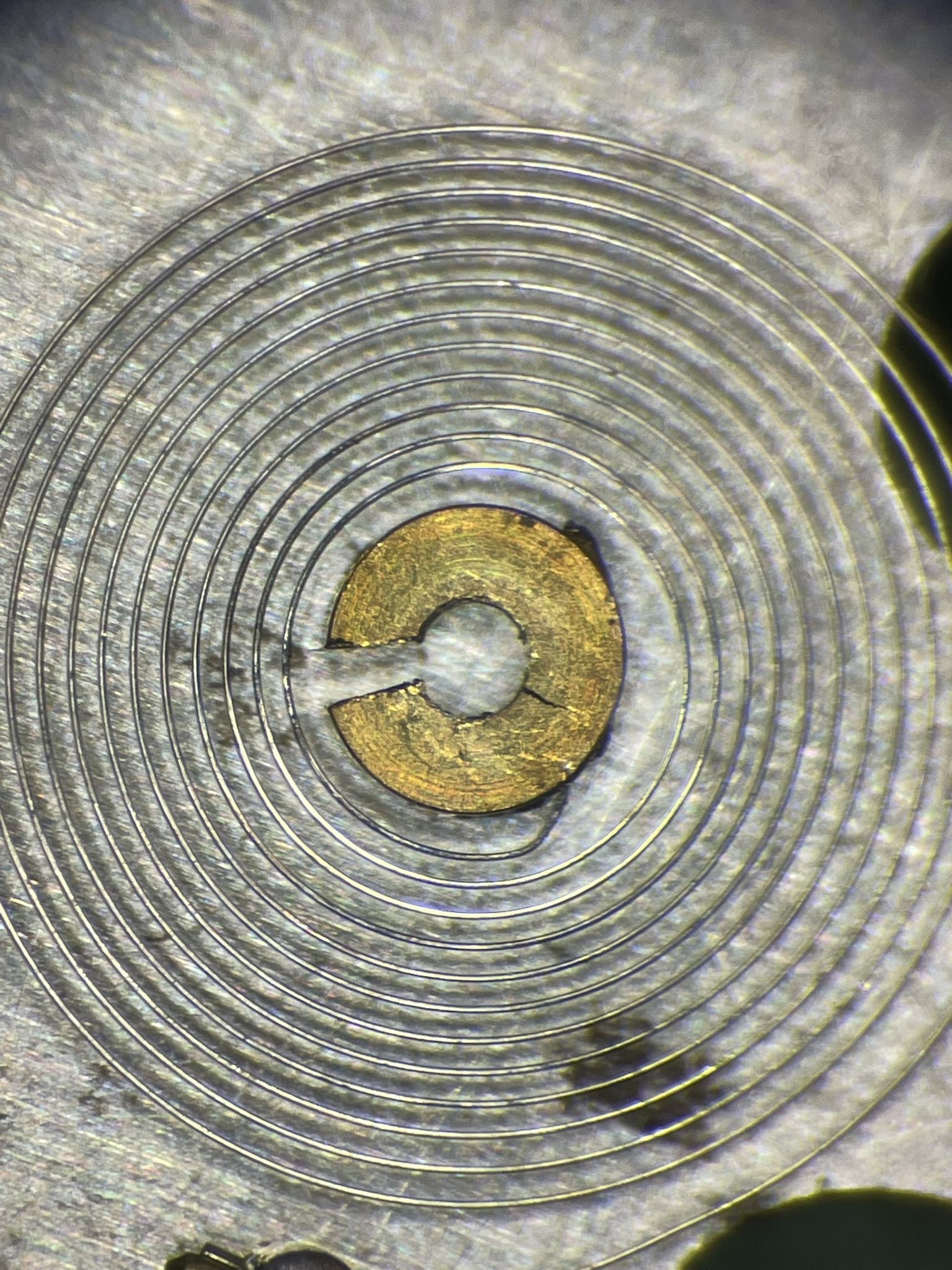

Unfortunately the hairspring collet has a crach running through it. Since I can't source a new collet, I opted to glue it onto the new staff. If I didn't, it would work loose.

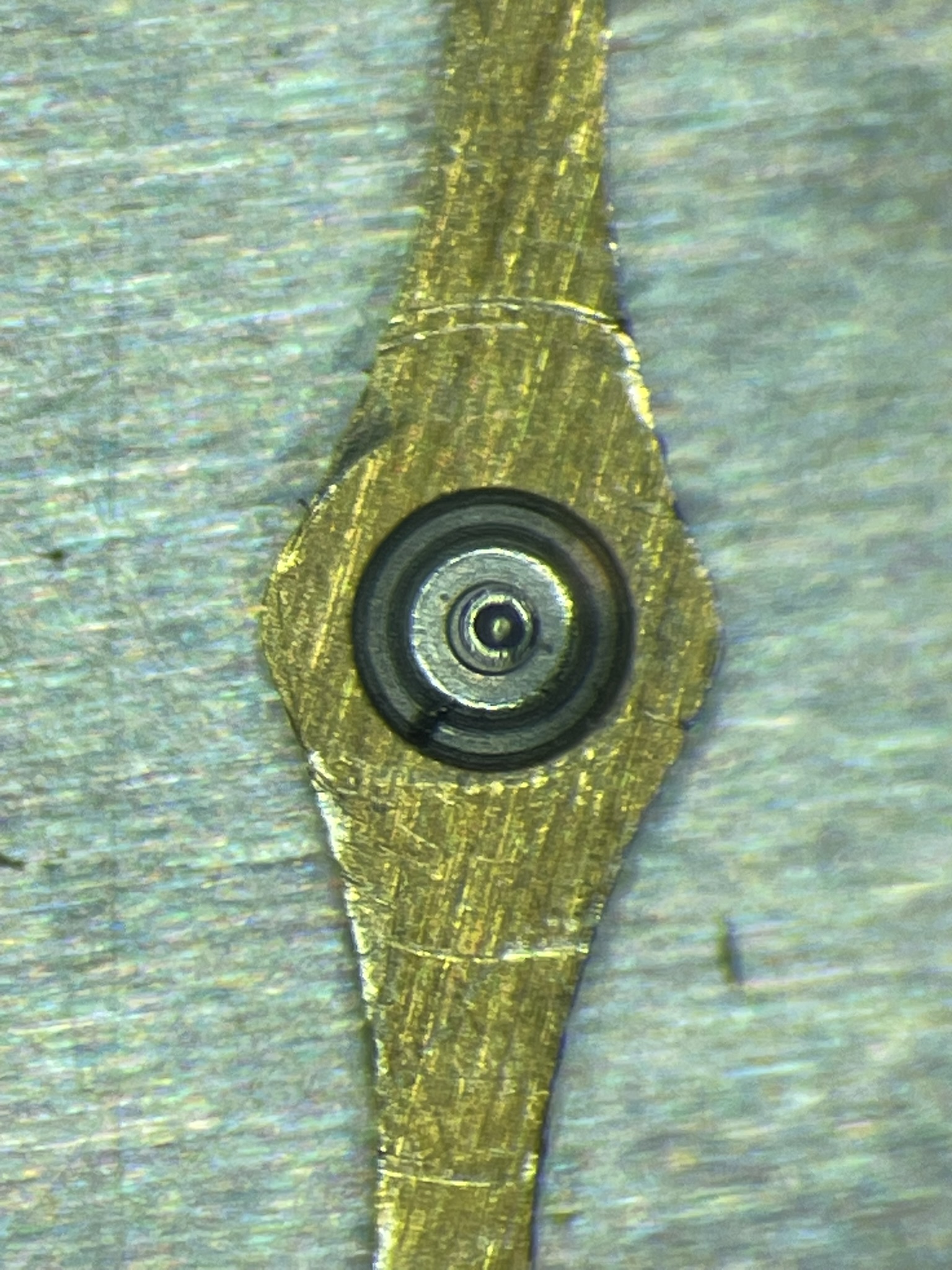

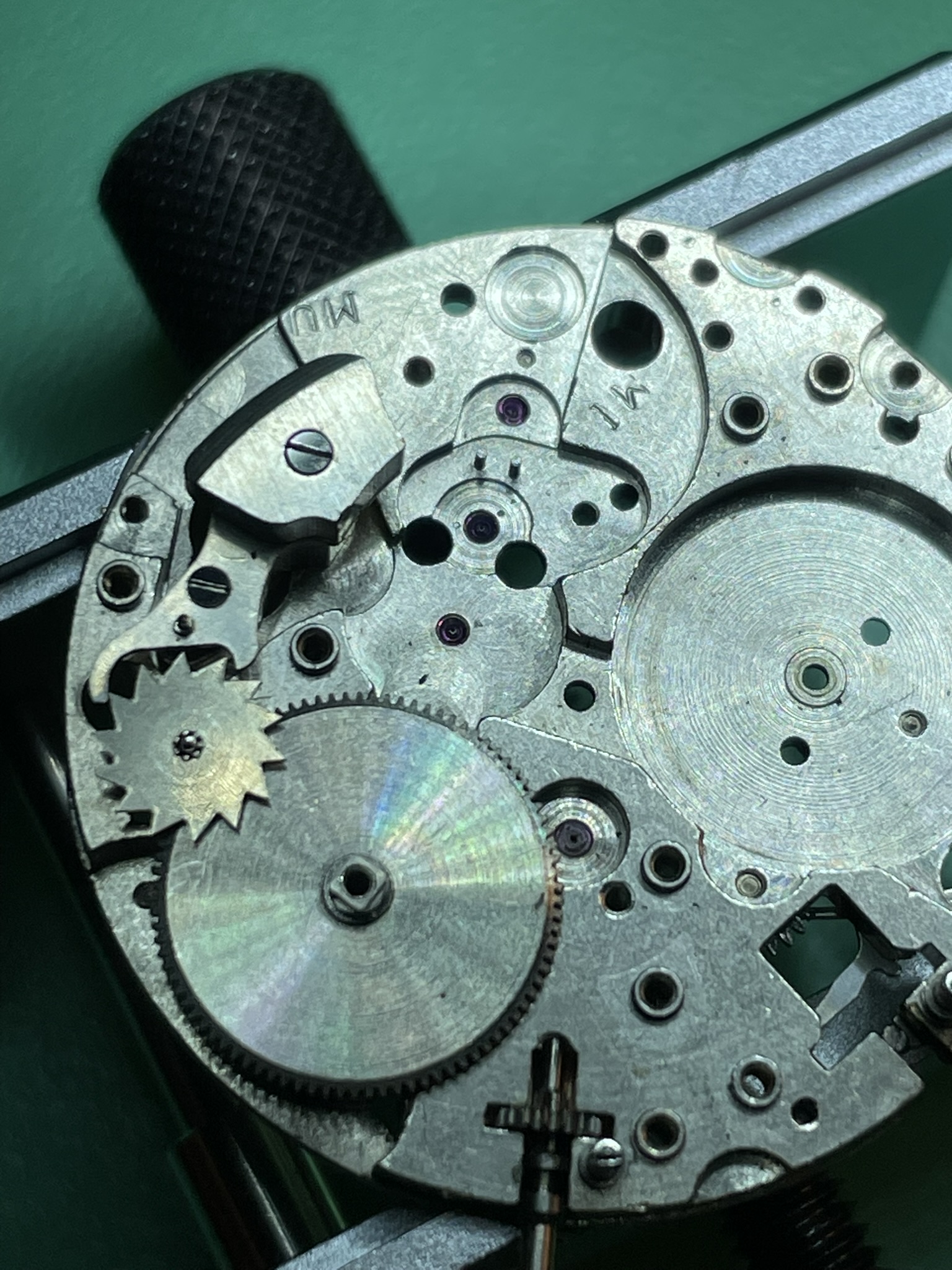

The center wheel jewels are cracked. I'm lacking photos, but I plan to revisit this watch when I have a jewelling tool.

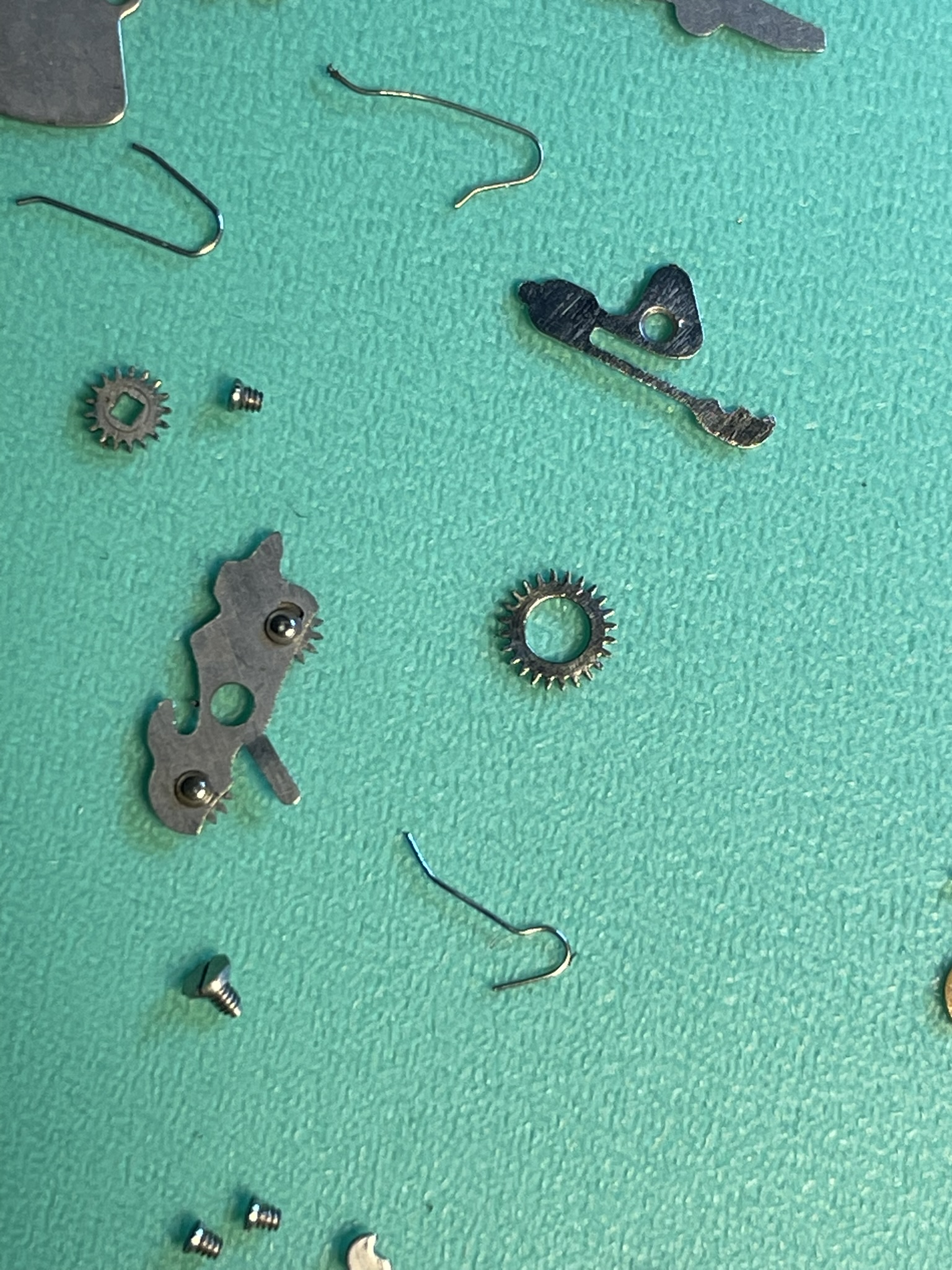

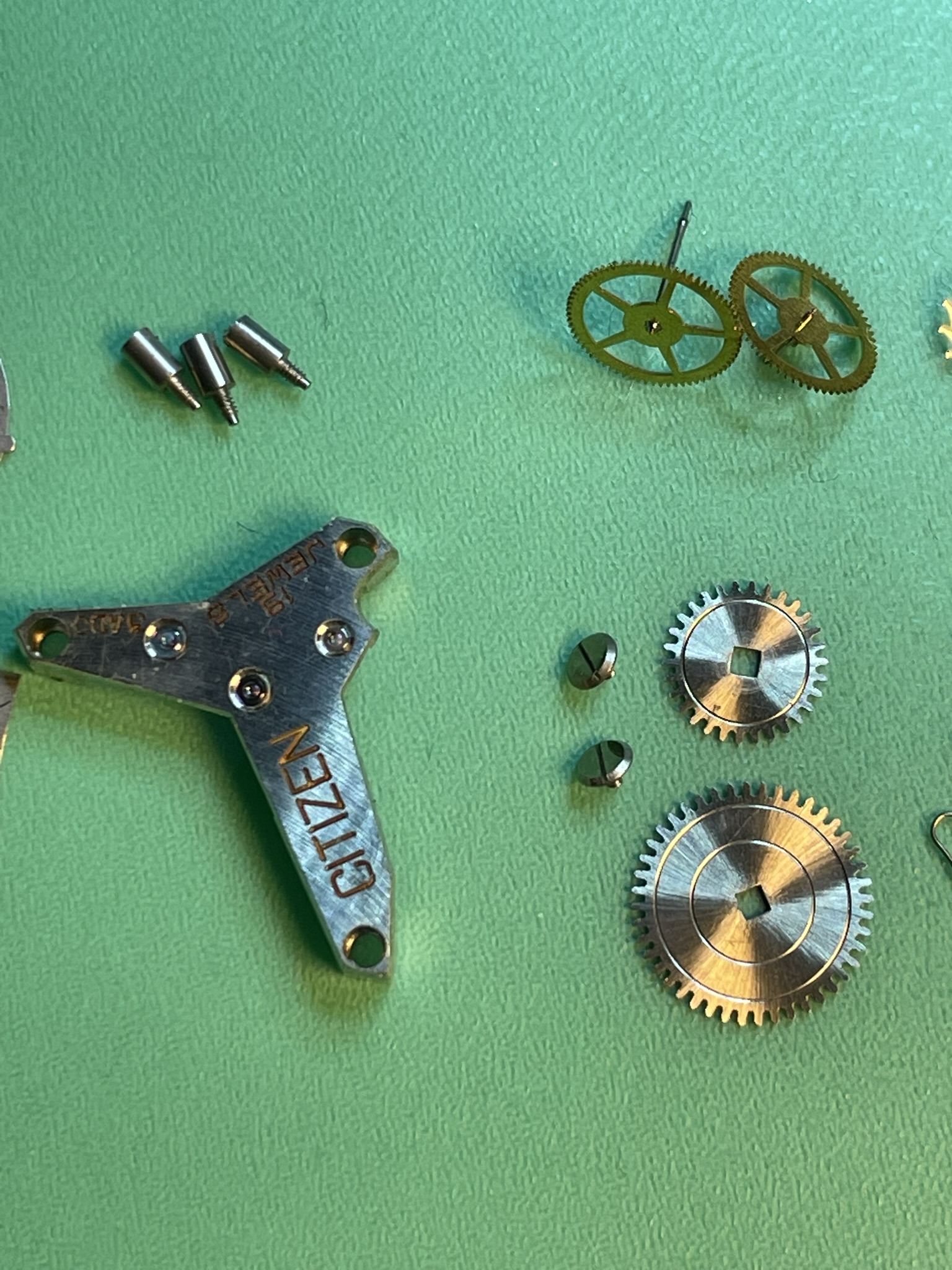

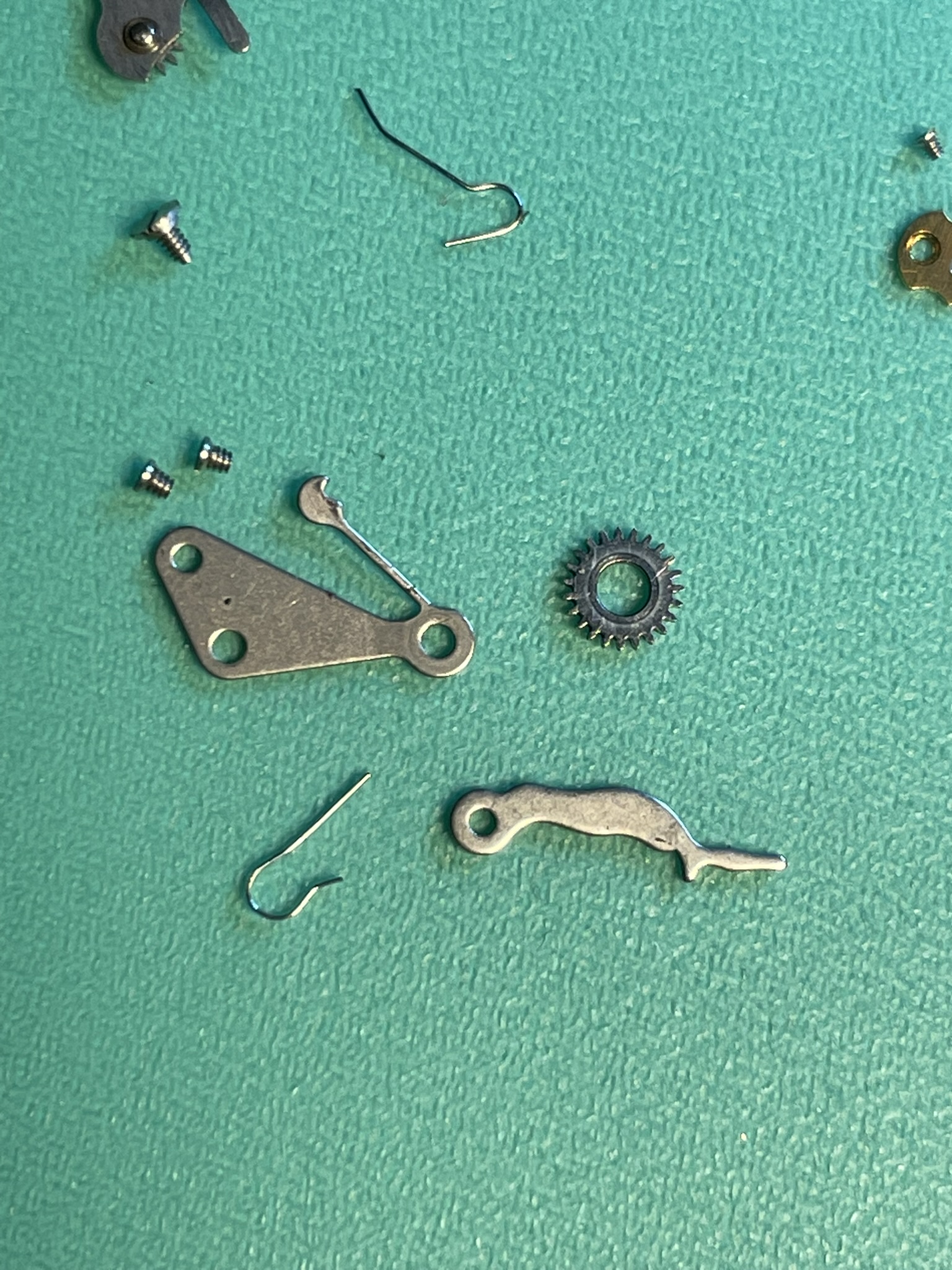

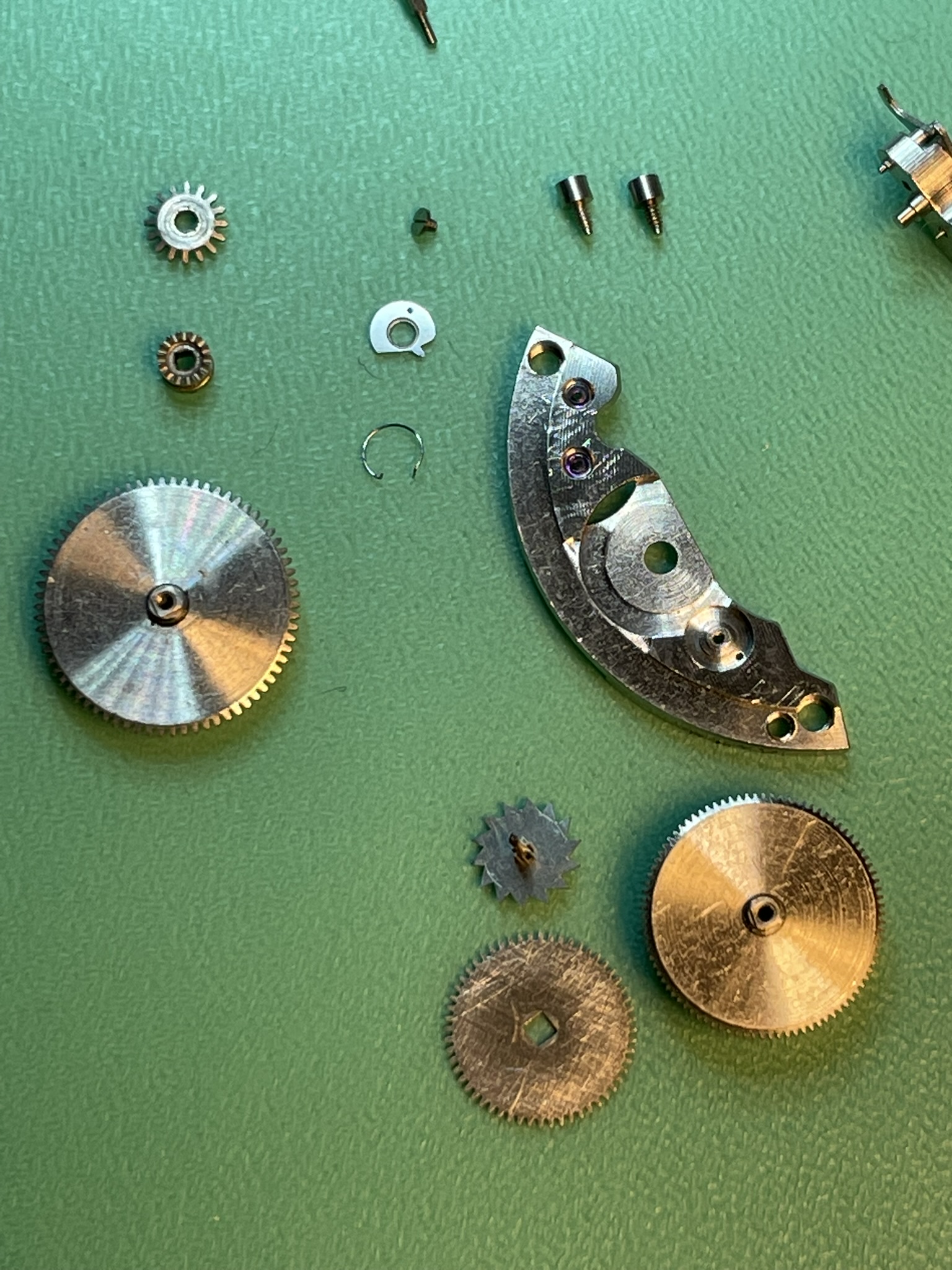

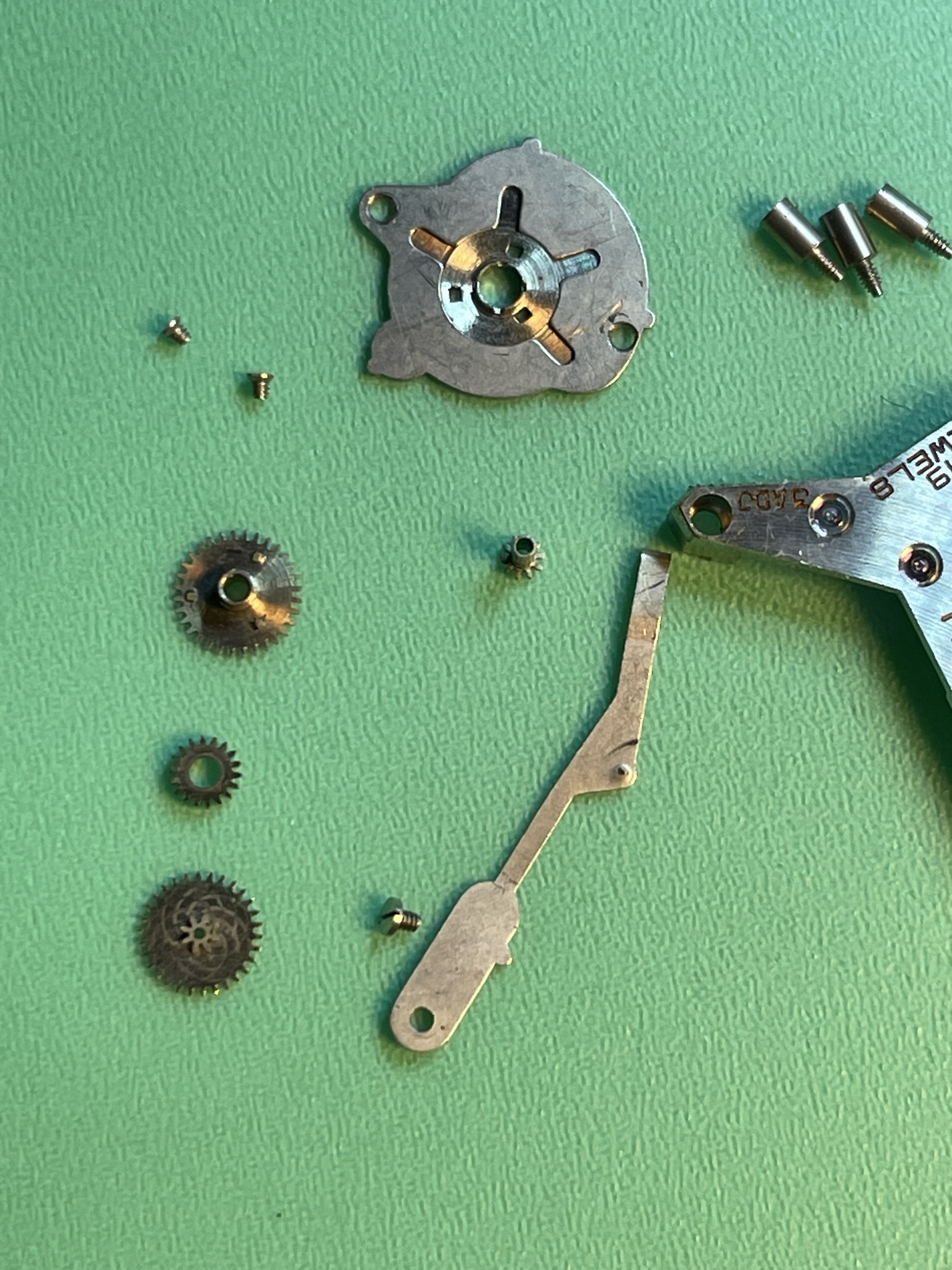

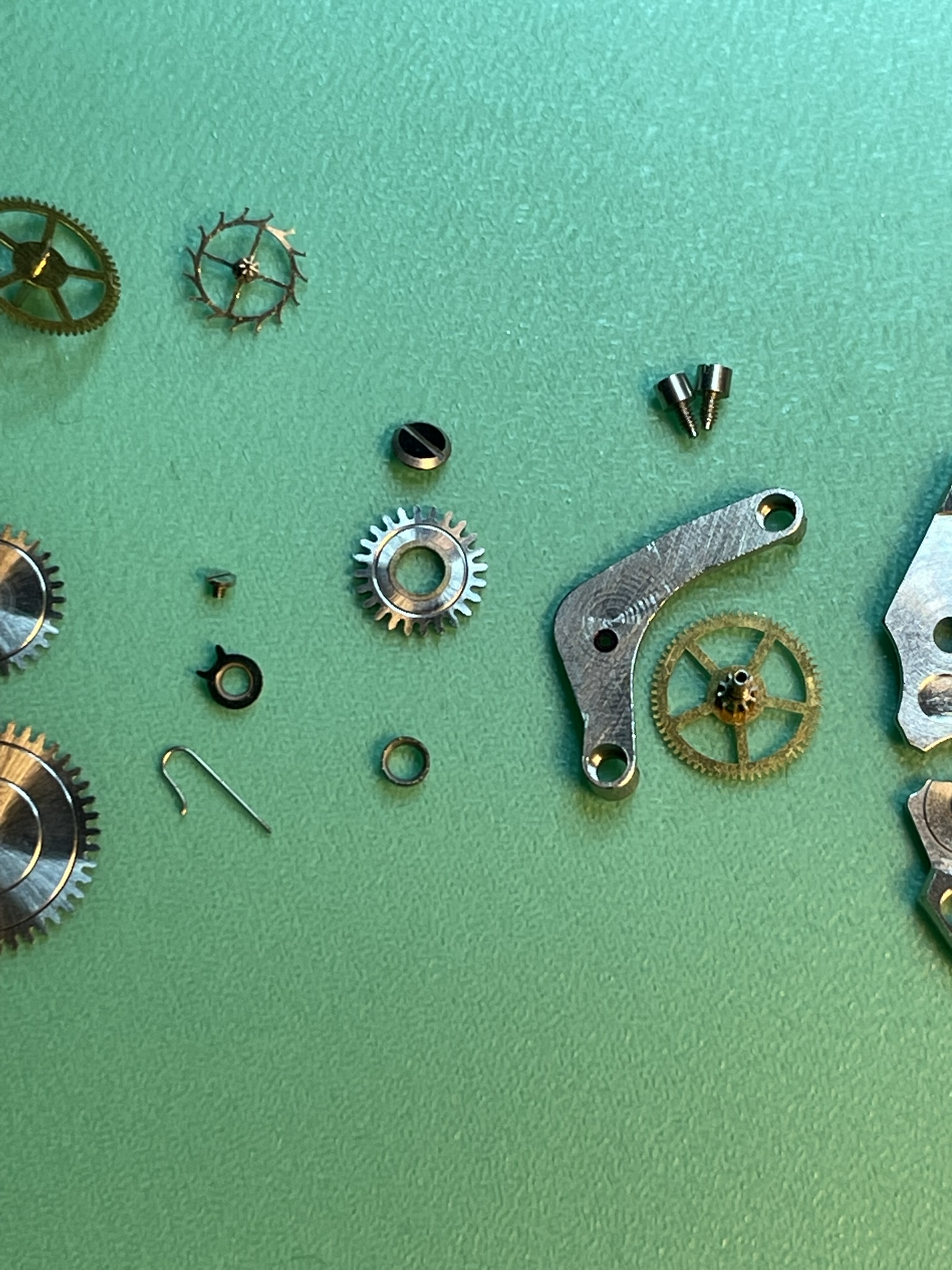

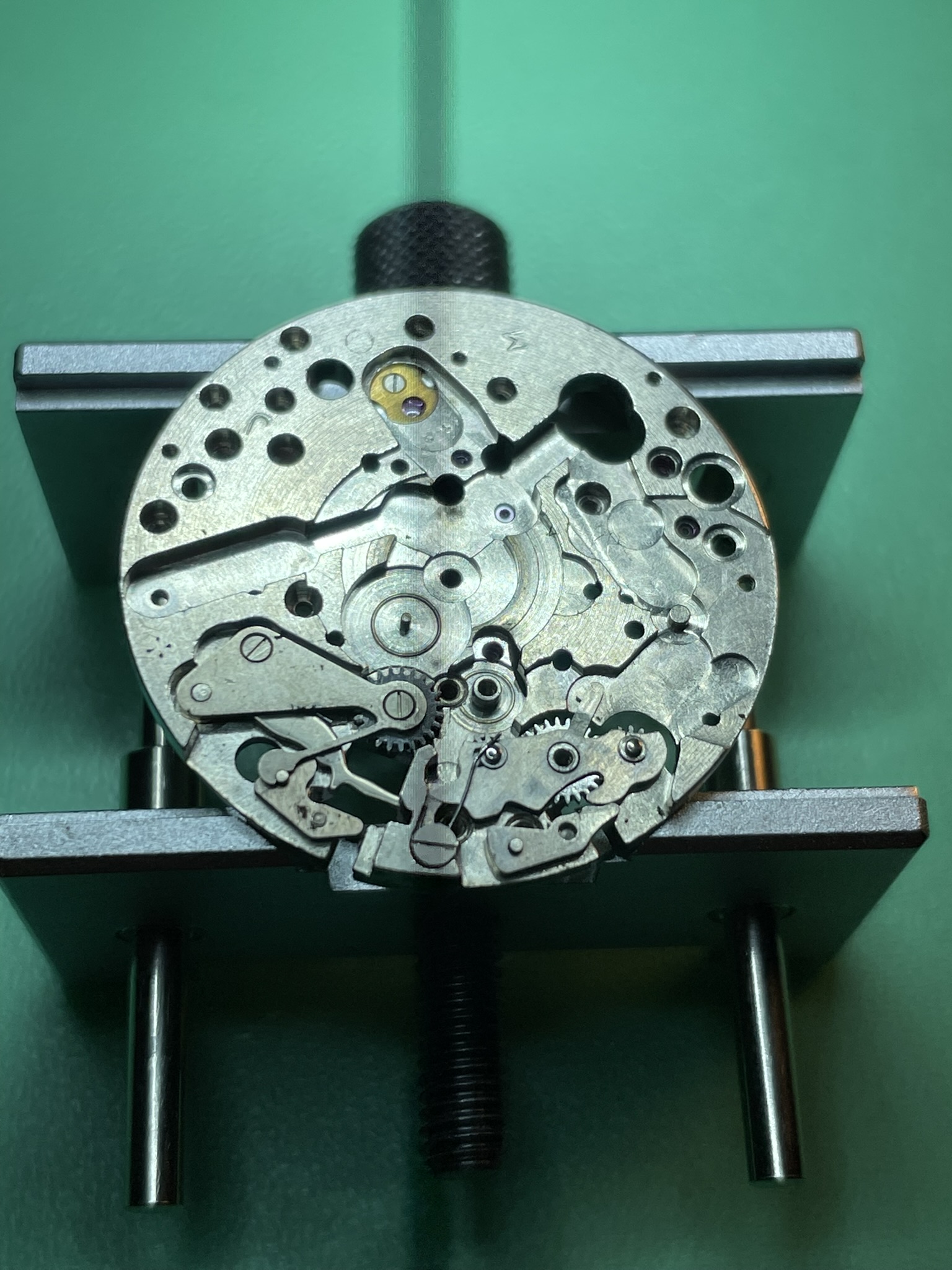

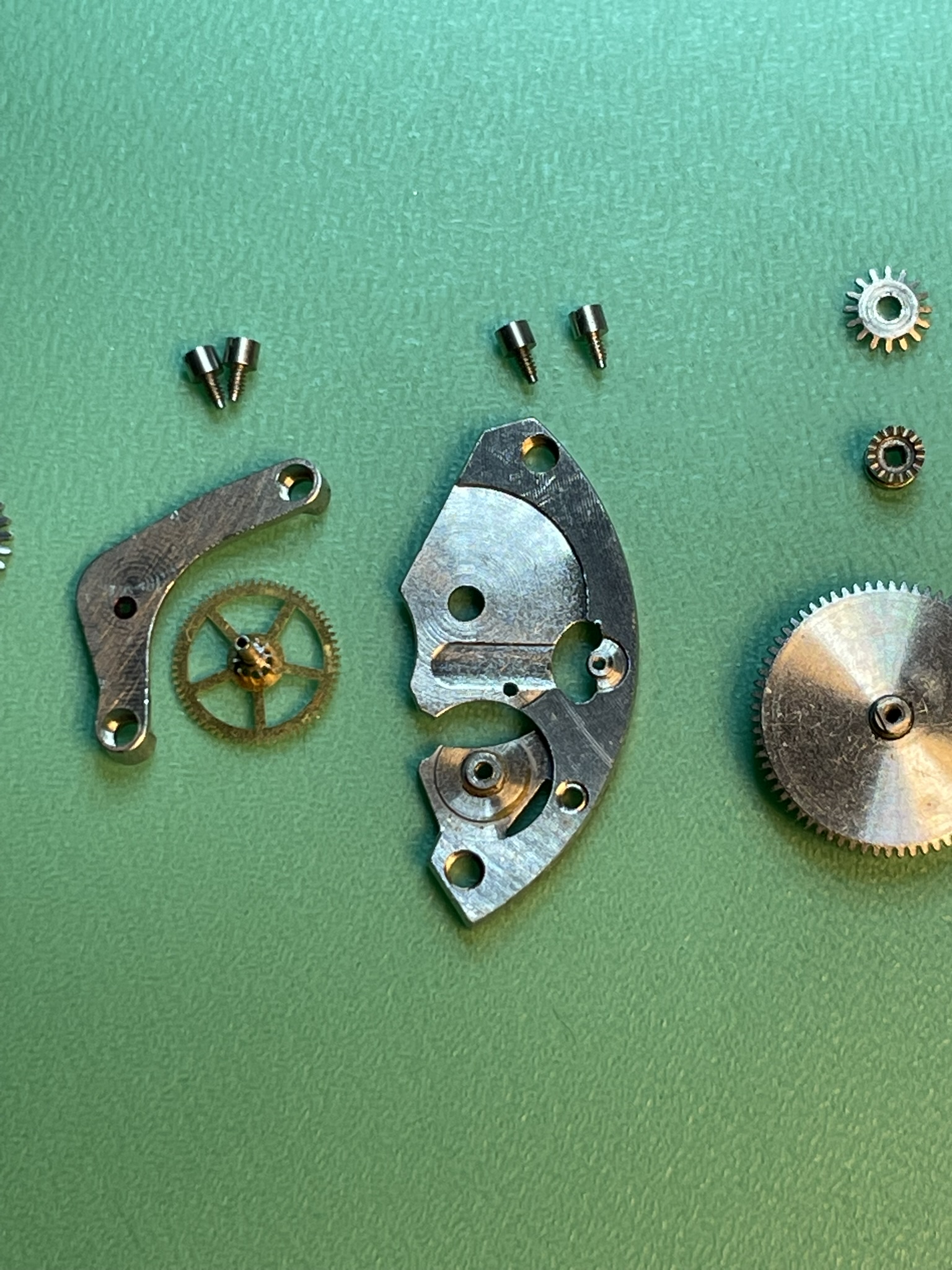

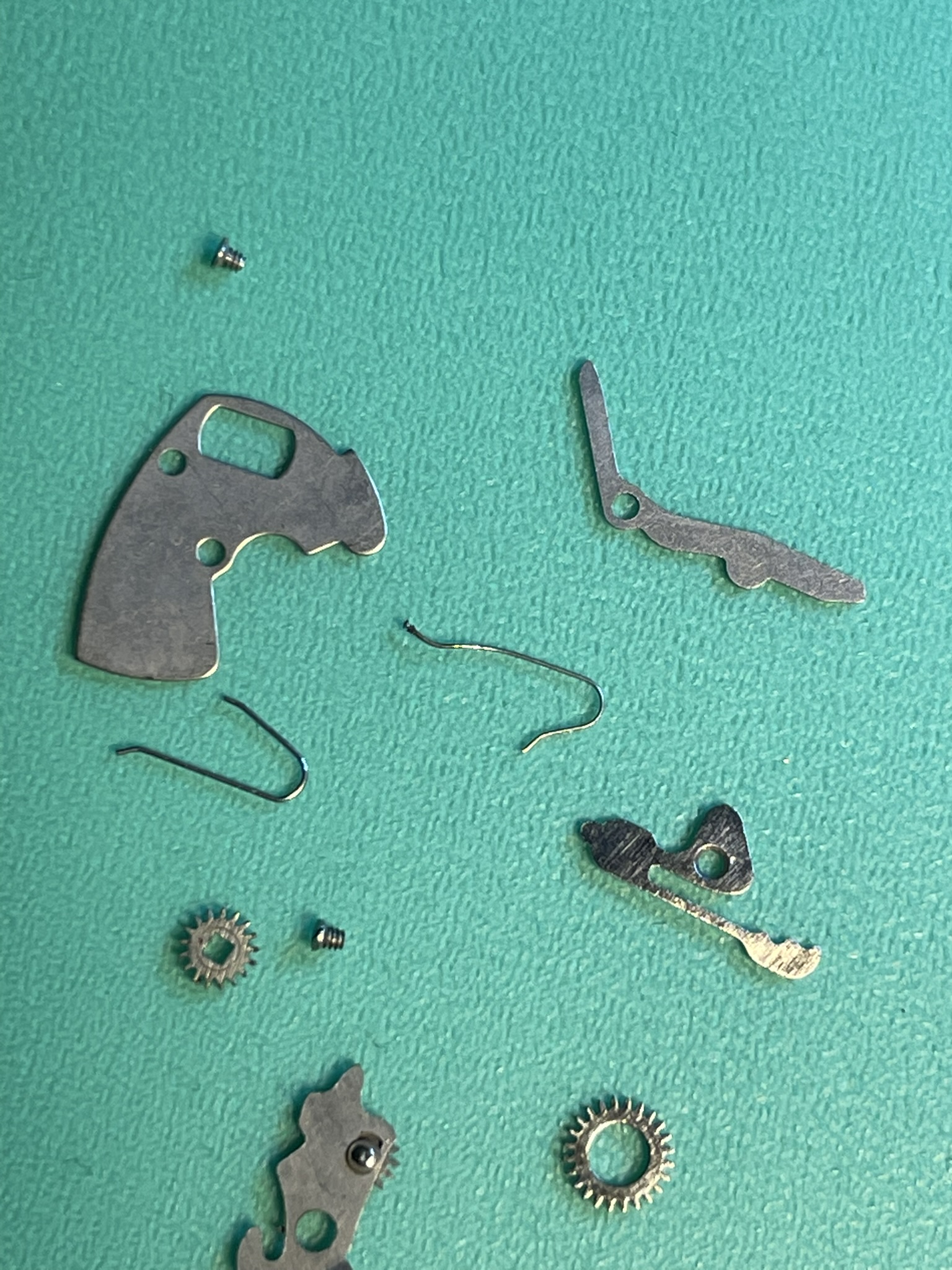

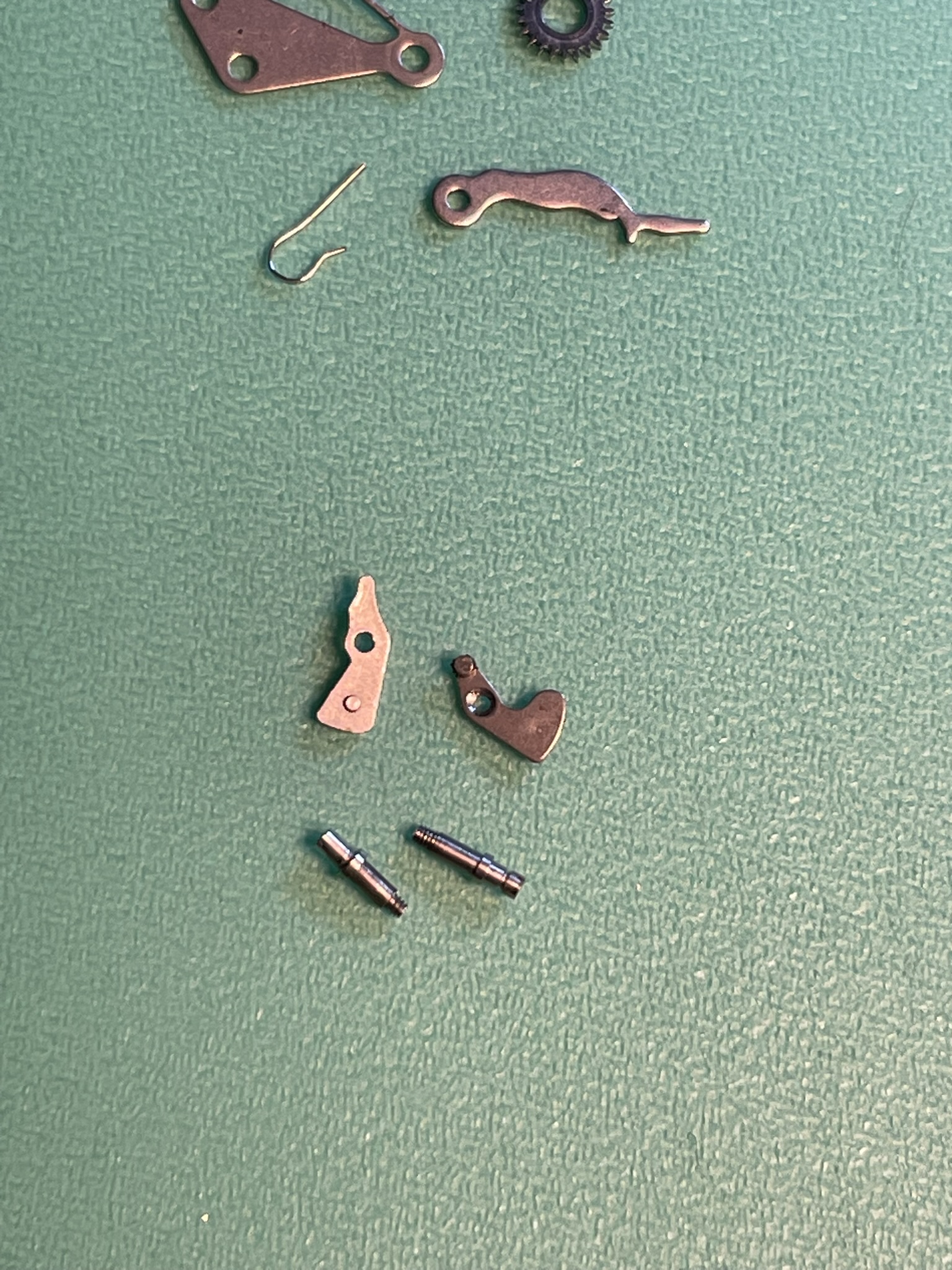

Component overview

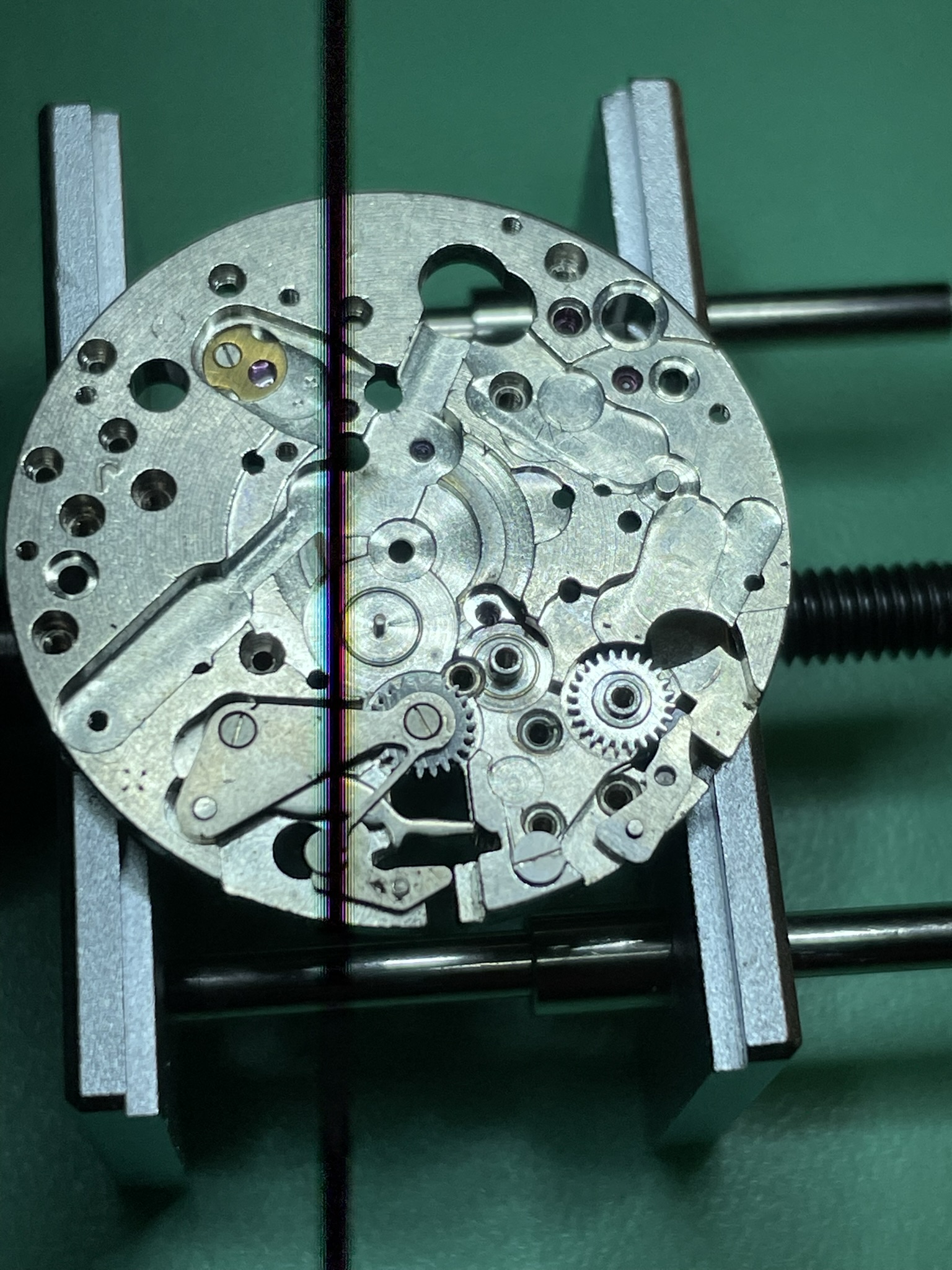

Reassembly
