Longines Flagship
The CEO of the company I worked for at the time asked me if I wouldn't
take a look at his late father's watch so his son could enjoy it. No
idea why I said "sure", but this was a nerve wracking service.

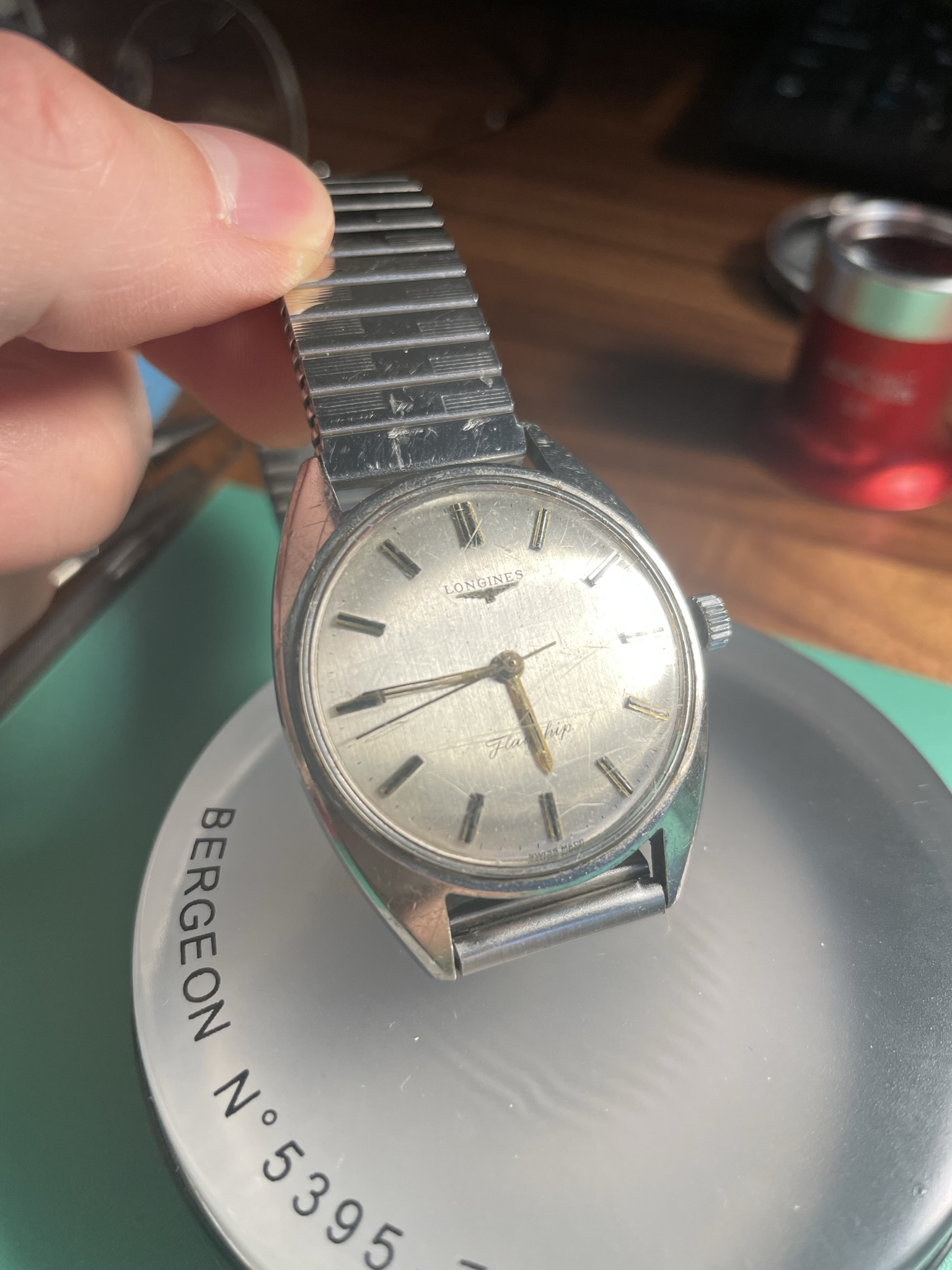

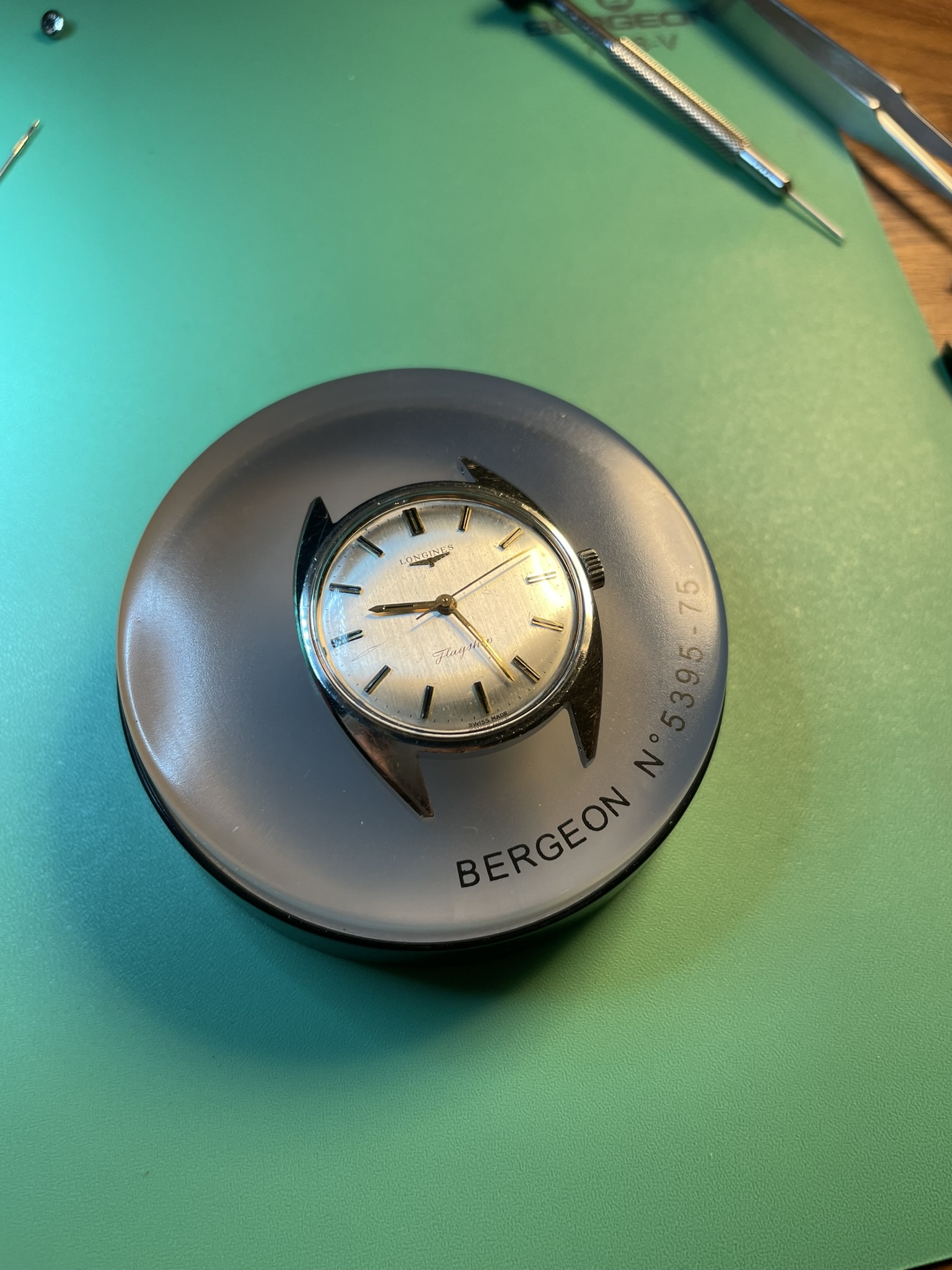

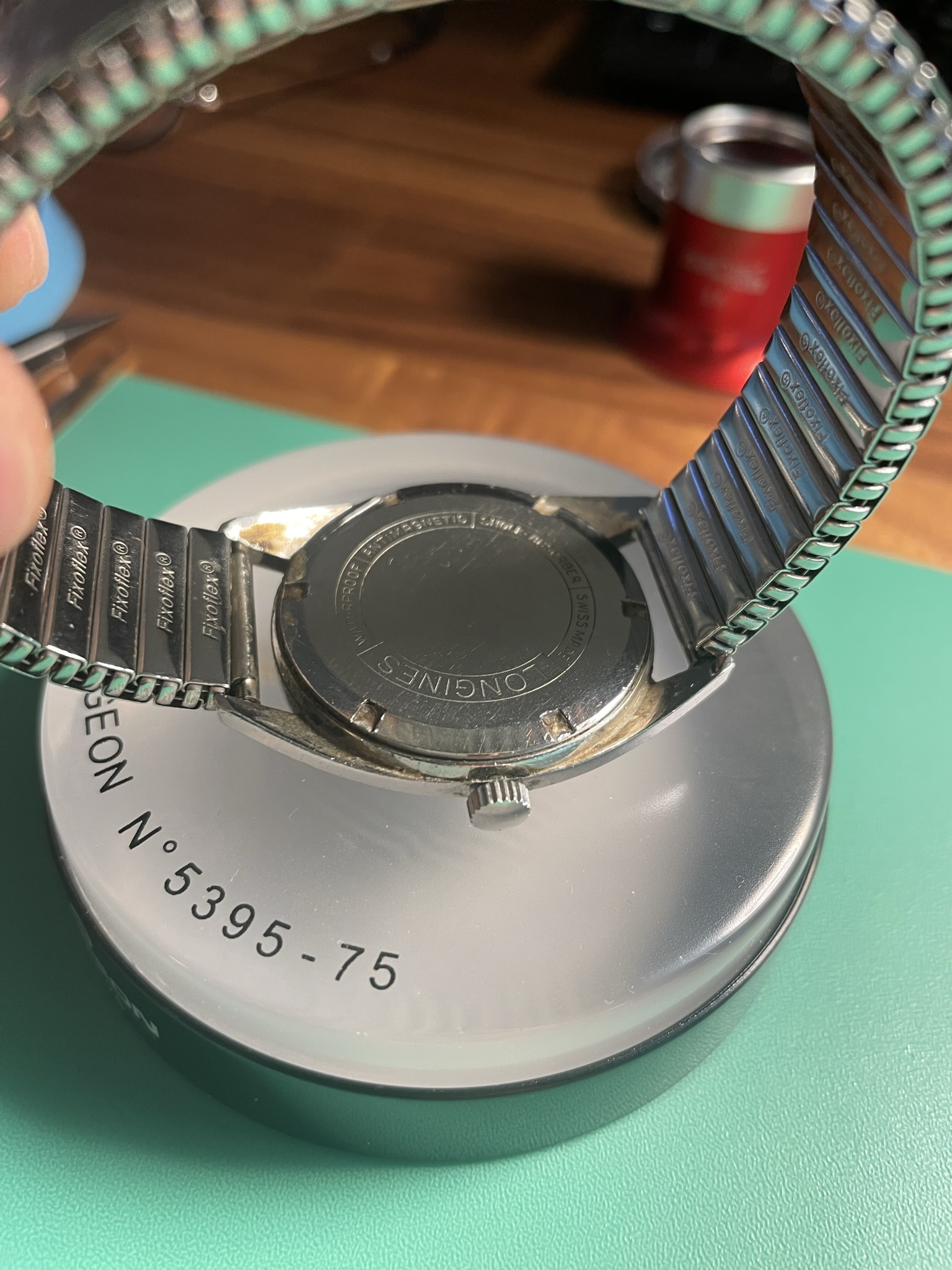

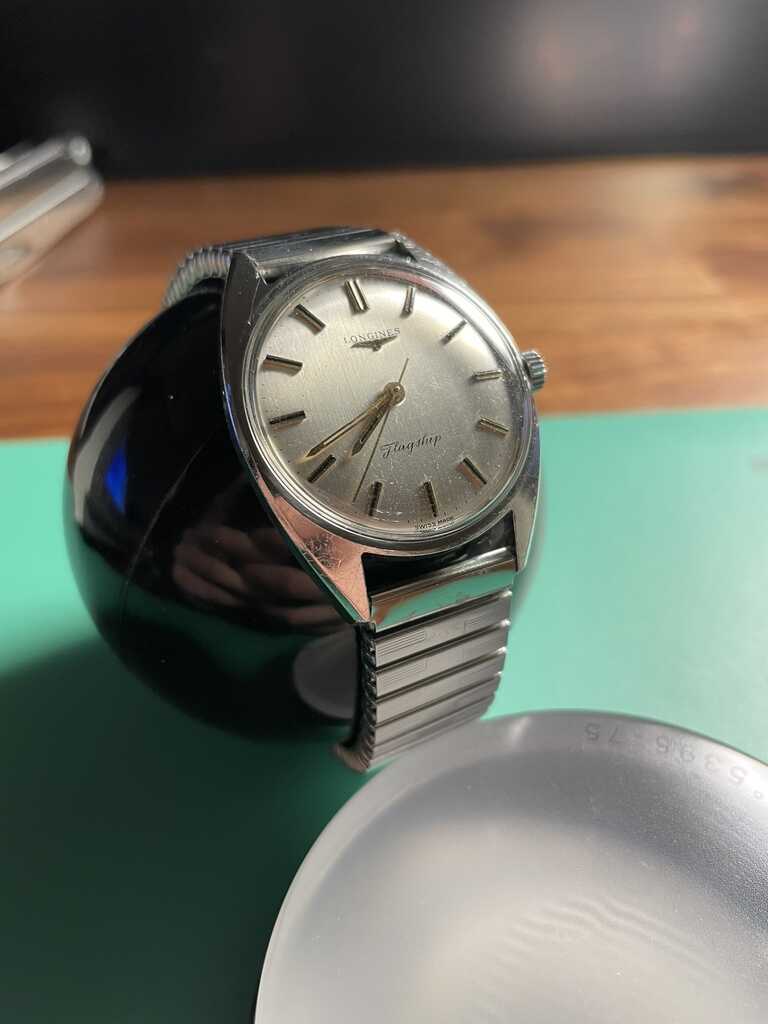

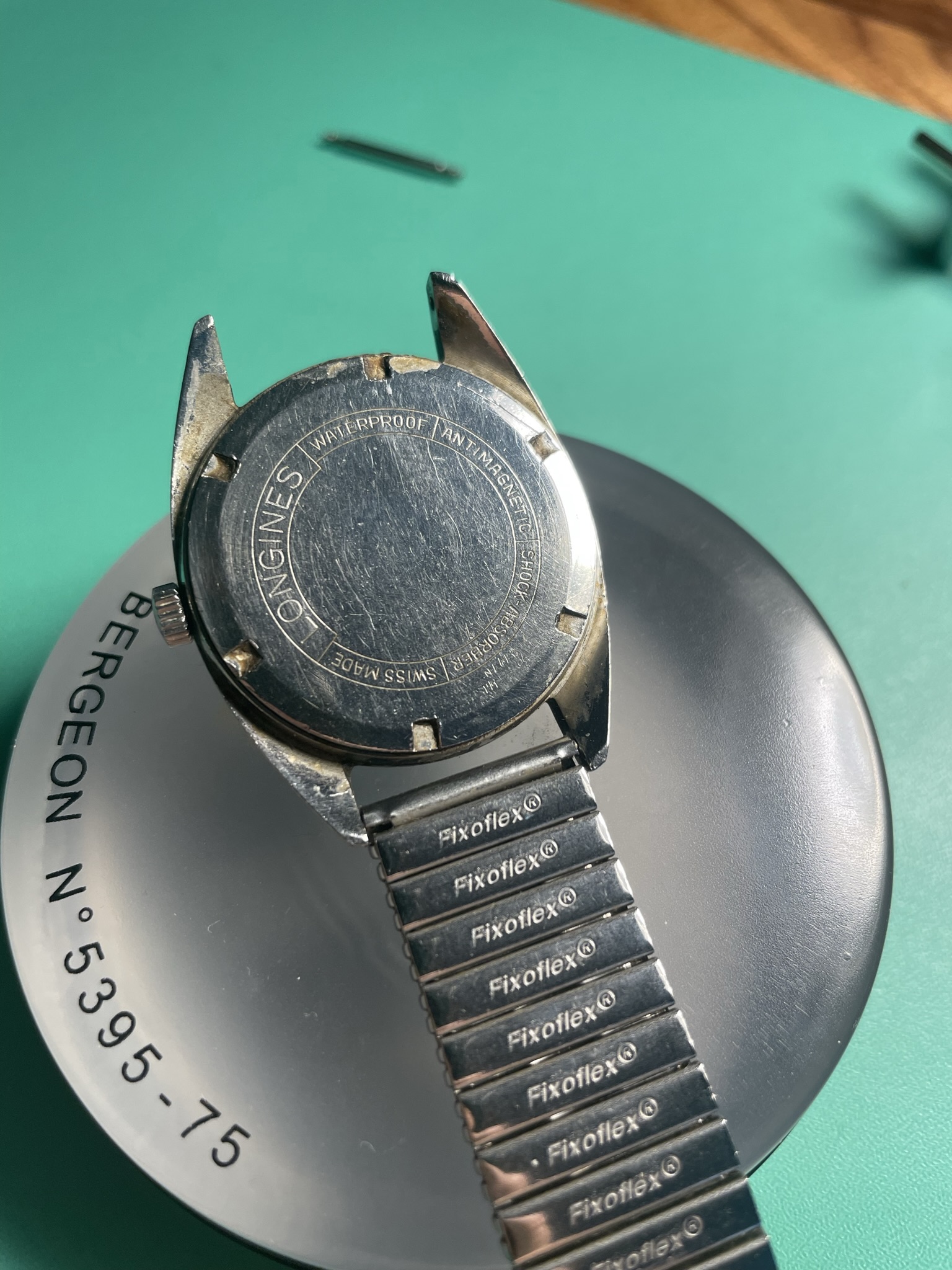

This beautiful Longines Flagship from the late '60s found itself on my
bench in running order, but hadn't been serviced in a long time. It
wound and set ok, but I could feel some resistance when setting the
hands between 12 and 1.

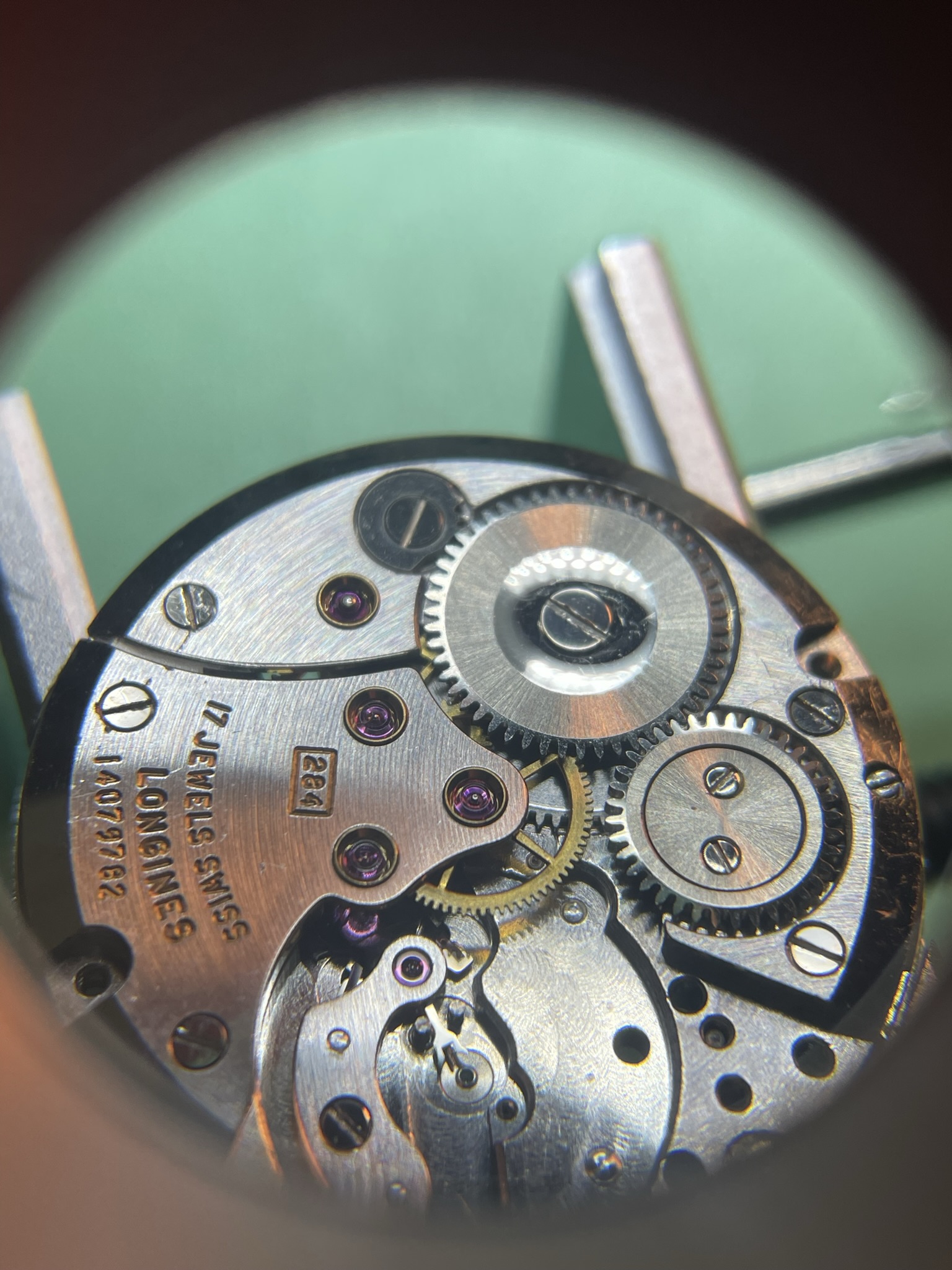

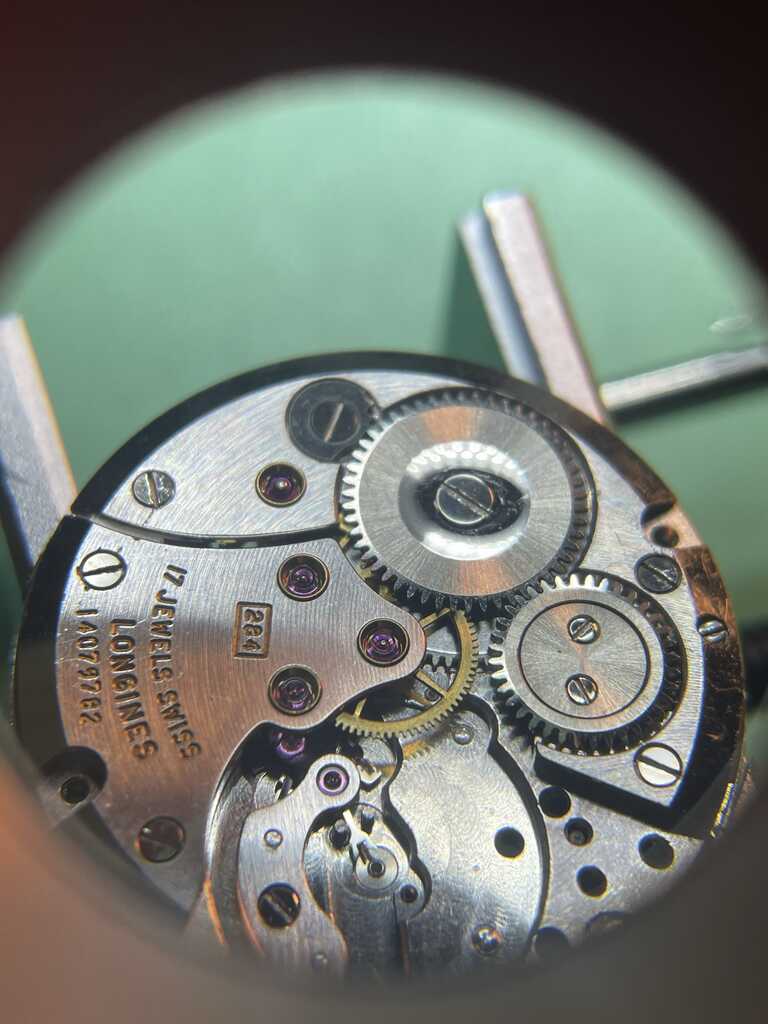

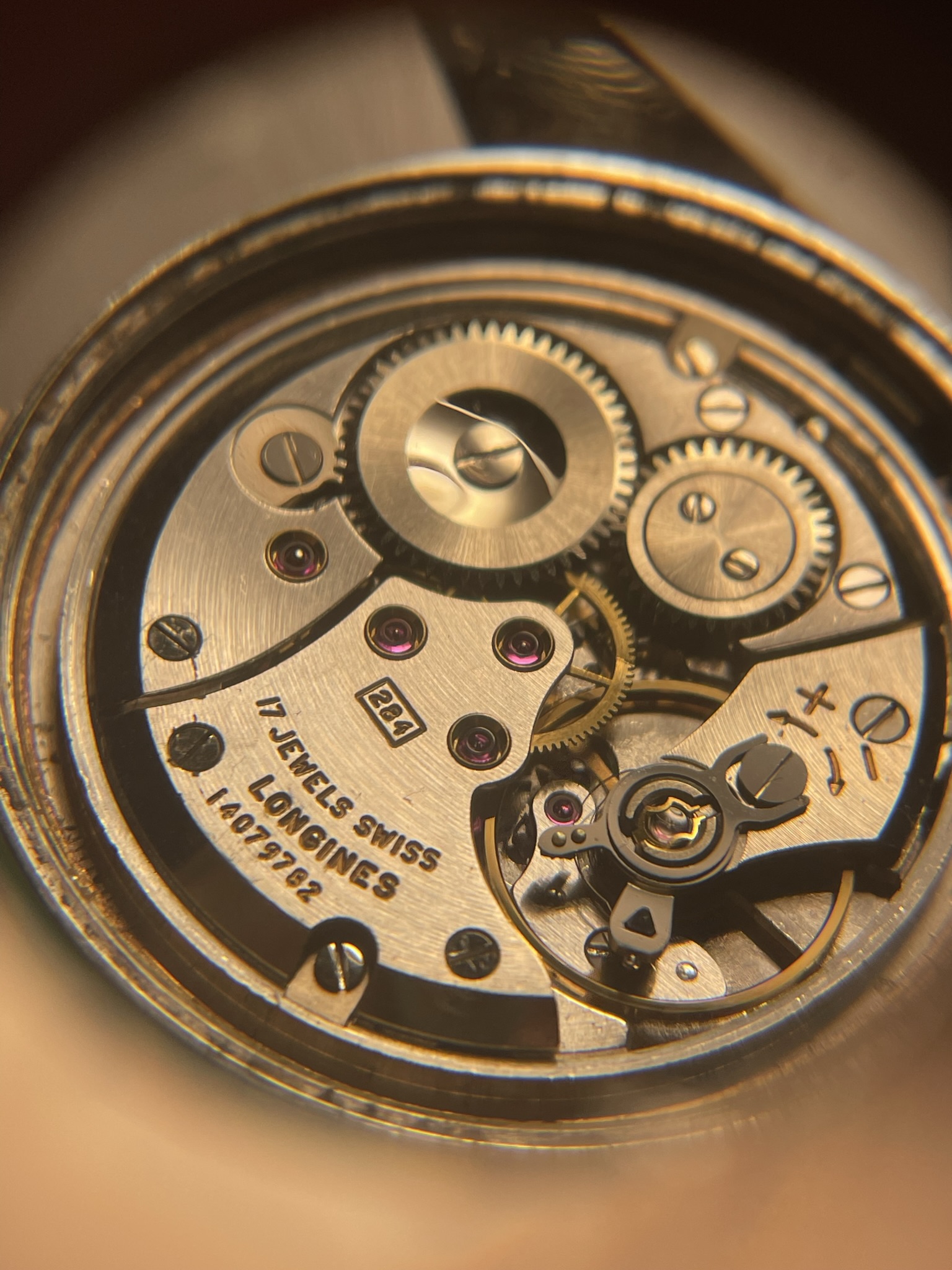

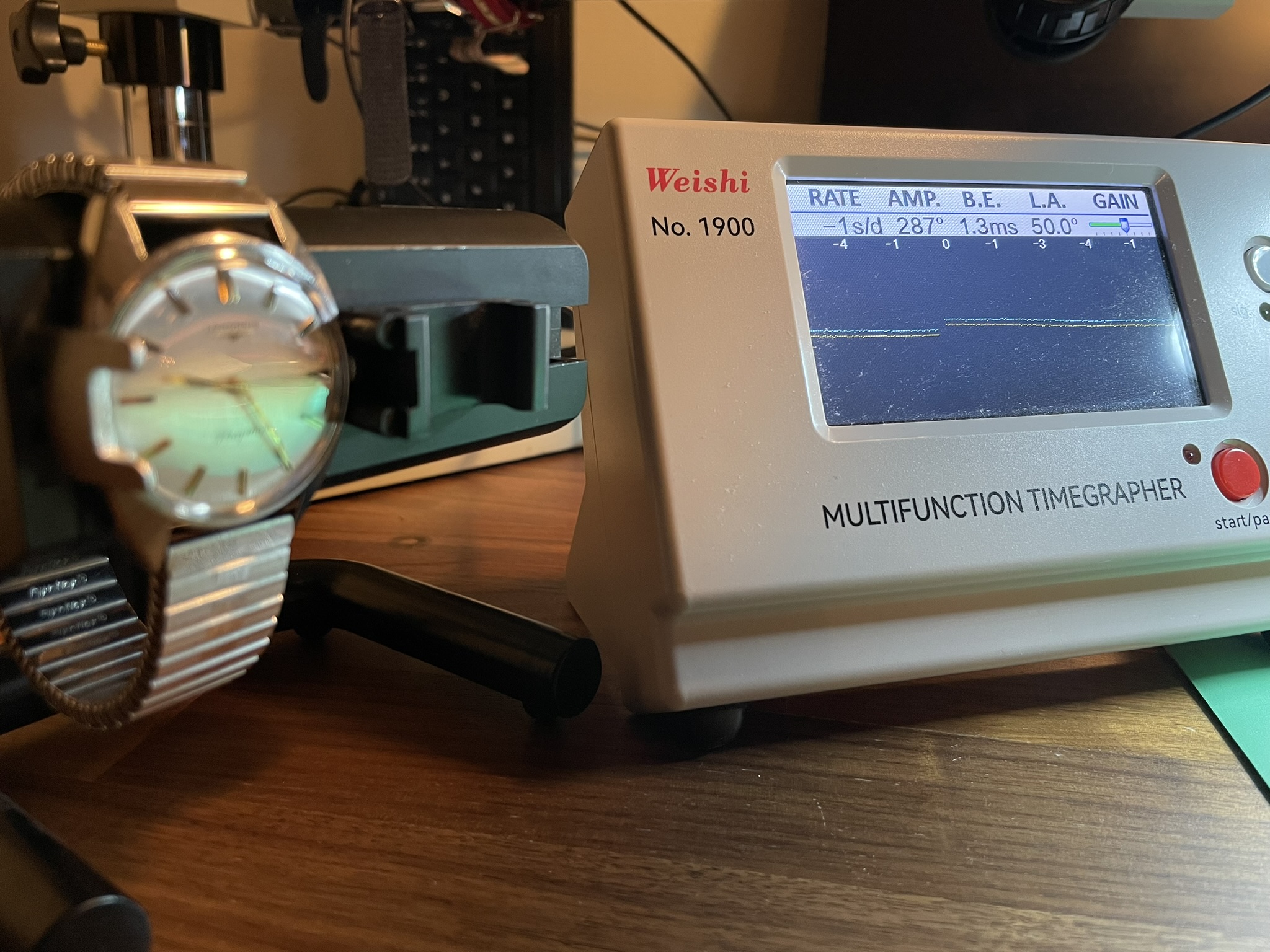

This Longines caliber 284 has a lift angle of 50°.
| Position | Rate [spd] | Amplitude [°] | Beat error [ms] | Note |
|---|---|---|---|---|
| DU | +14 to +24 | >310 | >1.0 | |
| DD | +17 | 296 | 1.0 | |
| CU | +3 to +7 | 270 | 1.0 | |
| CR | 7 | 262 | 1.3 | |
| CL | 11 | 261 | 1.0 | |
| CD | 13 | 248 | 1.4 | High BE and low amp! |
Disassembly and fault finding

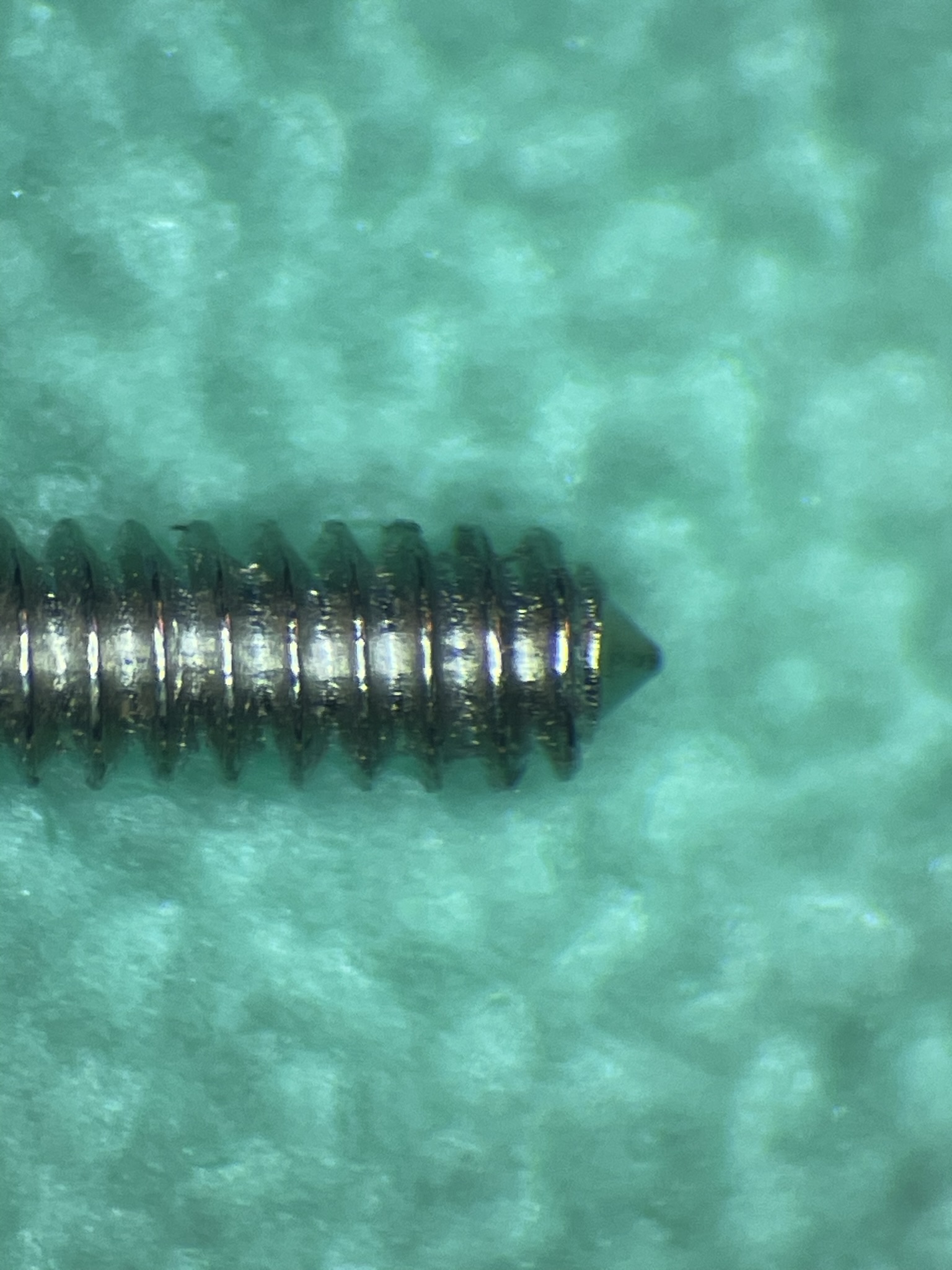

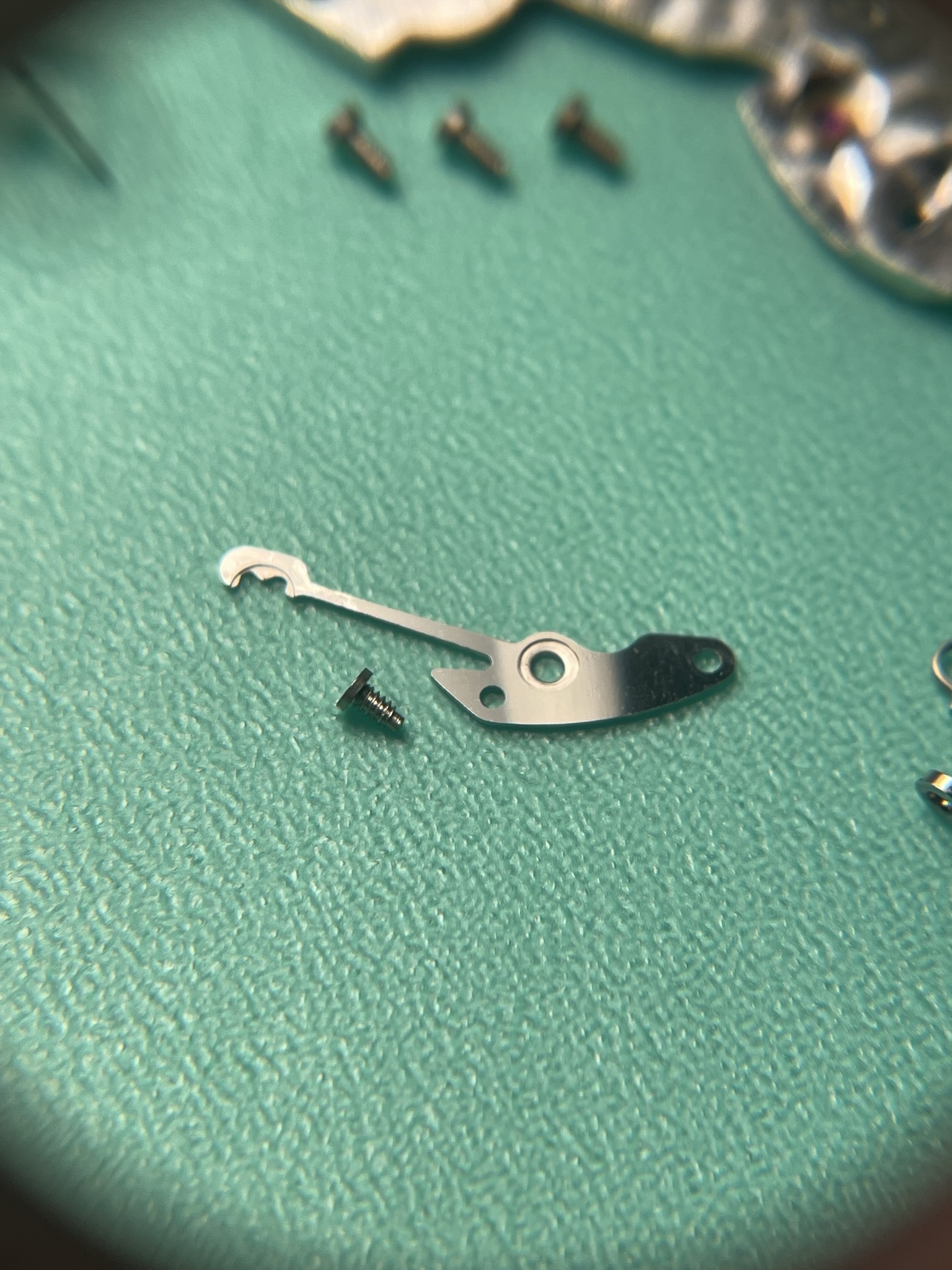

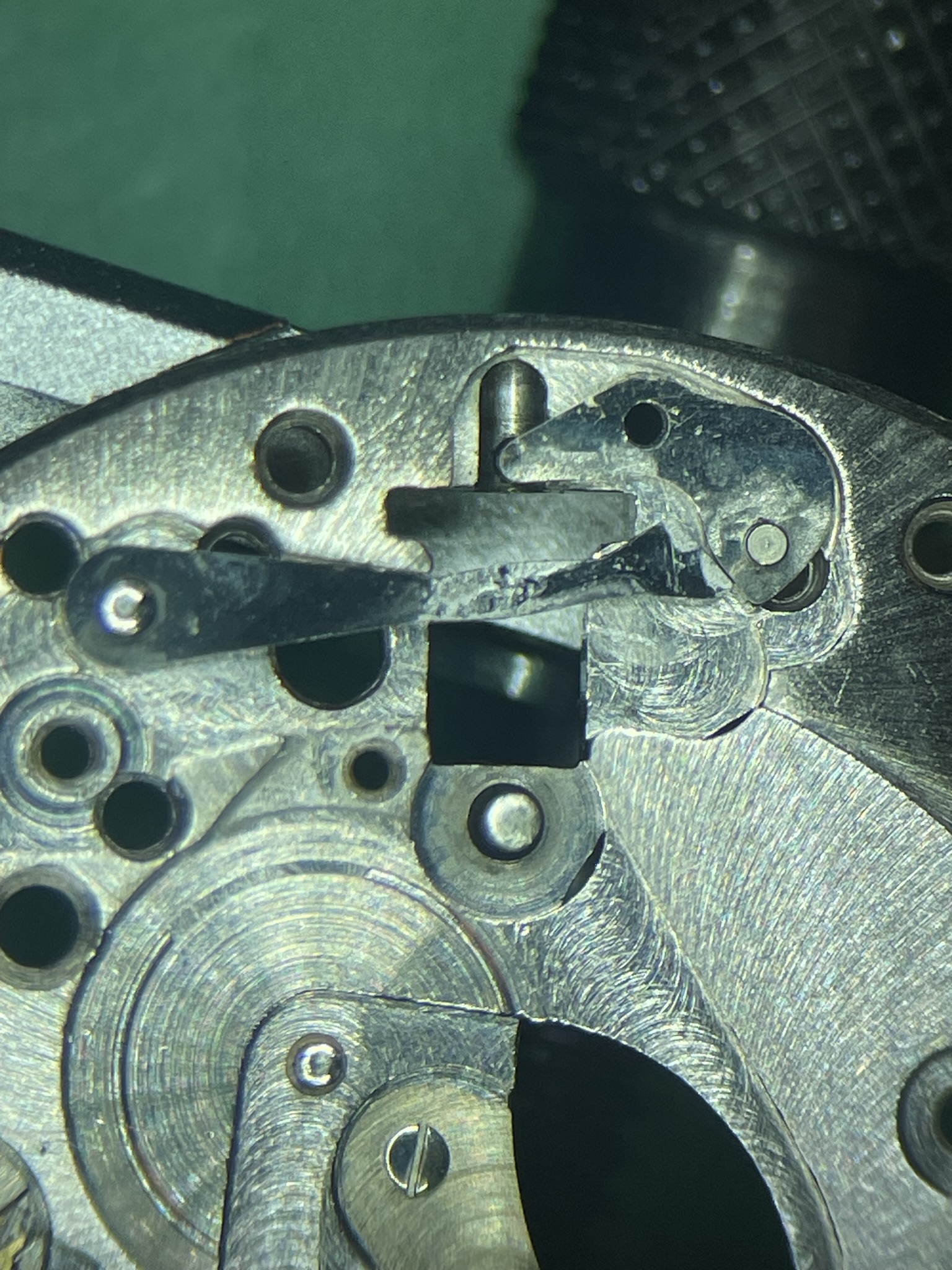

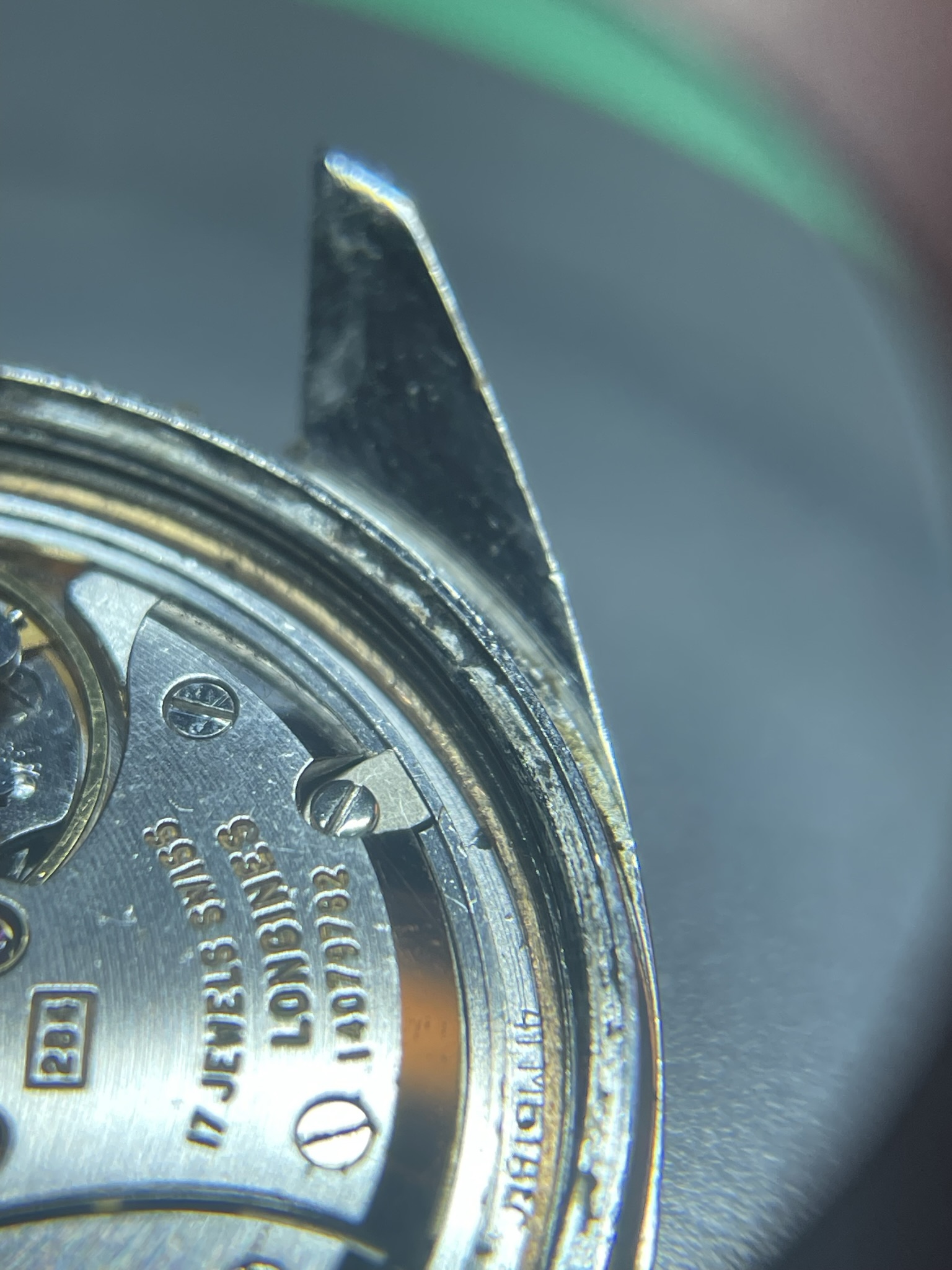

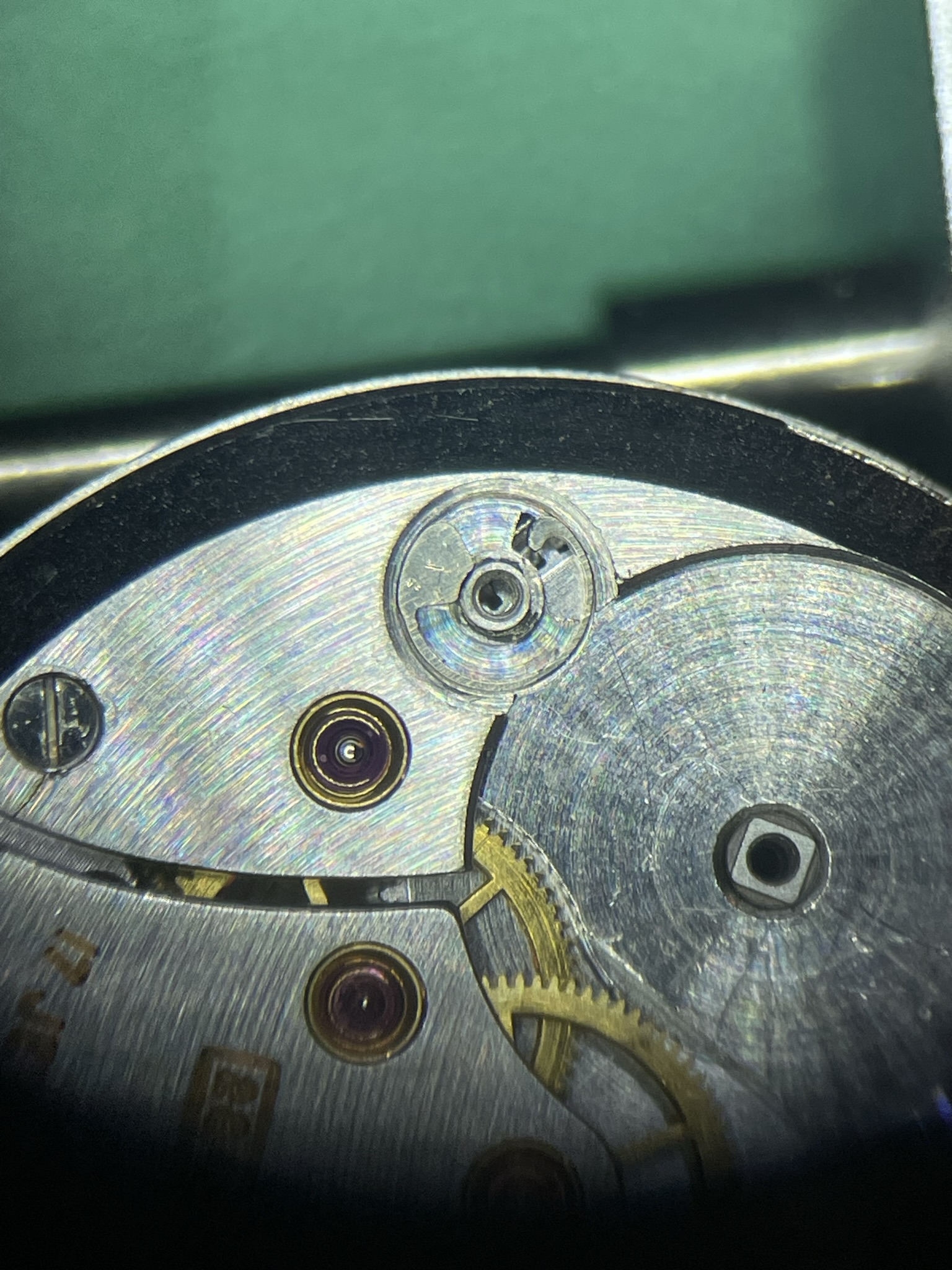

The setting lever screw was properly lodged in the barrel bridge.

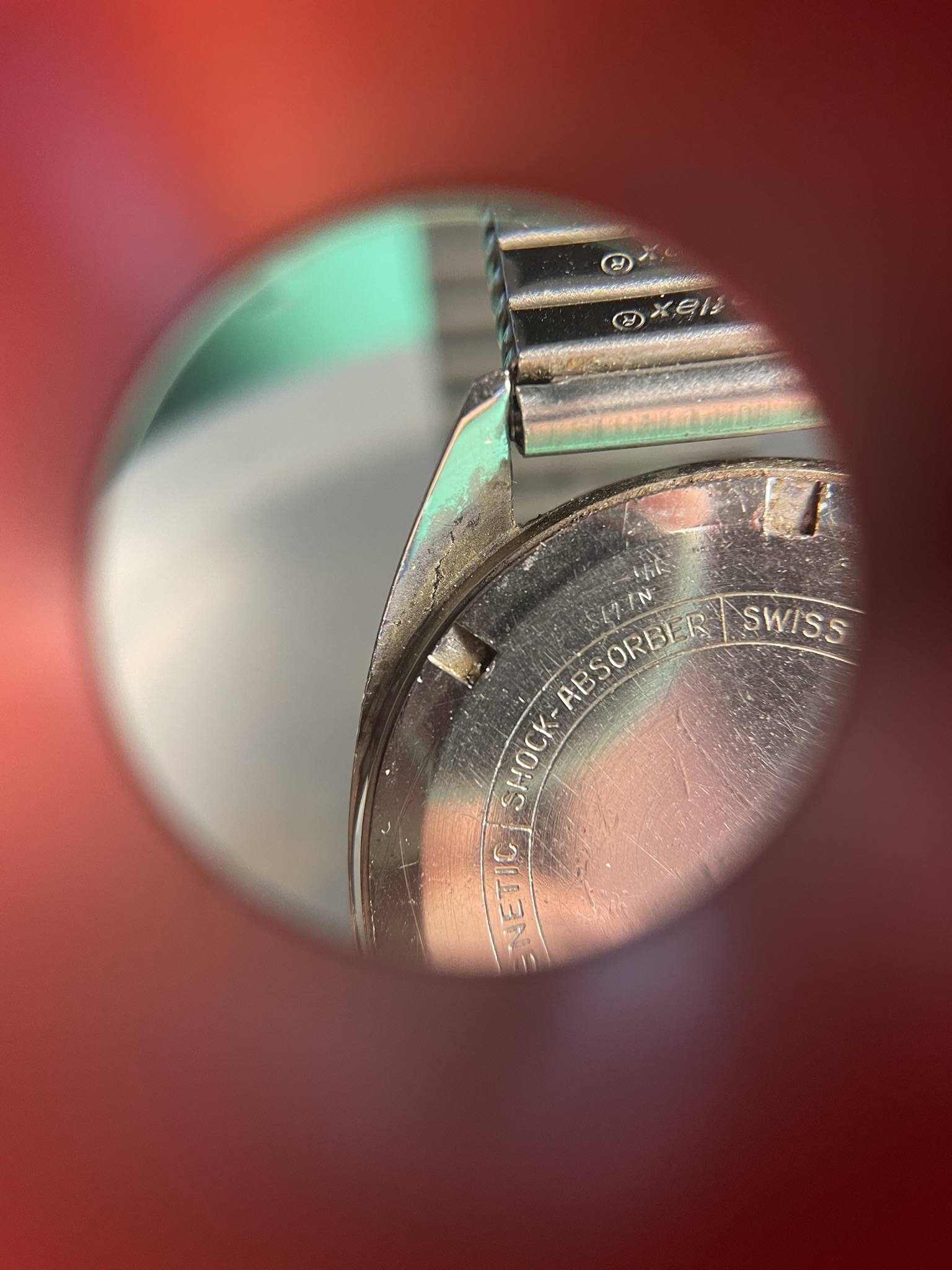

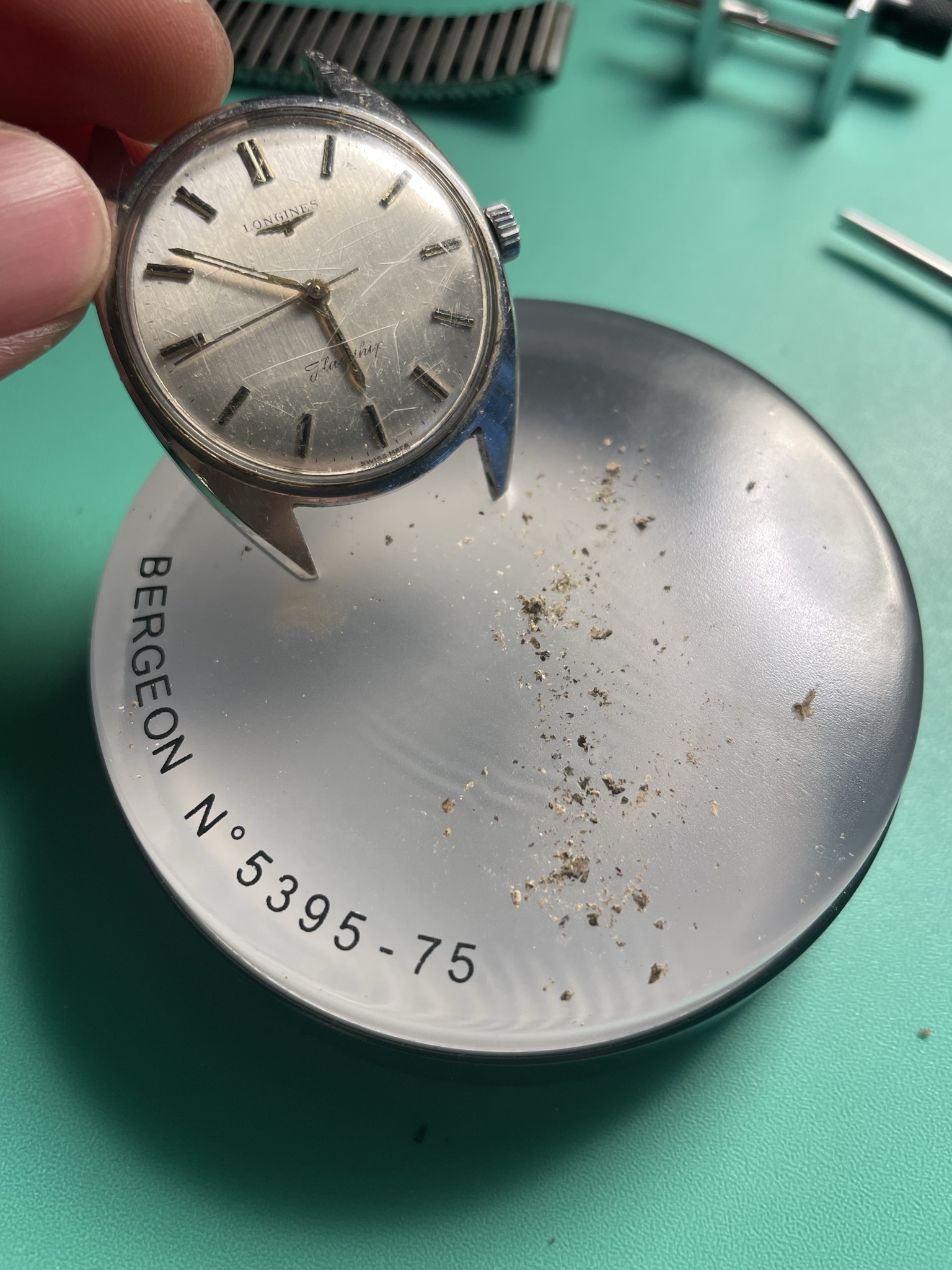

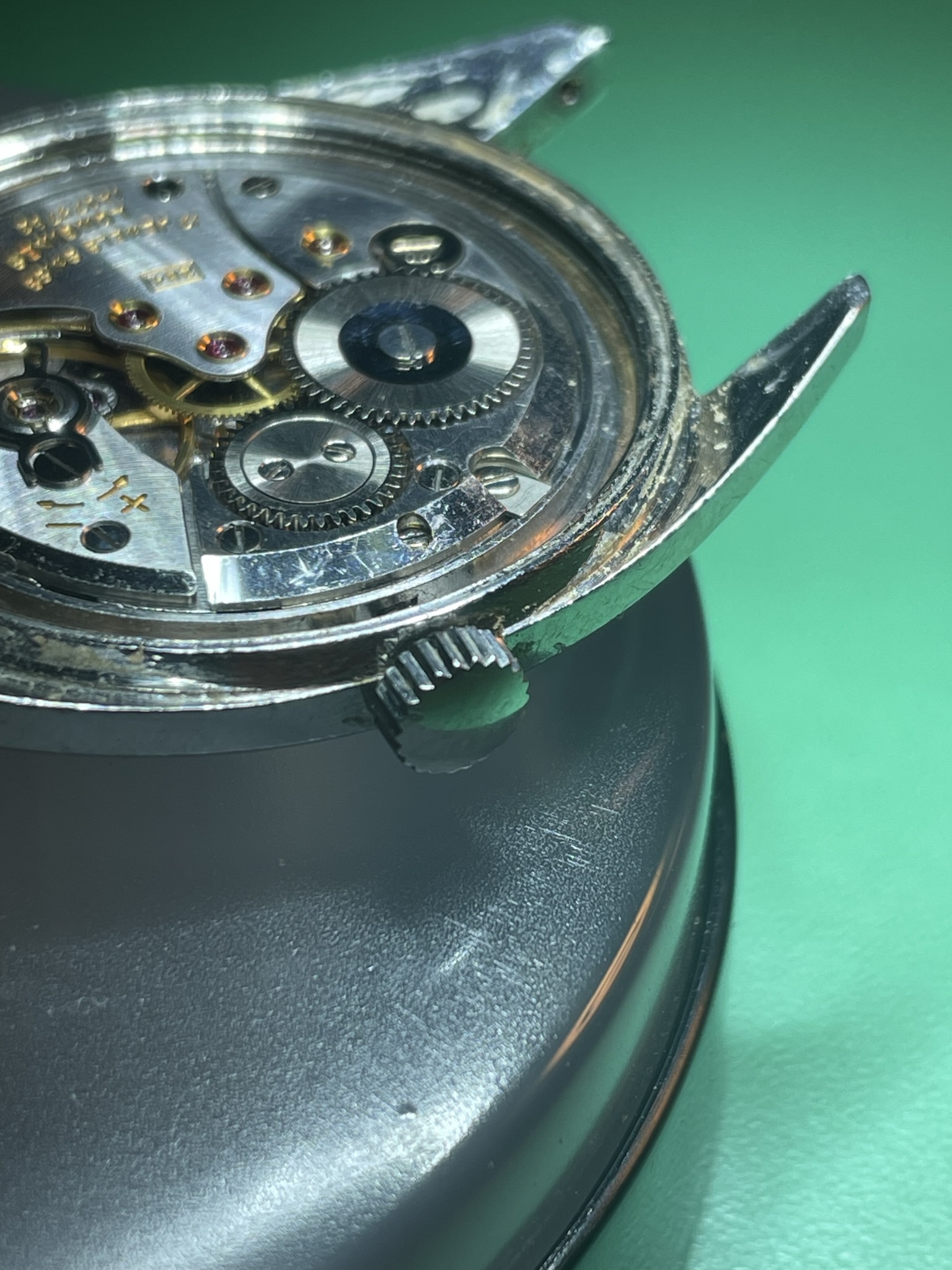

That's a lot of arm cheese.

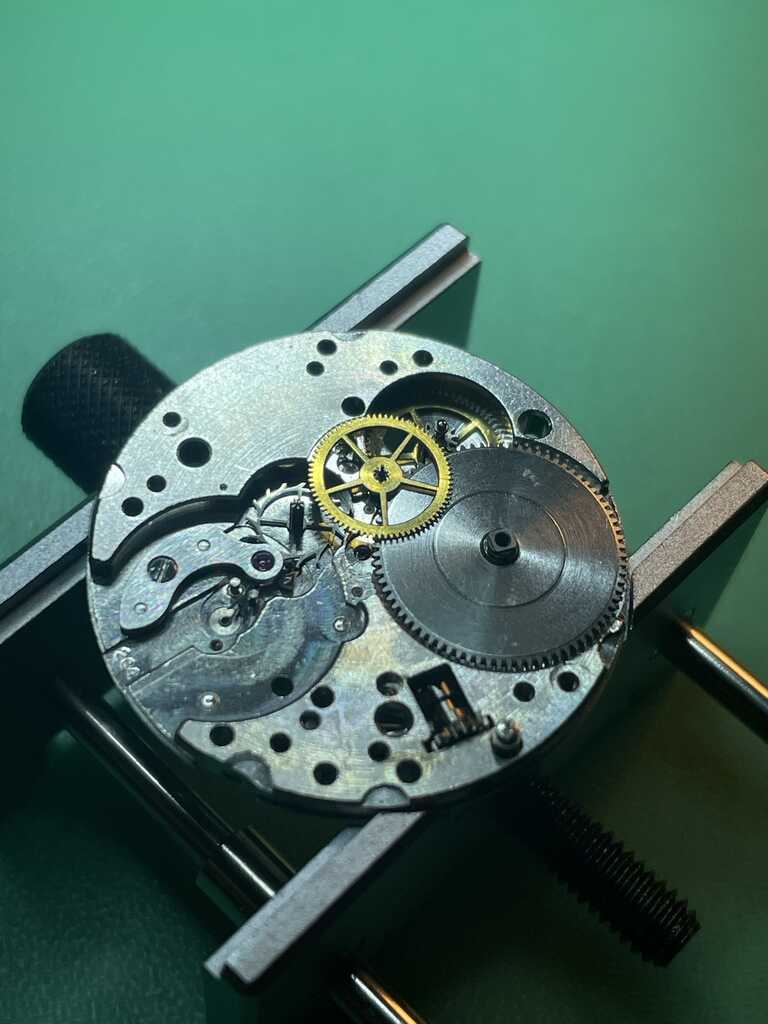

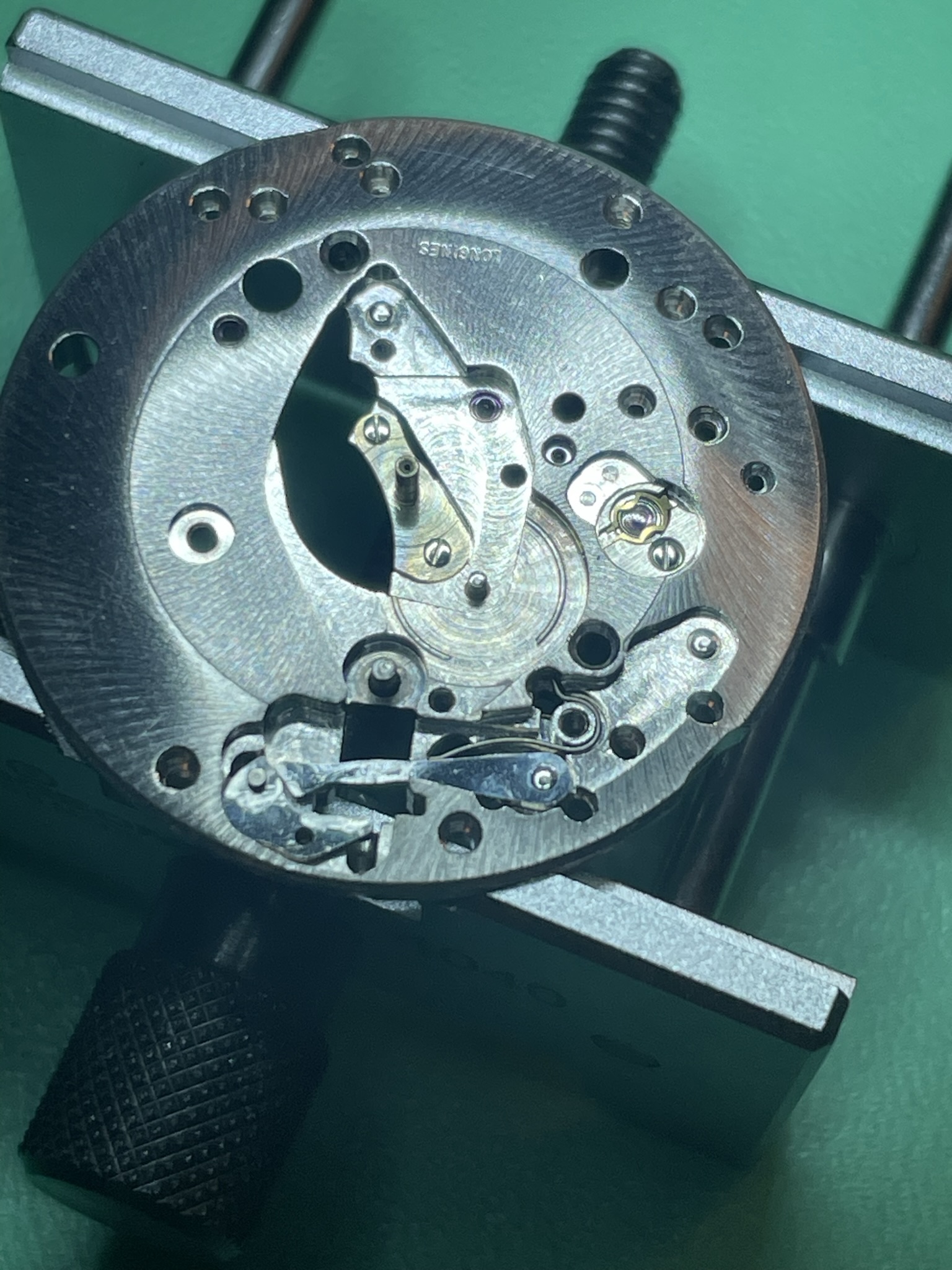

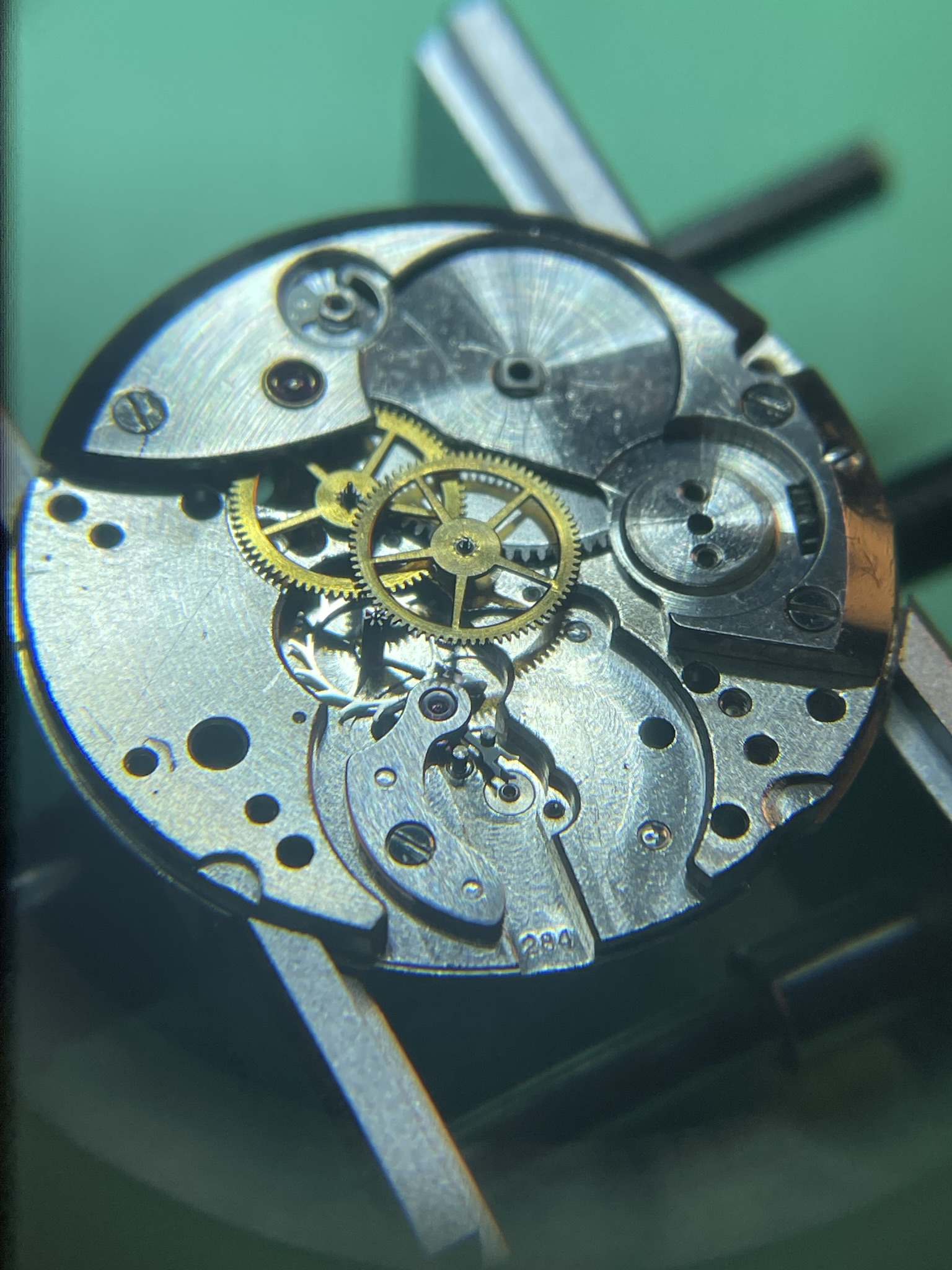

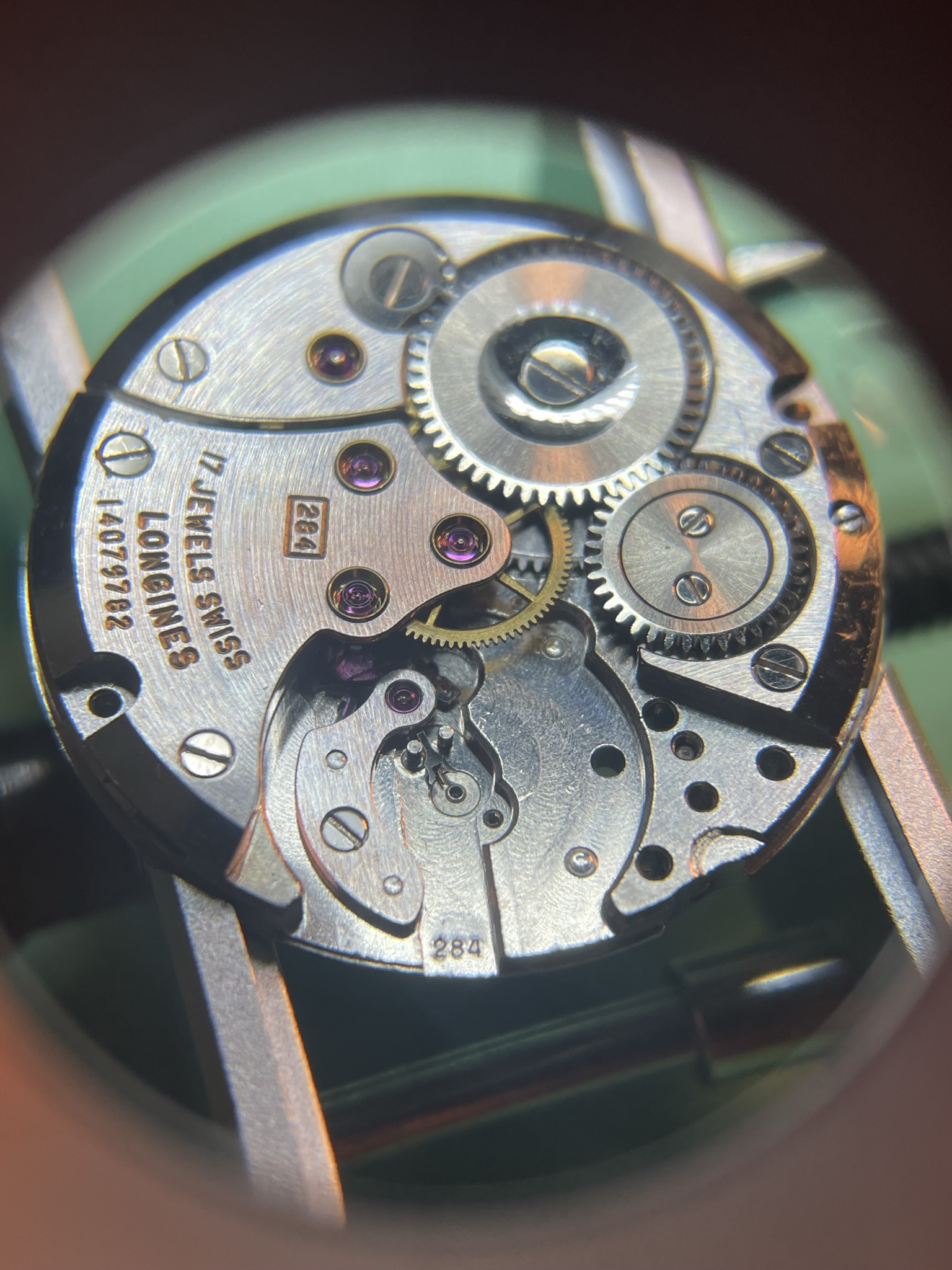

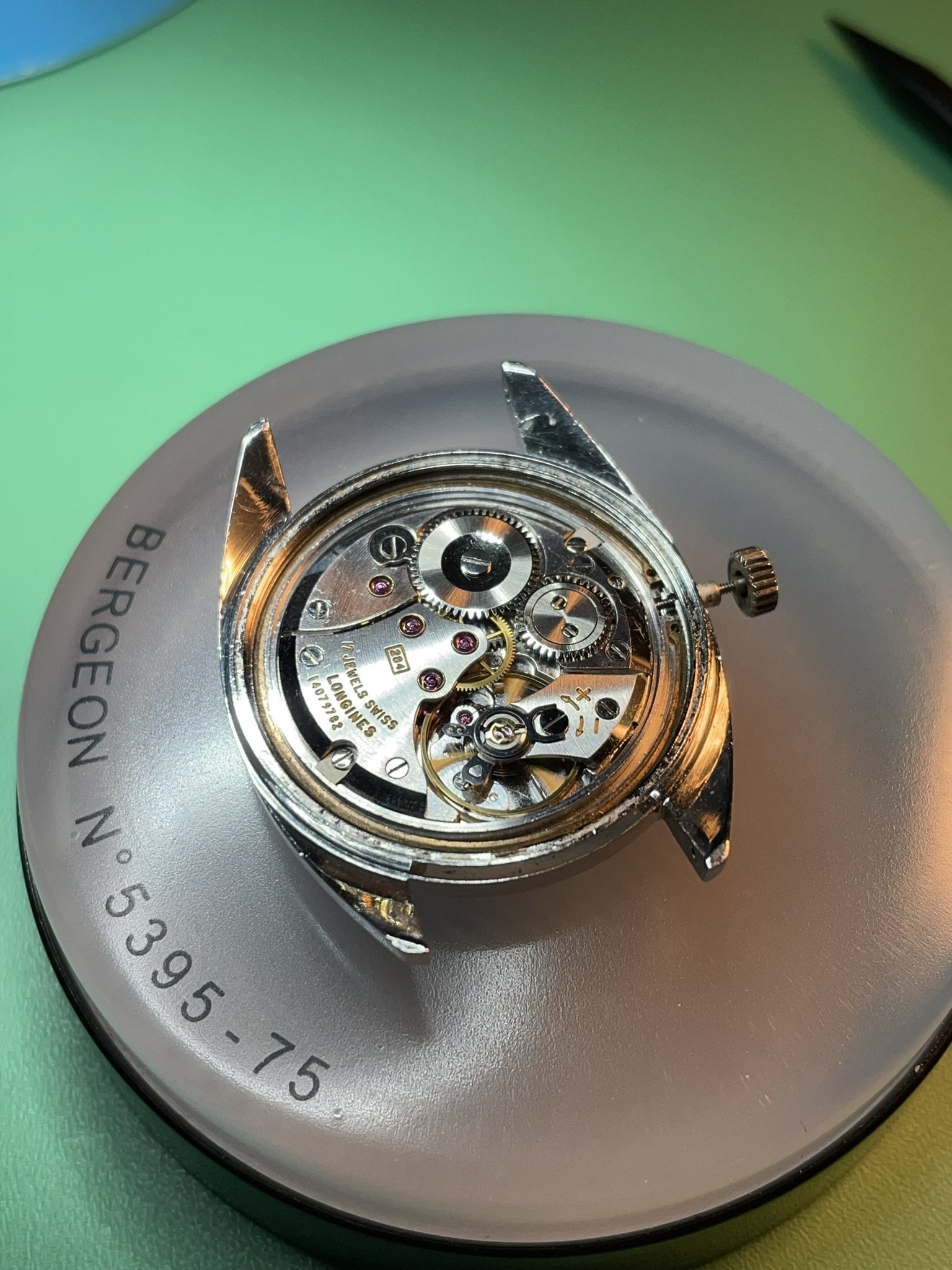

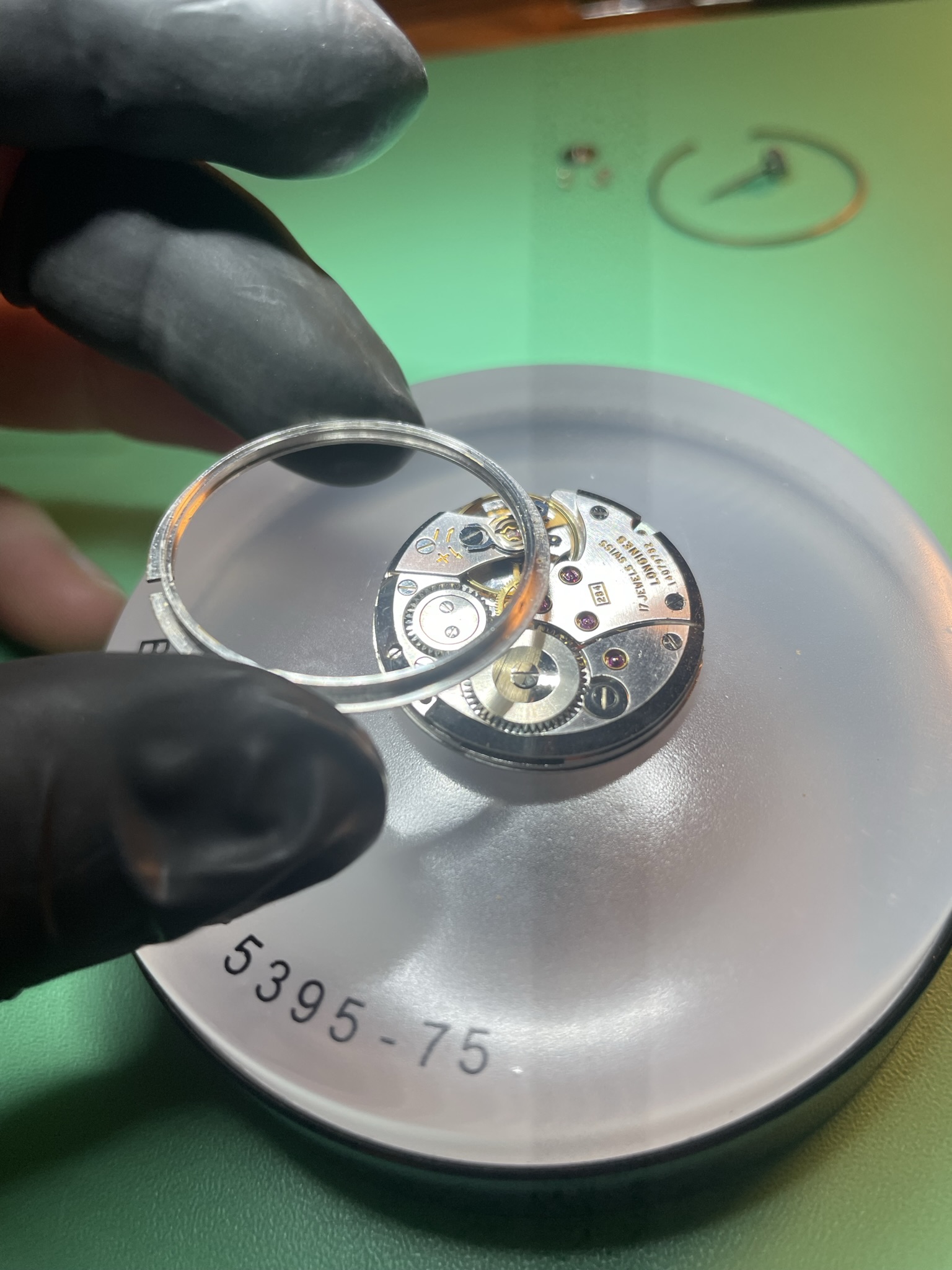

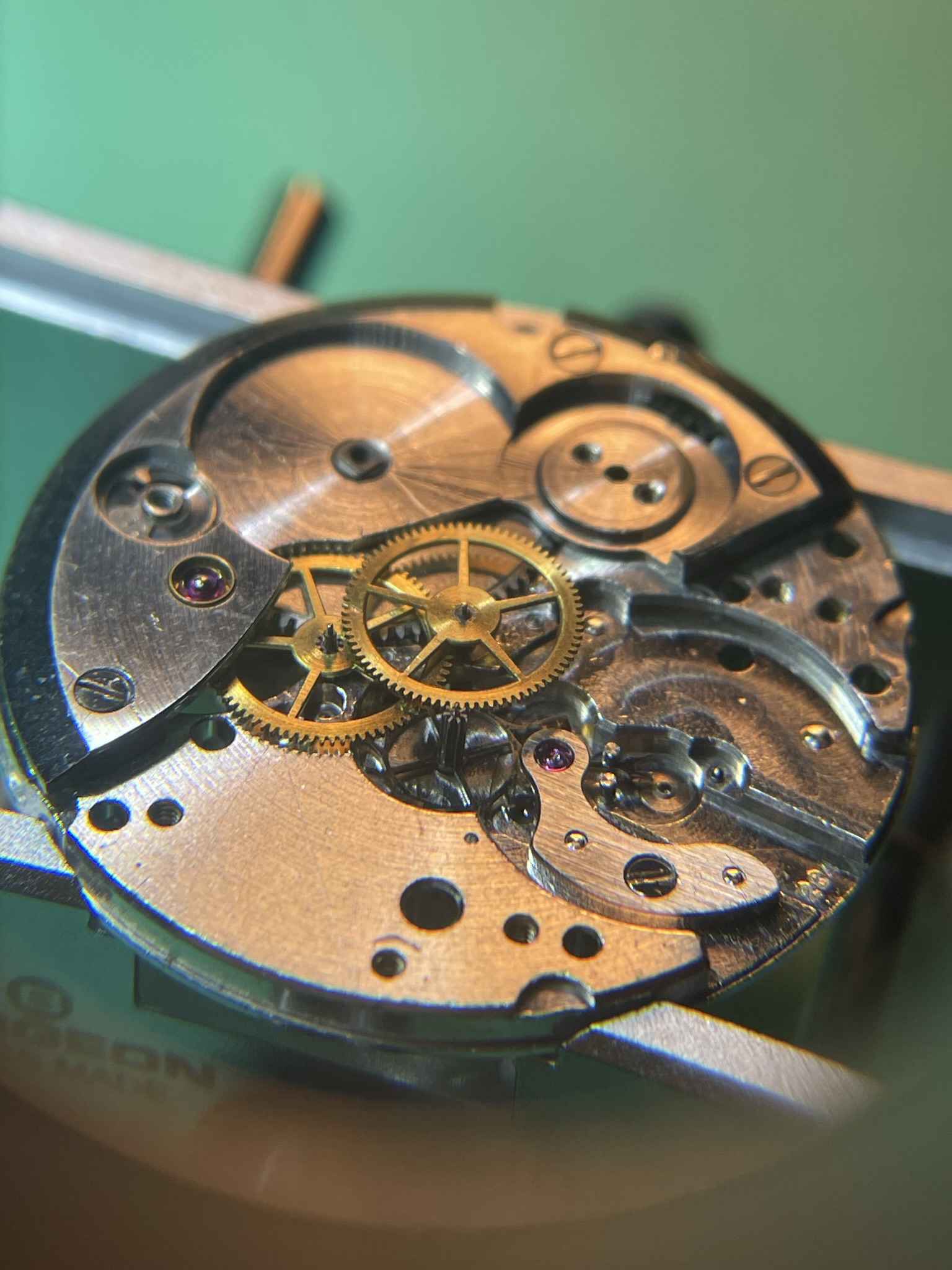

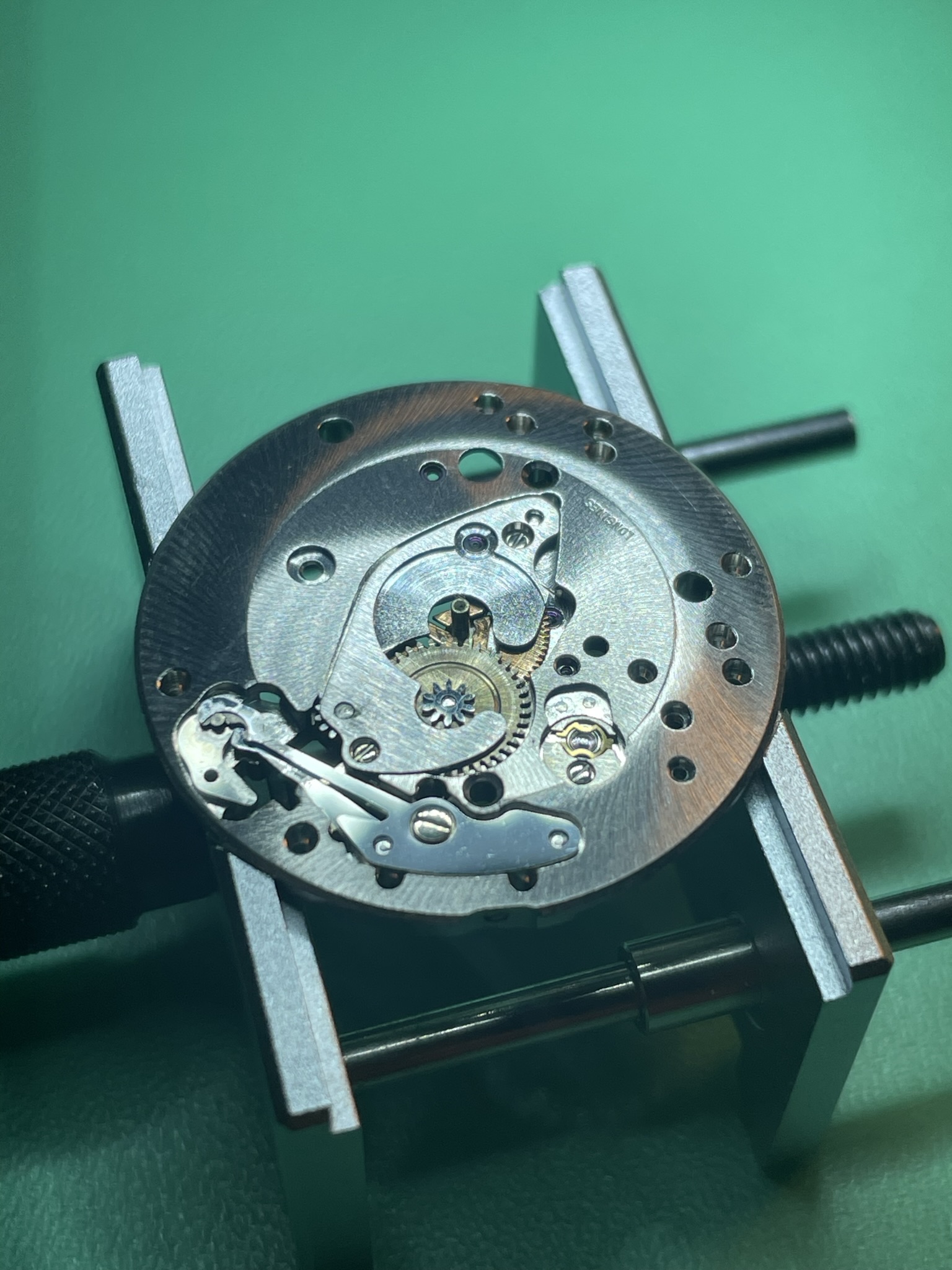

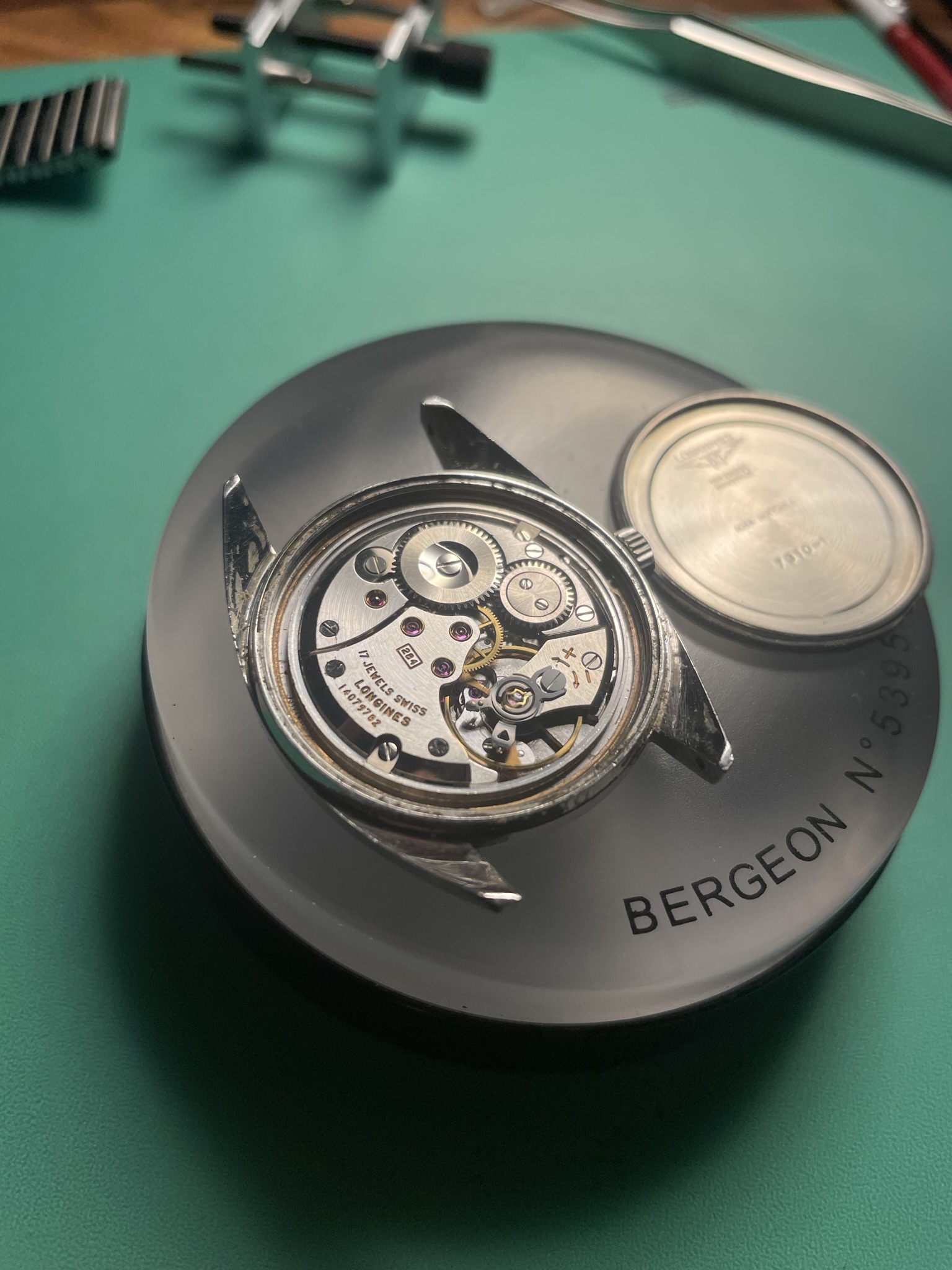

Surprisingly clean movement judging by how much use this watch has seen!

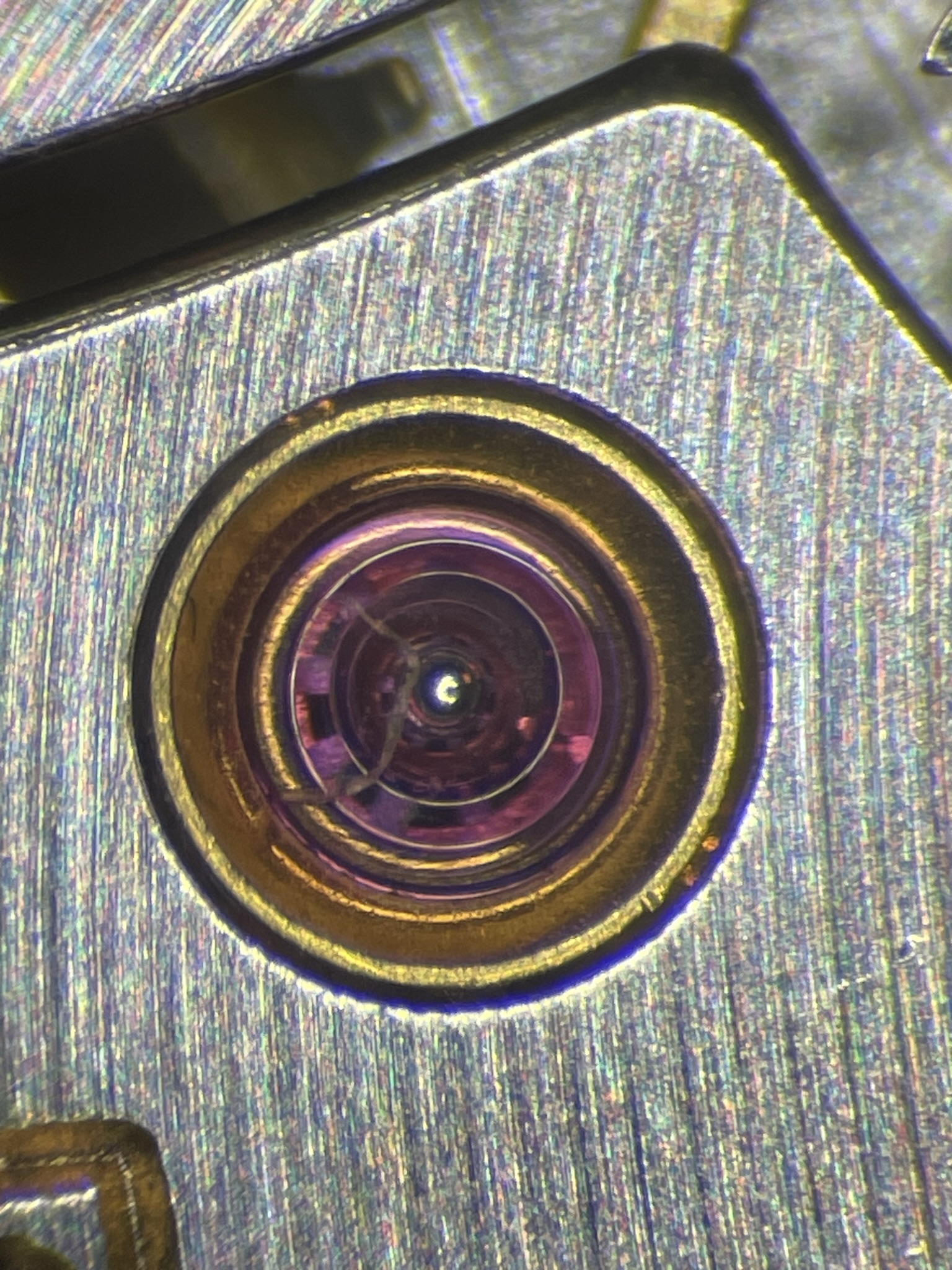

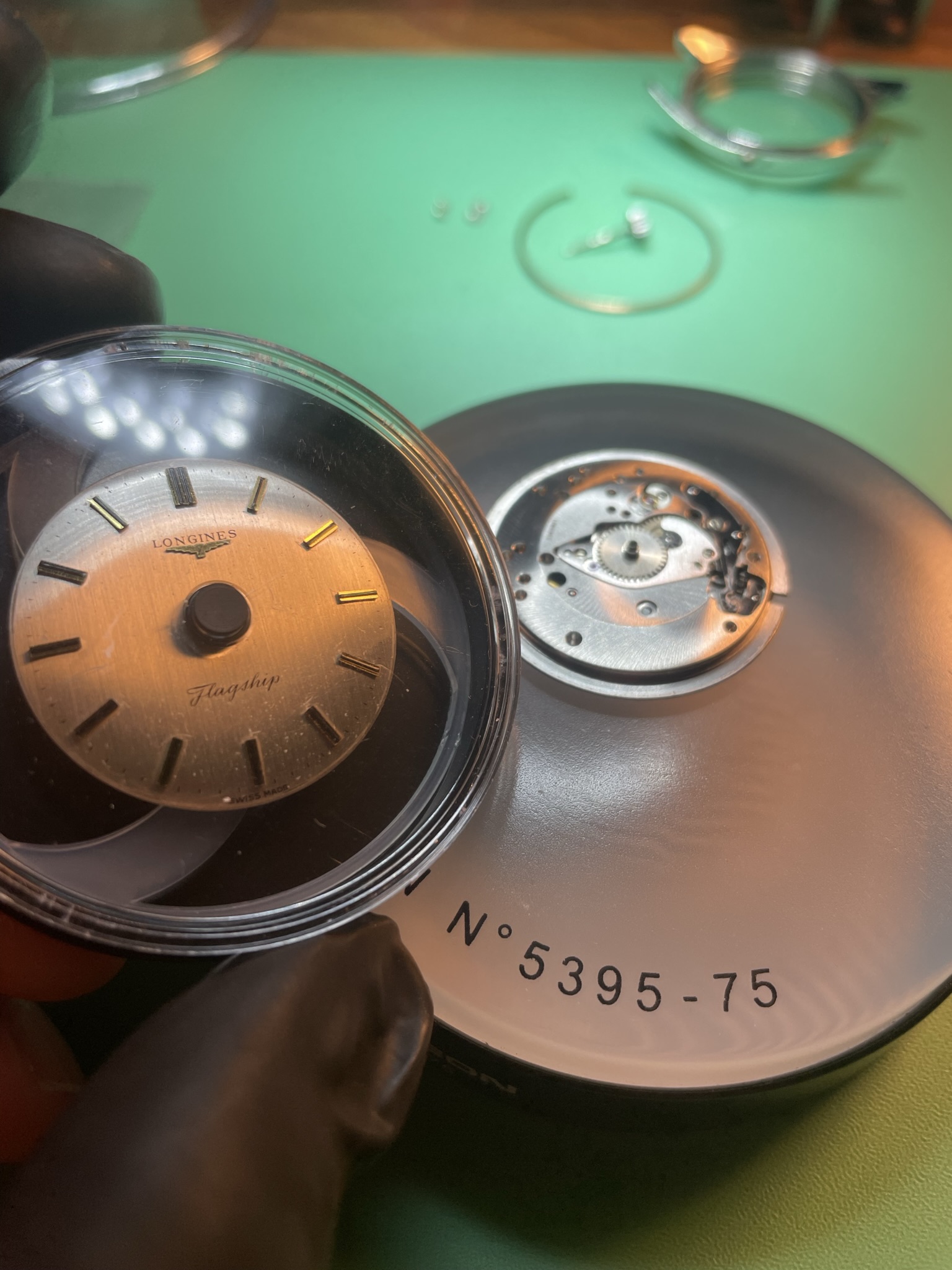

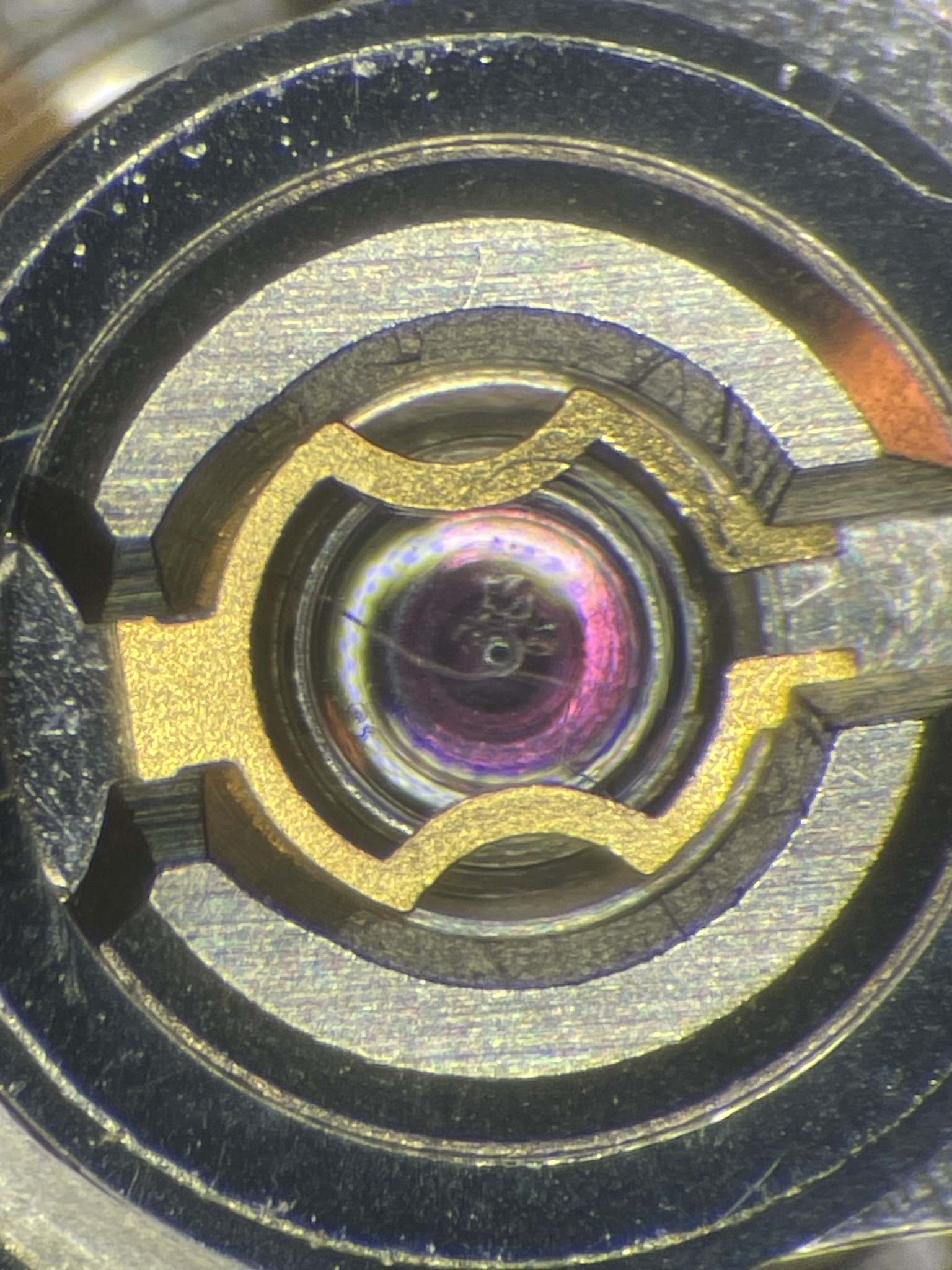

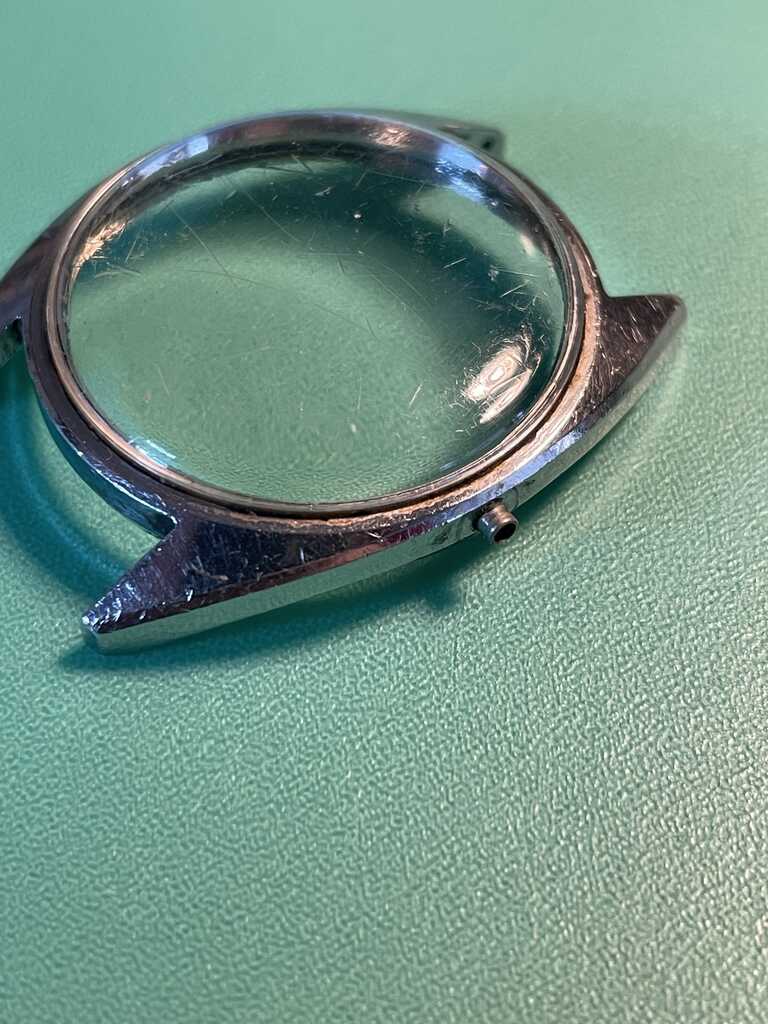

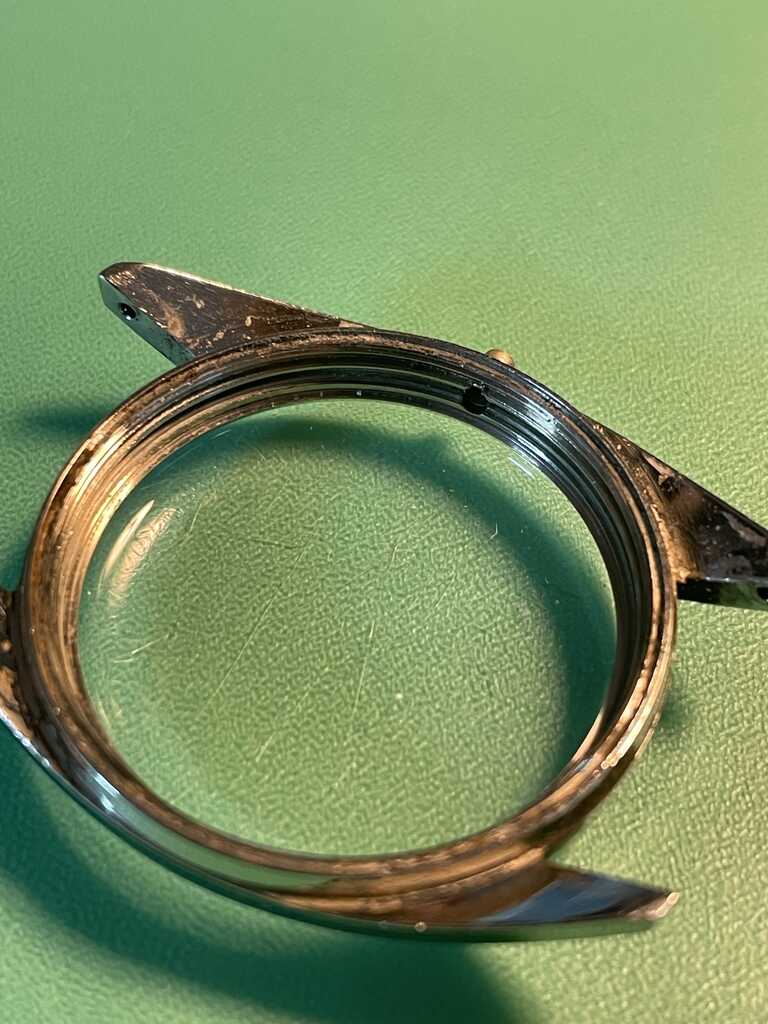

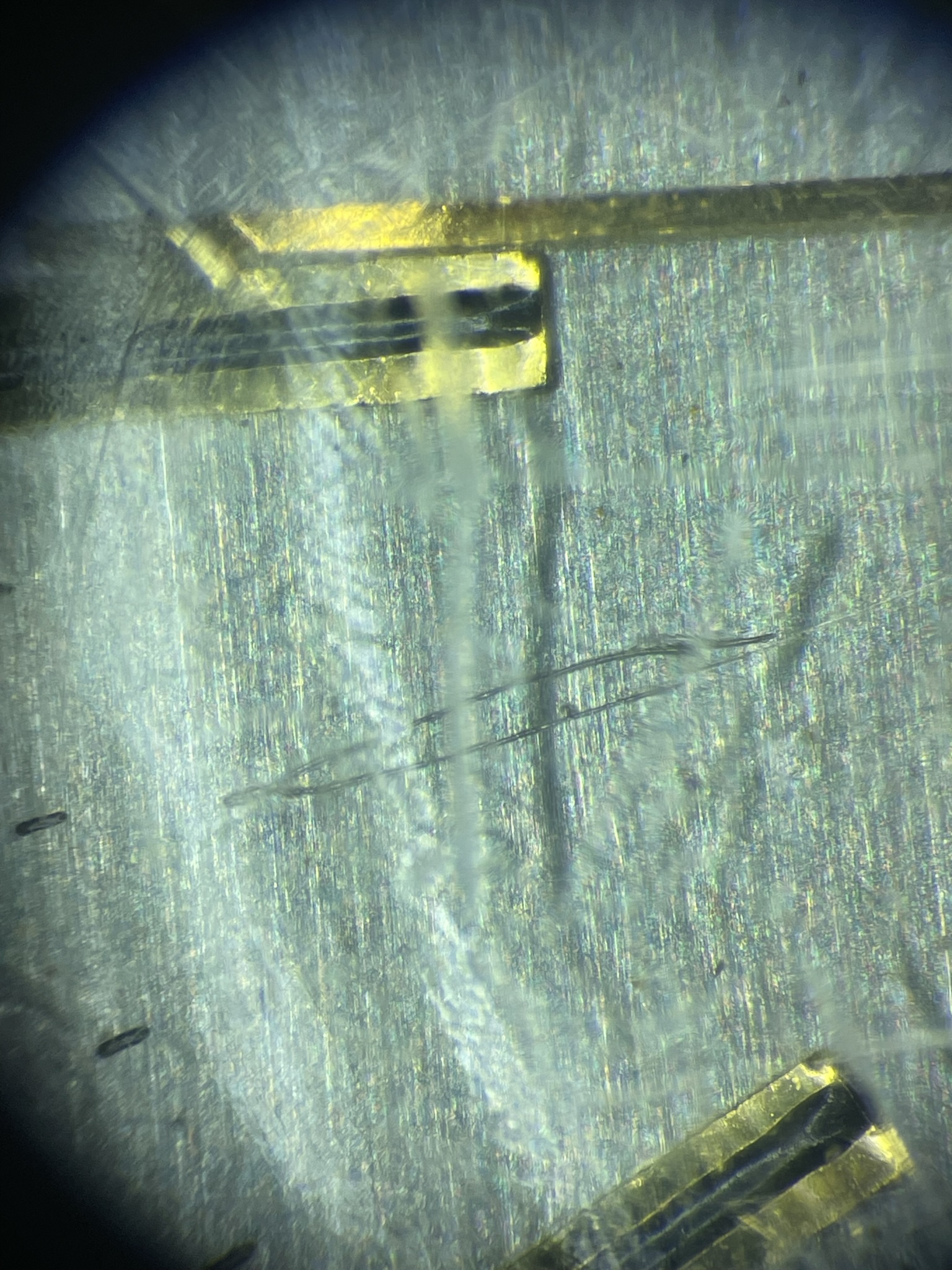

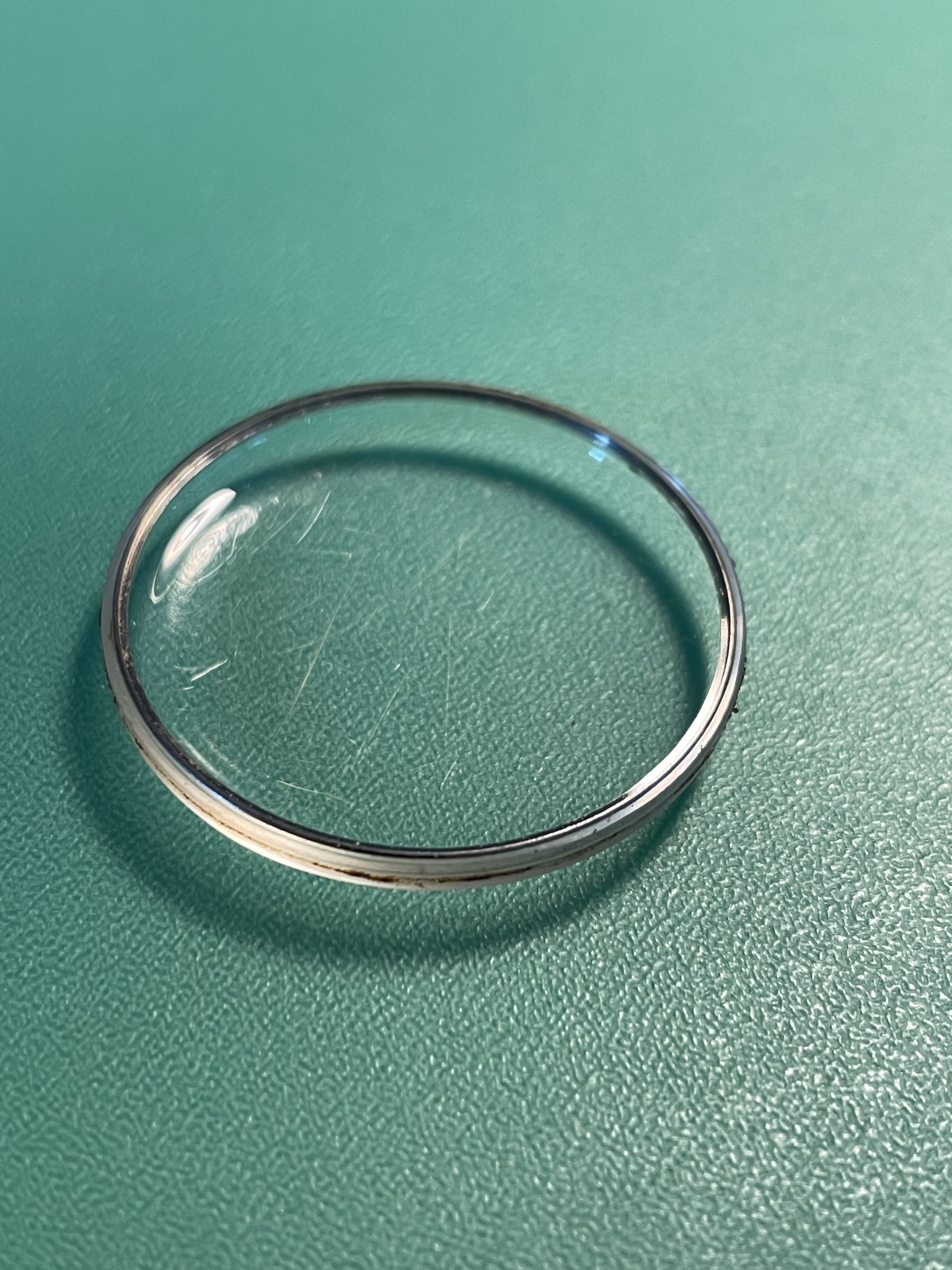

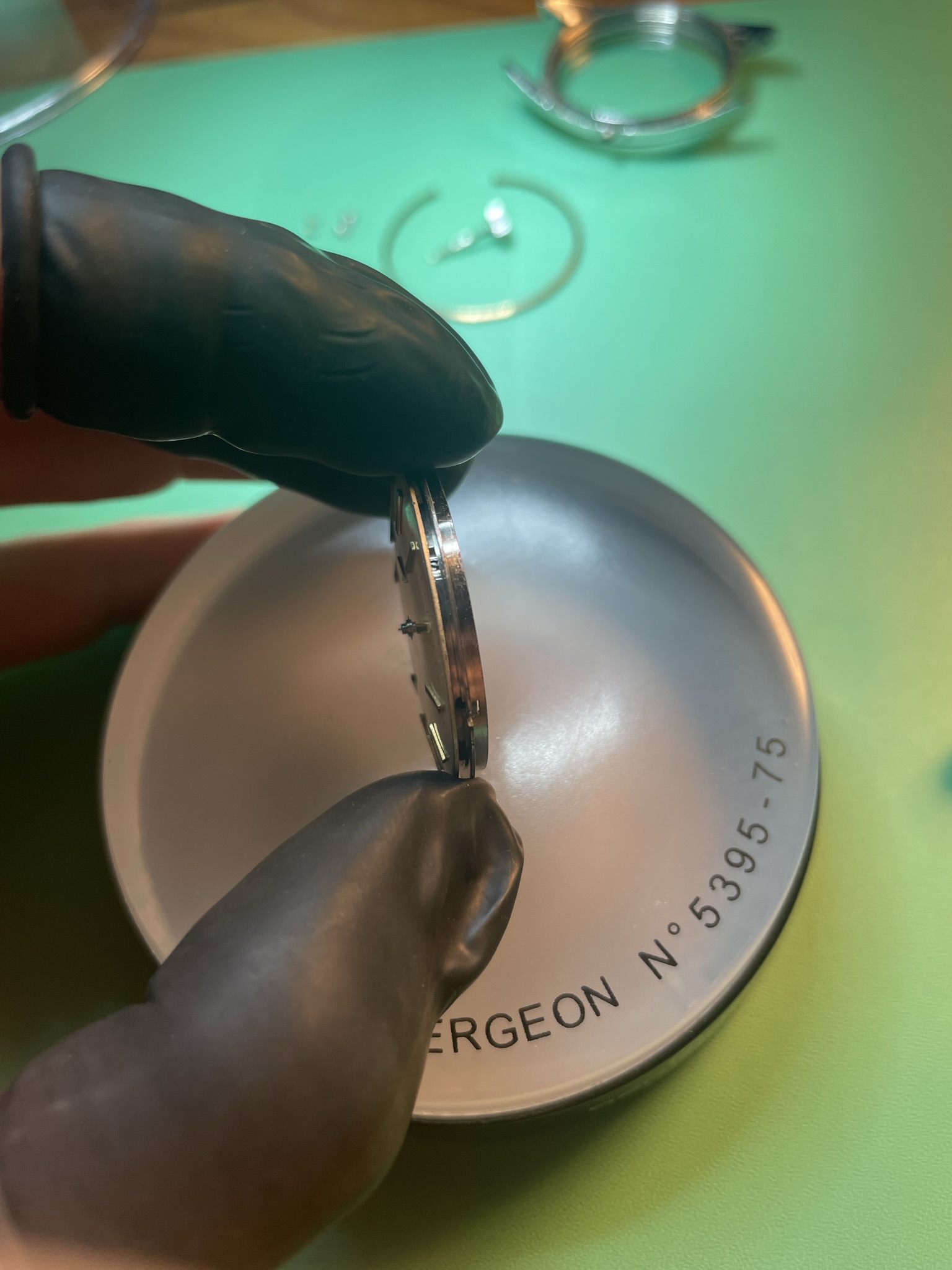

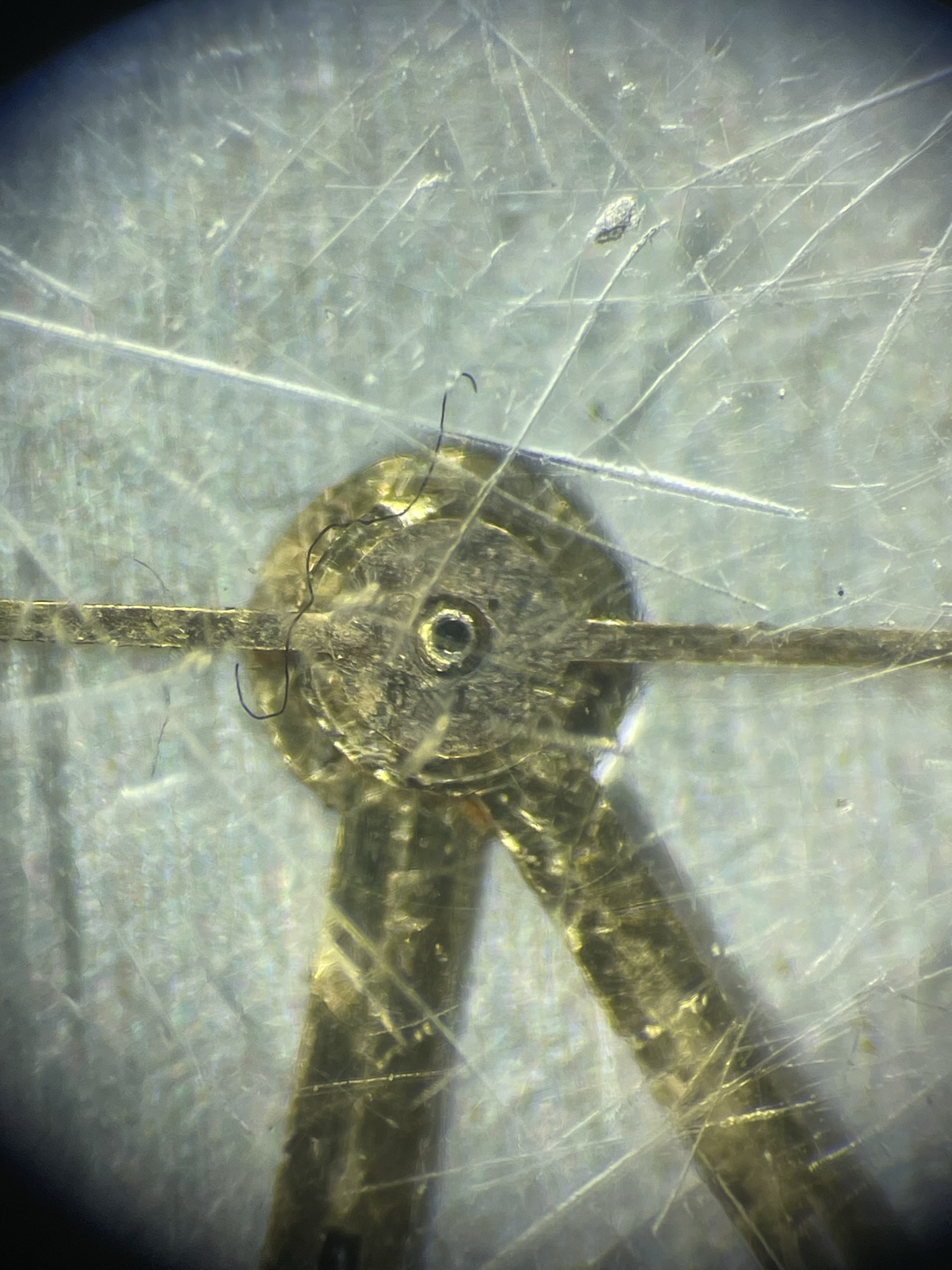

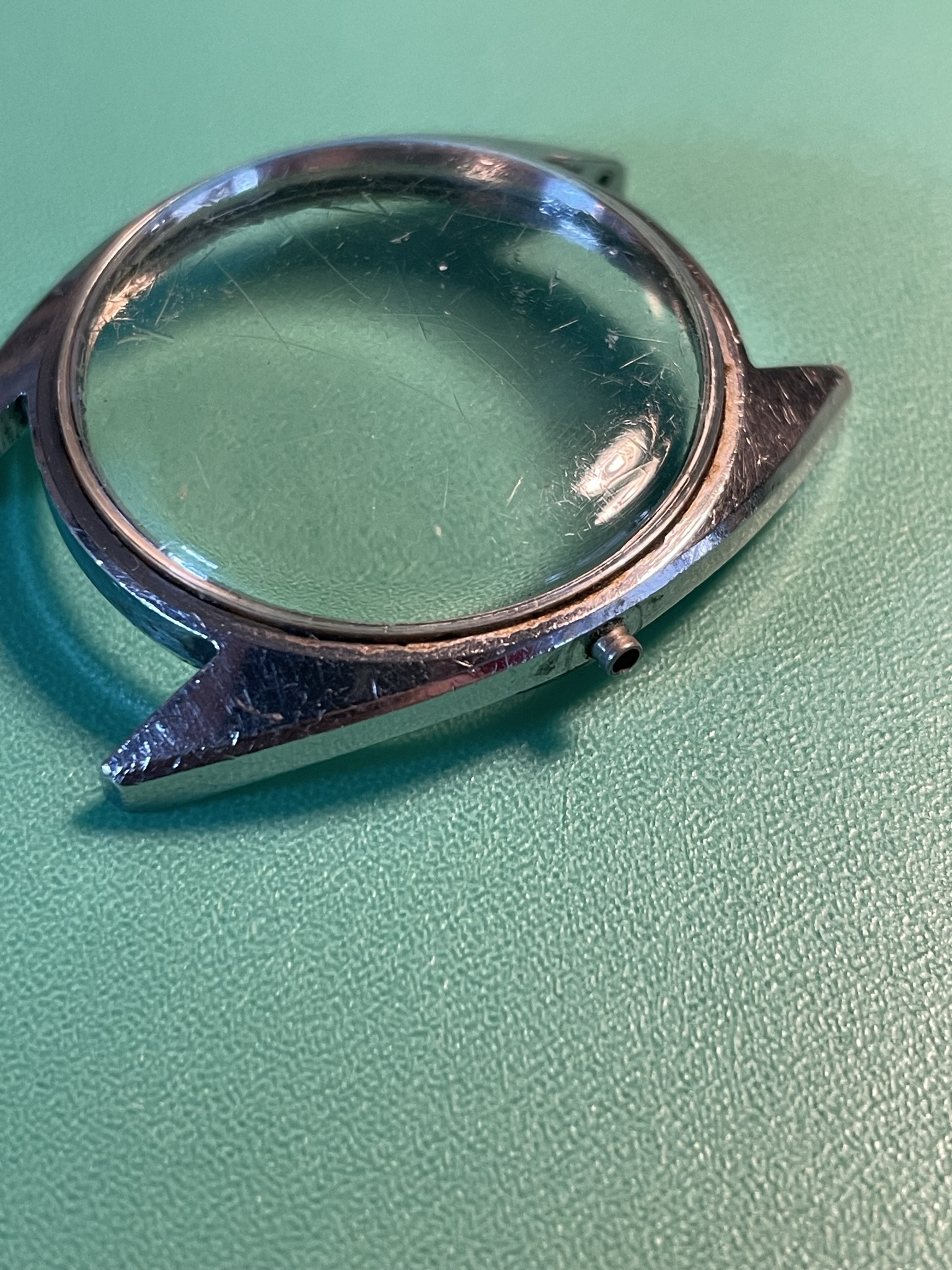

The crystal is toast. I can see an unfortunate scratch in the dial. Also the remaining oil is quite dirty, lots of fibres in here...

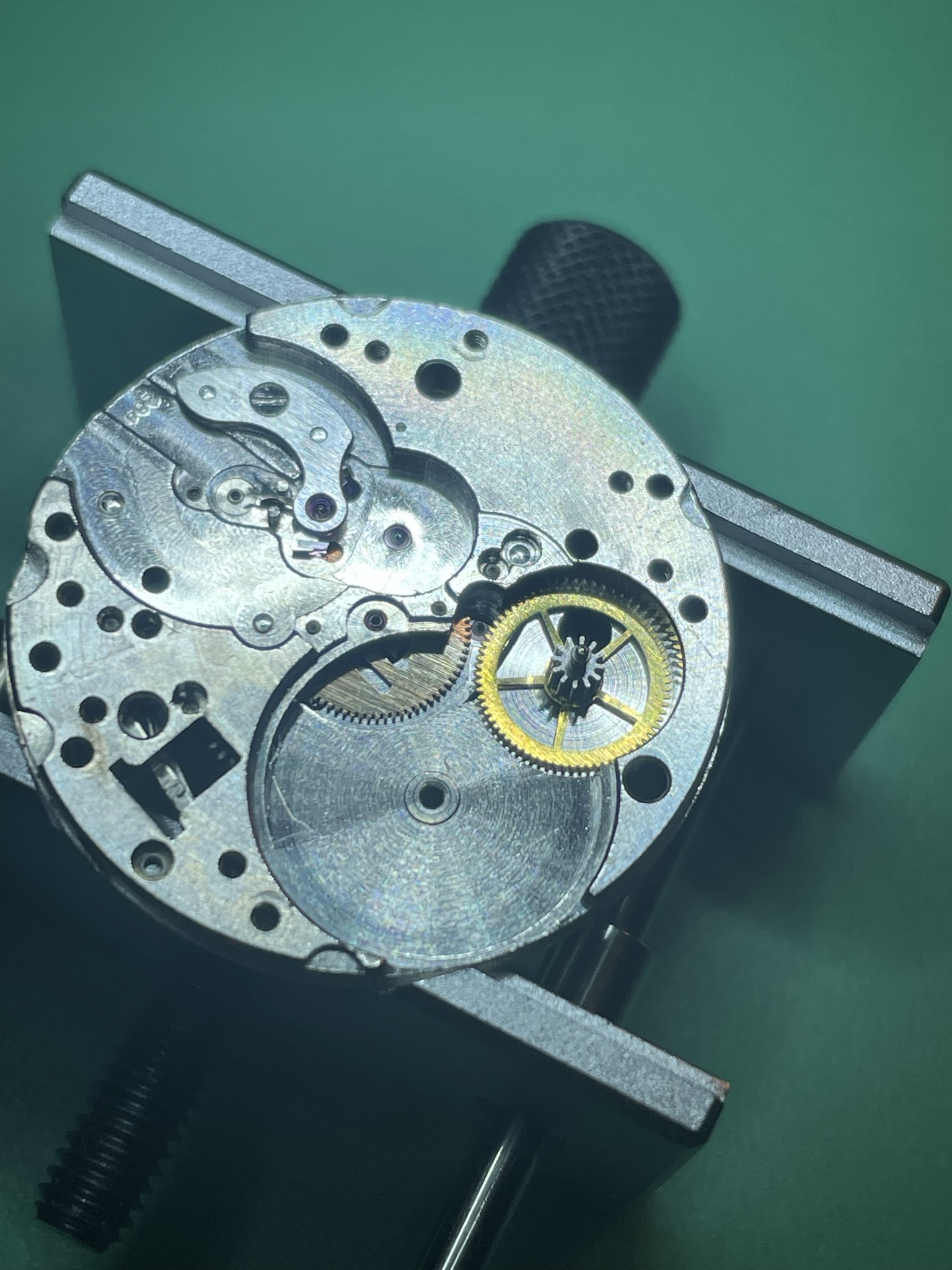

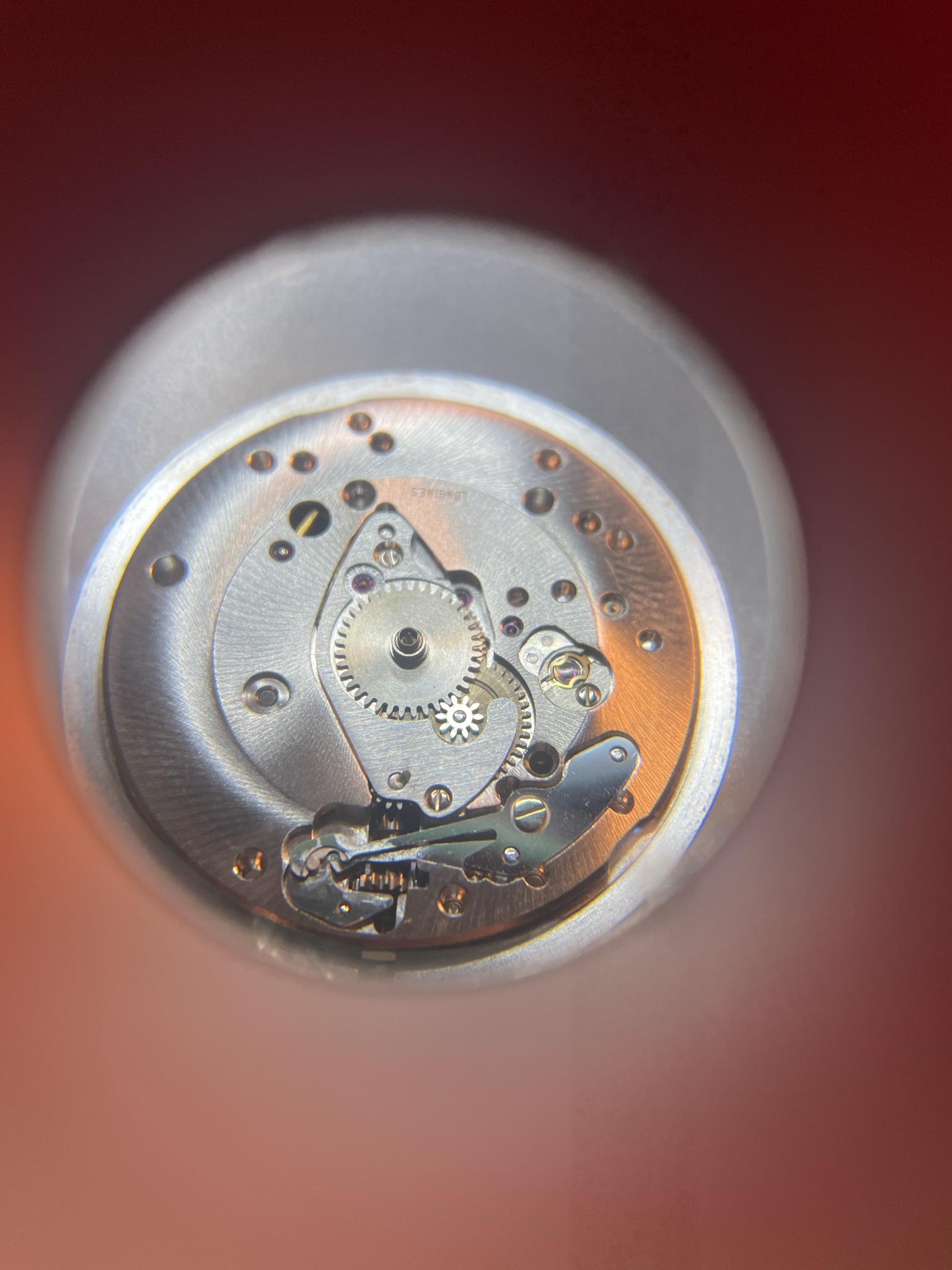

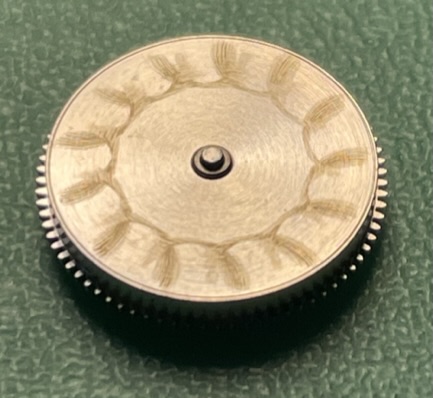

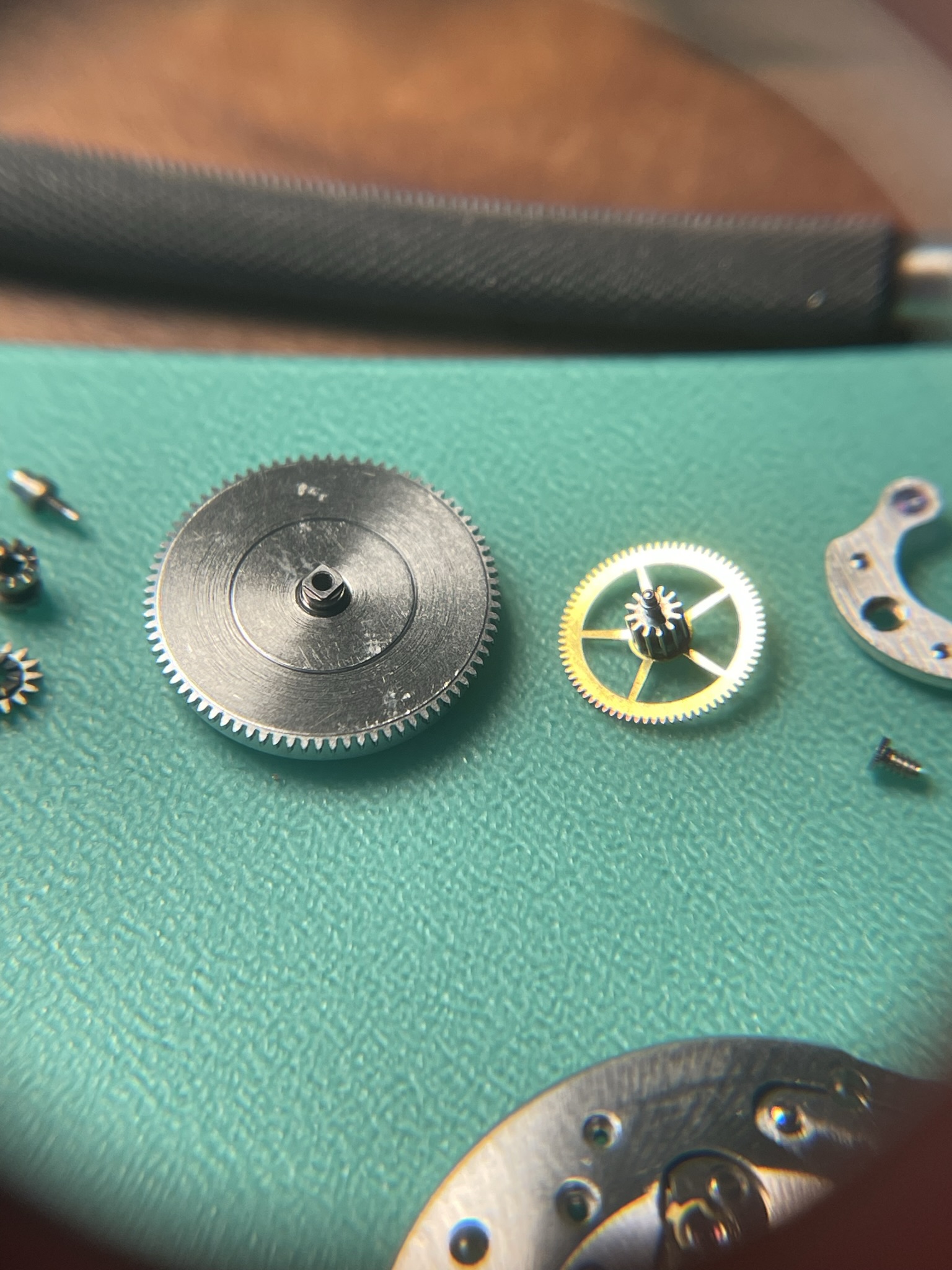

The barrel has a fascinating wear pattern on the bottom...

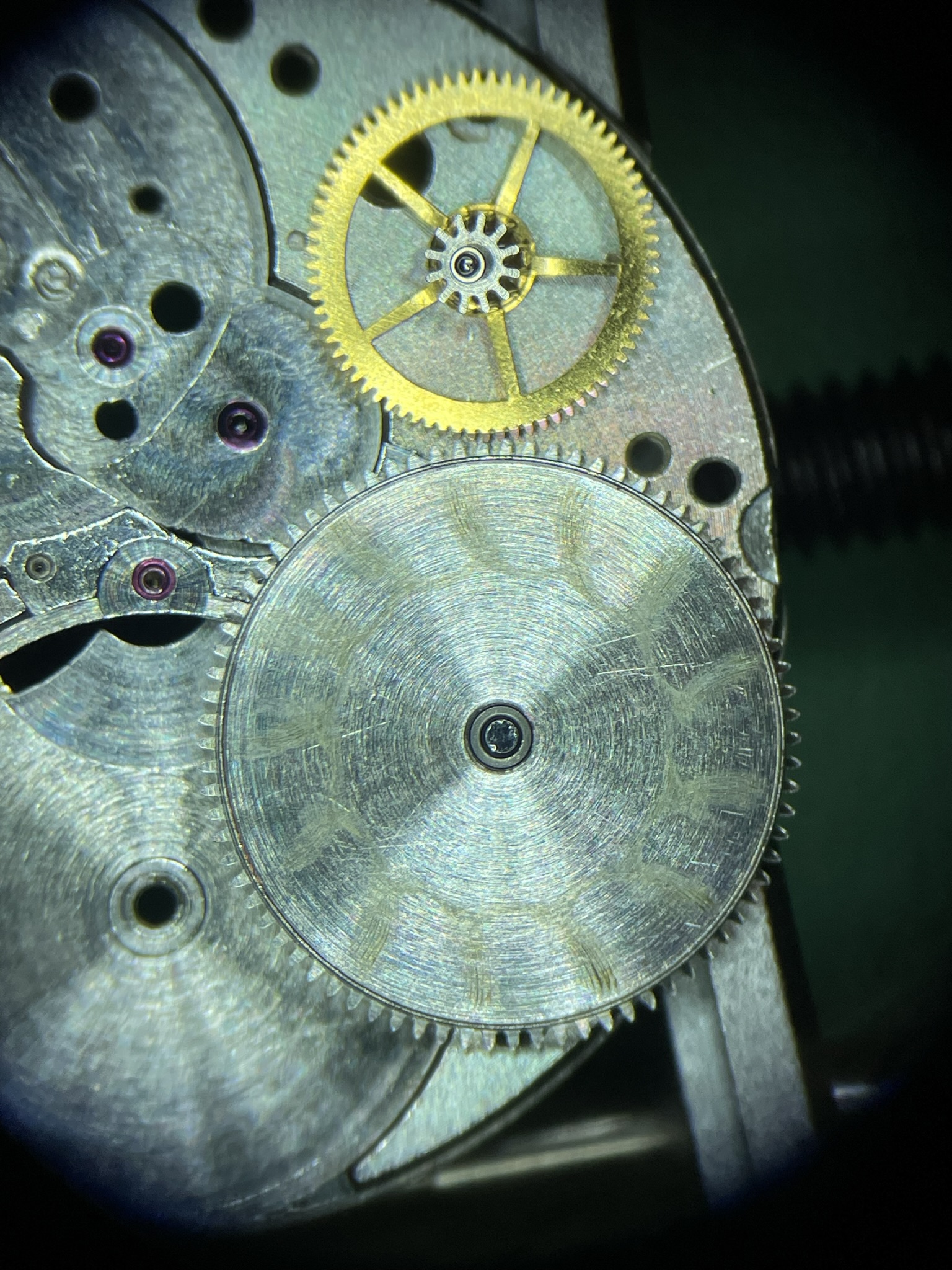

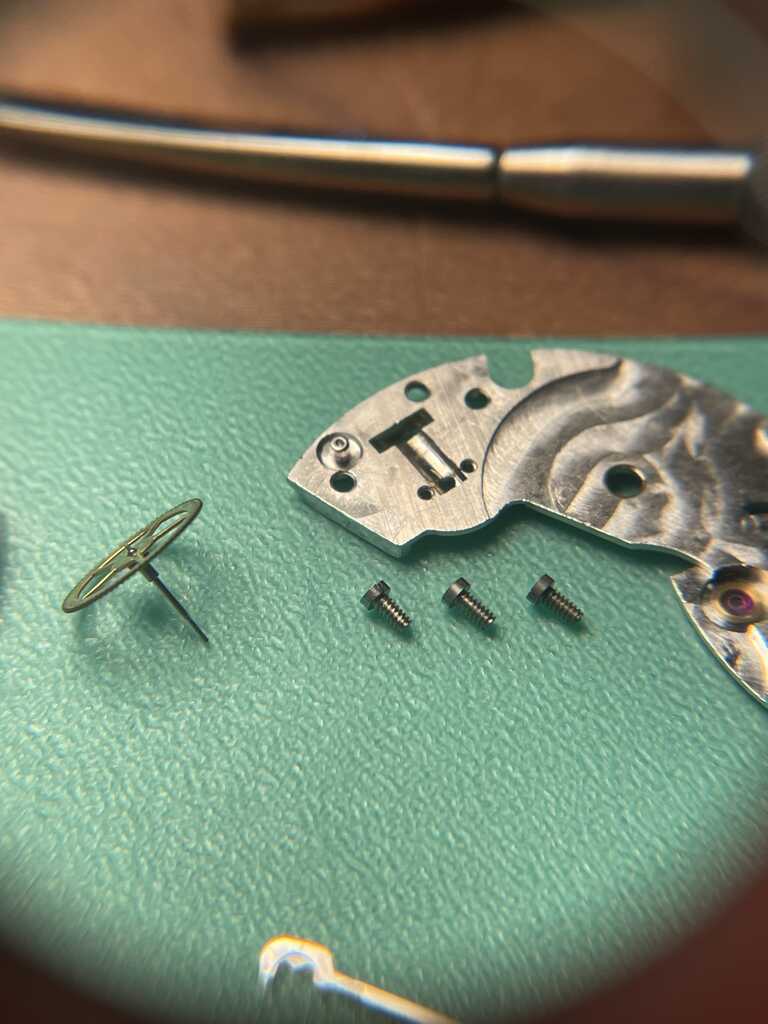

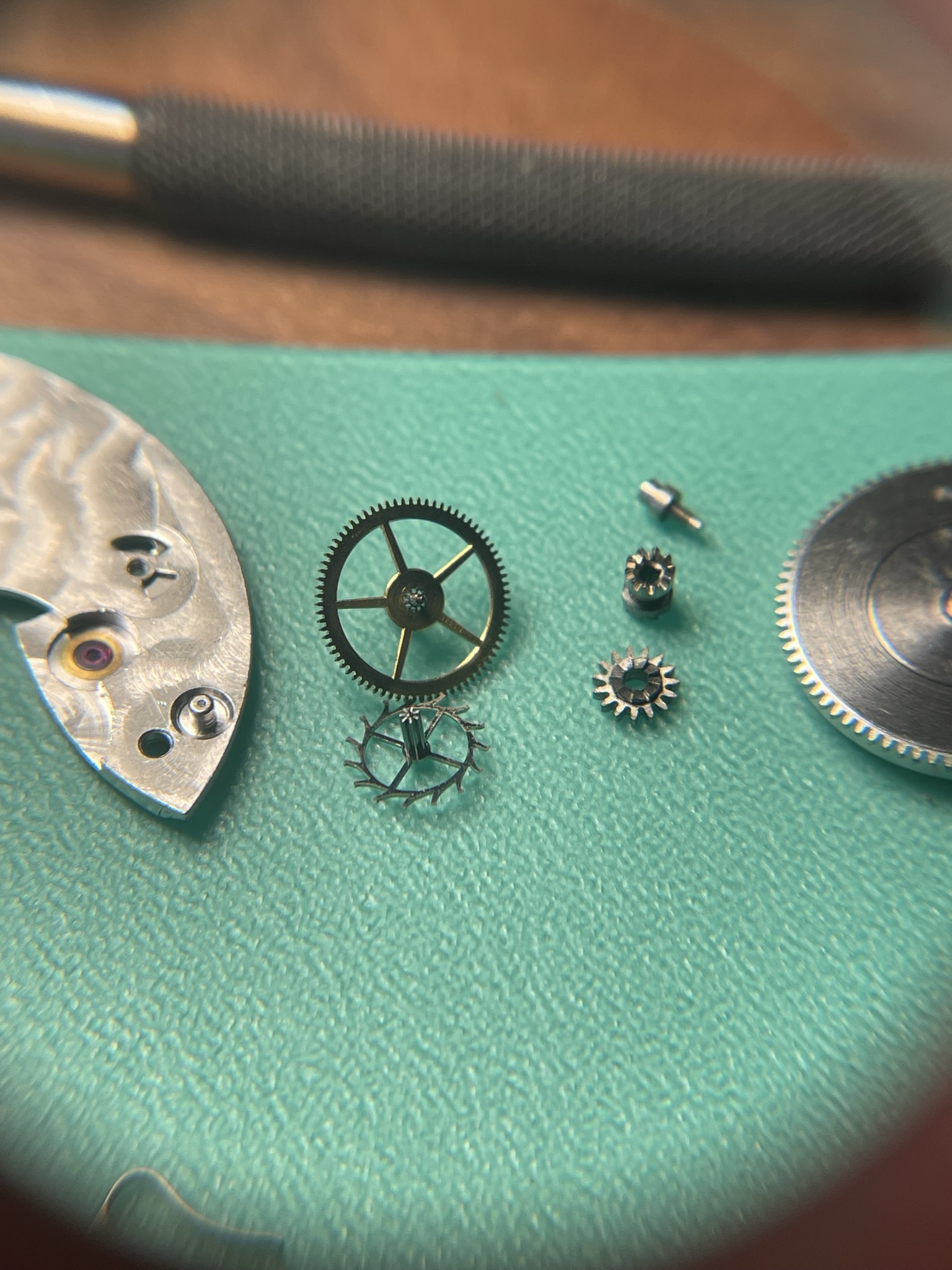

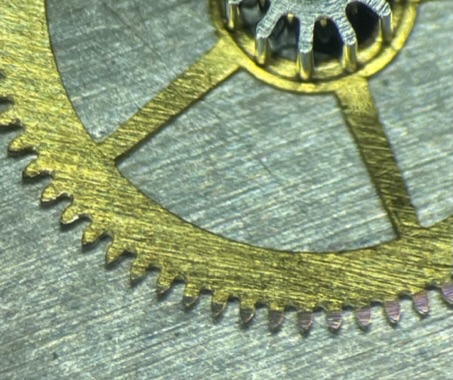

...and the centre wheel looks to be the culprit!

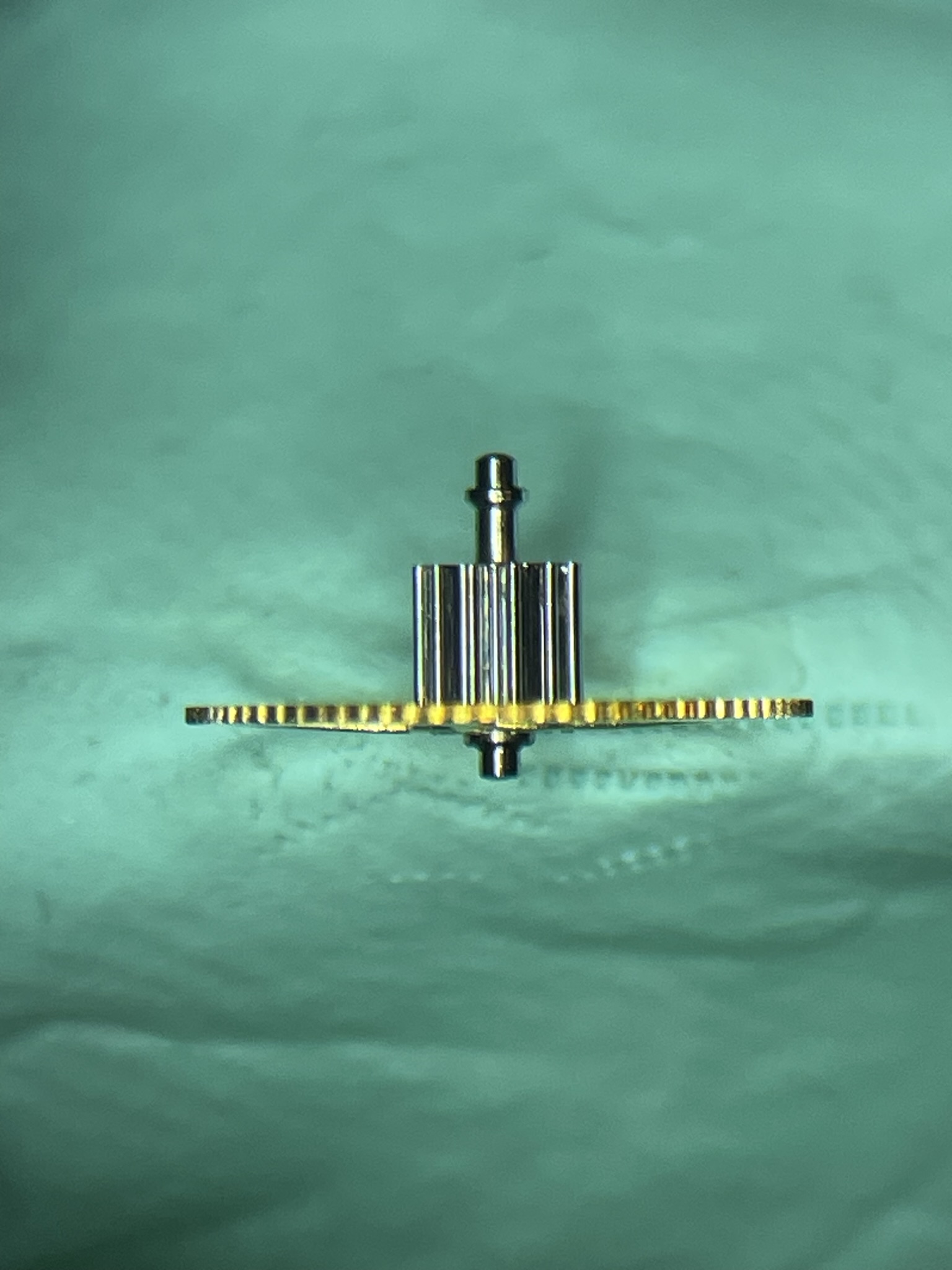

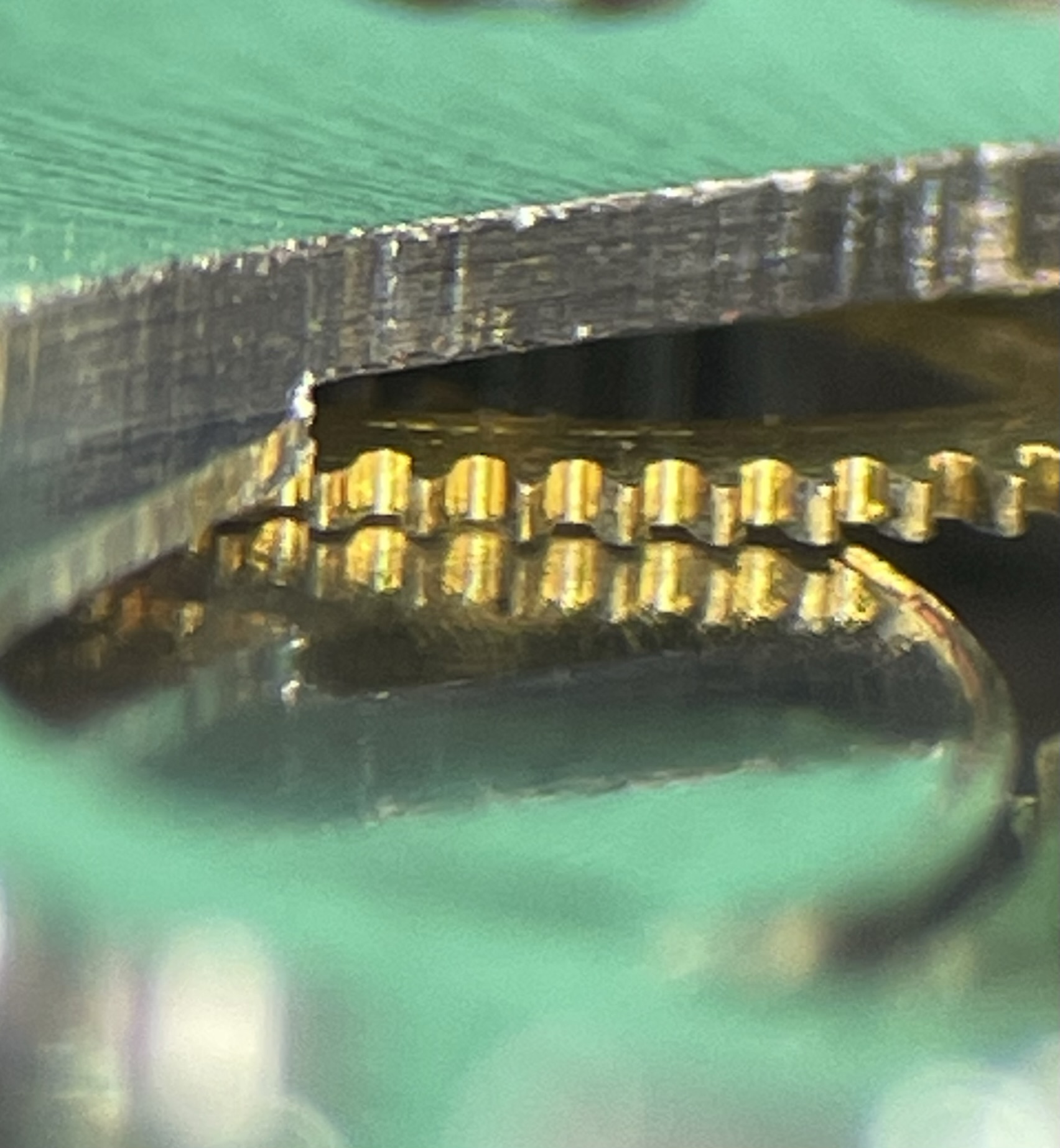

Yup, the wheel has a bow to it. Not sure how this happened, but it must be sorted out. I put the wheel in a large hole of my staking set and gently applied pressure from the back until it sat flat. We had a chat about this on wrt as well.

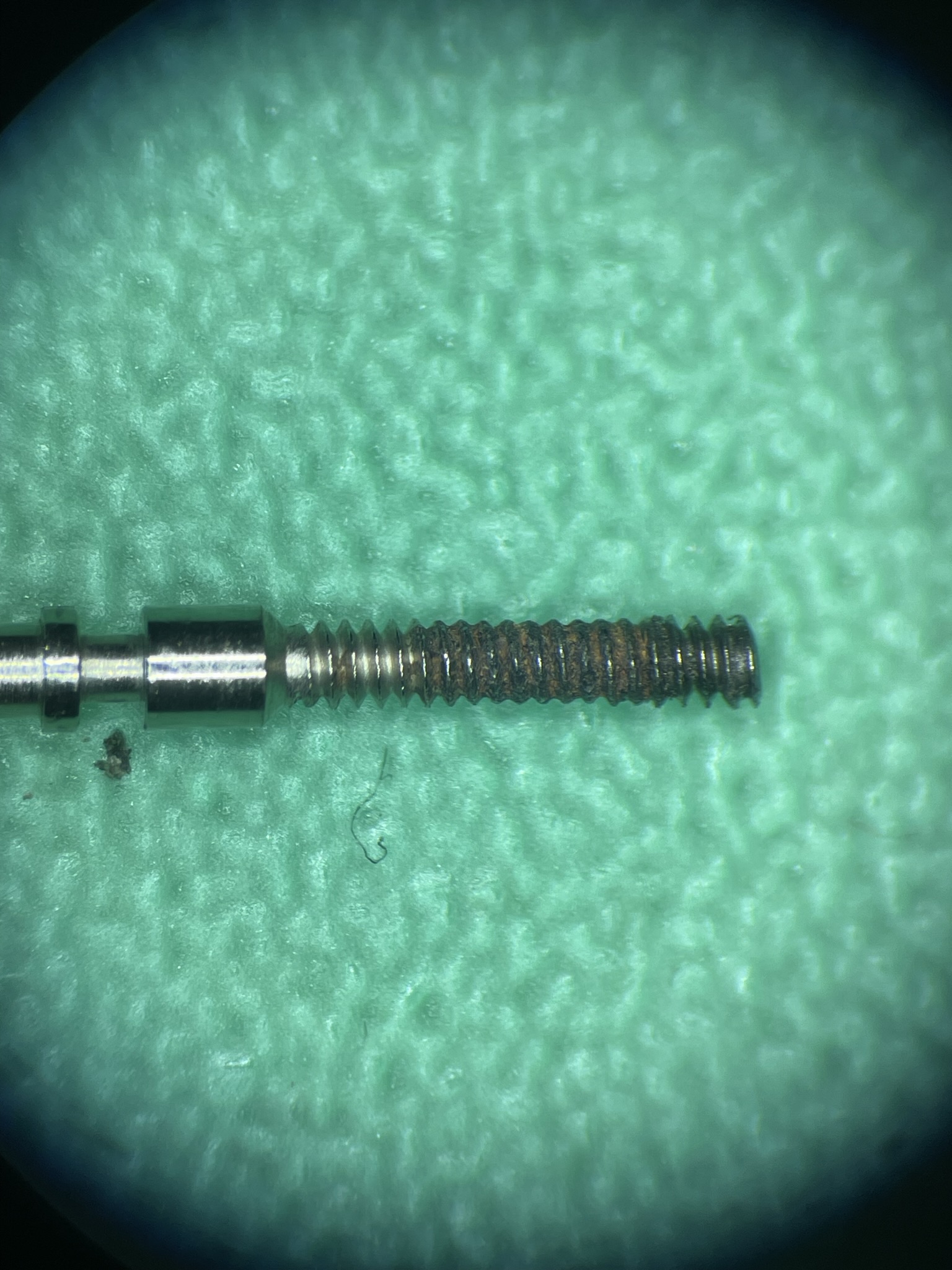

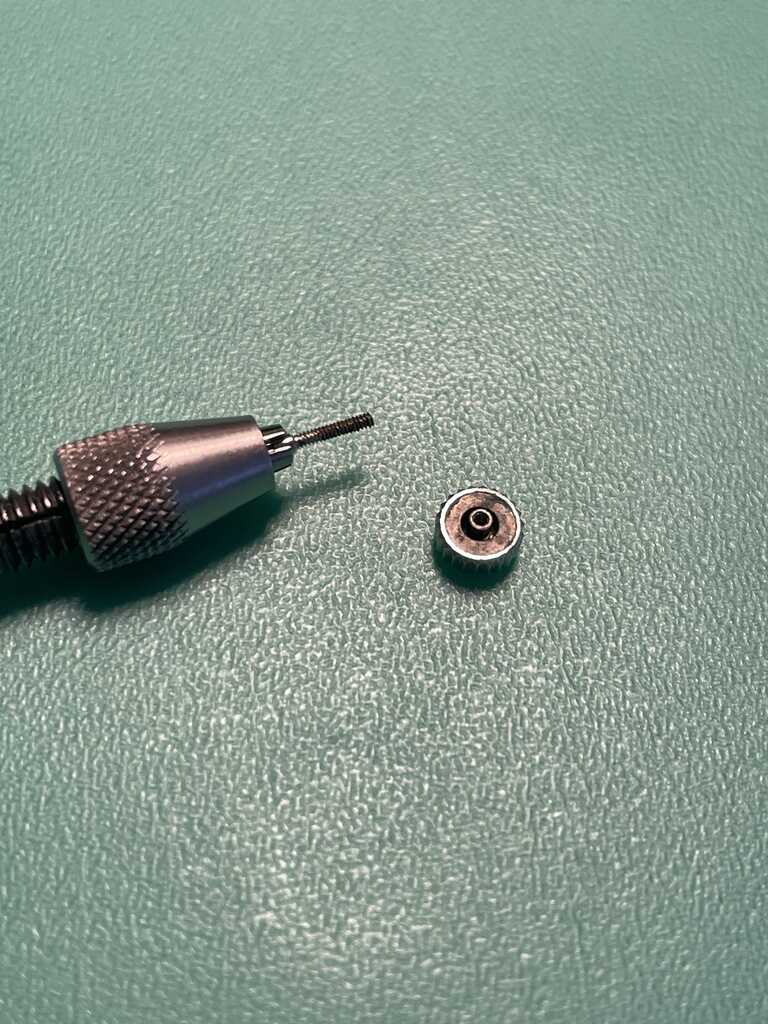

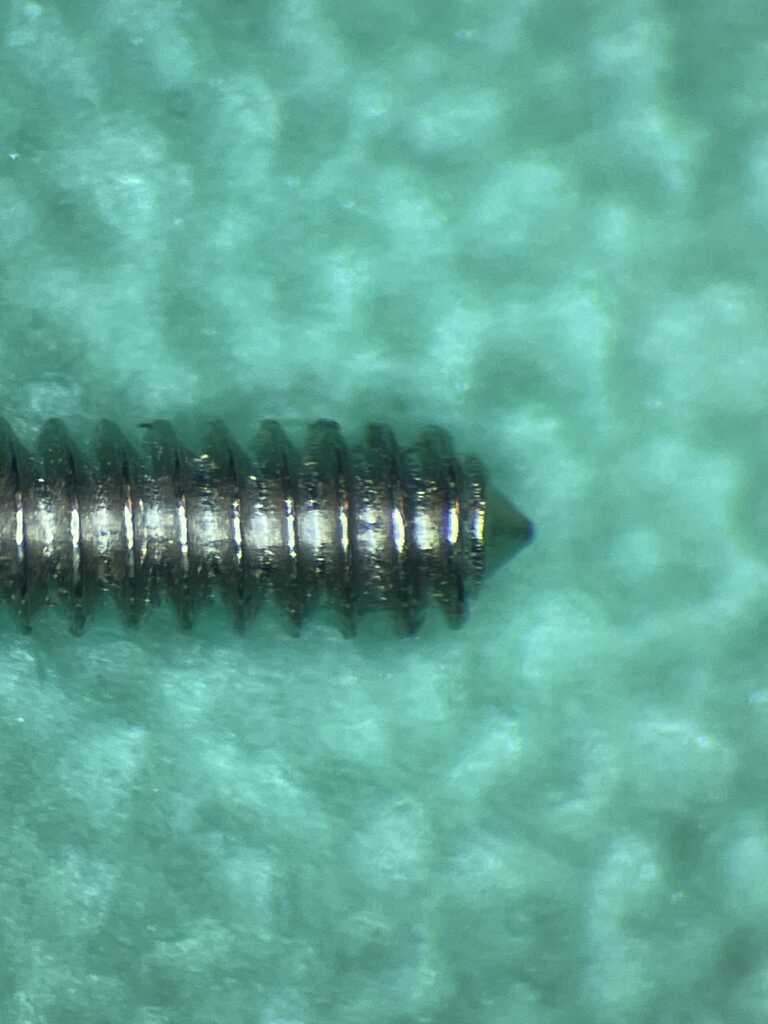

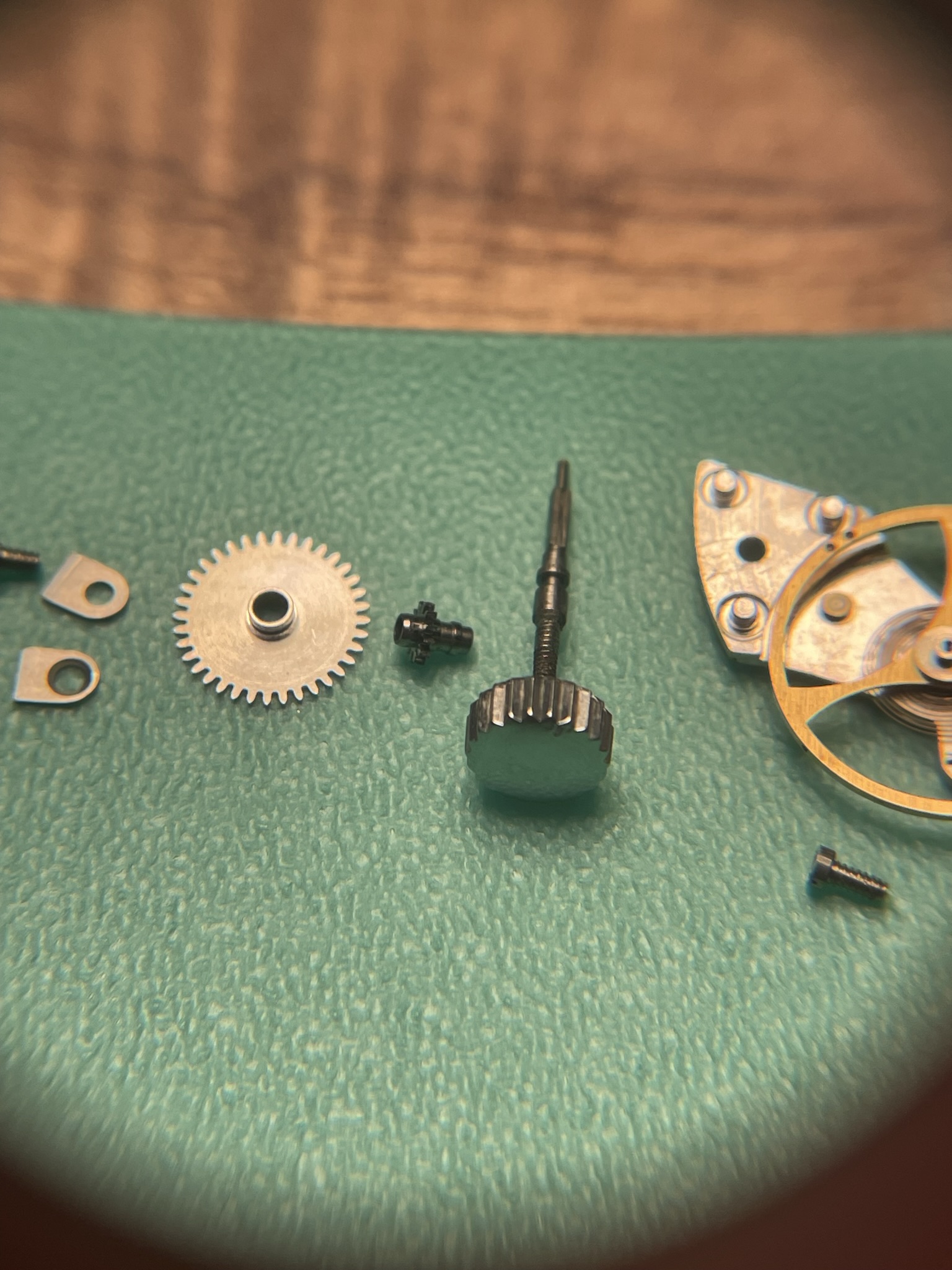

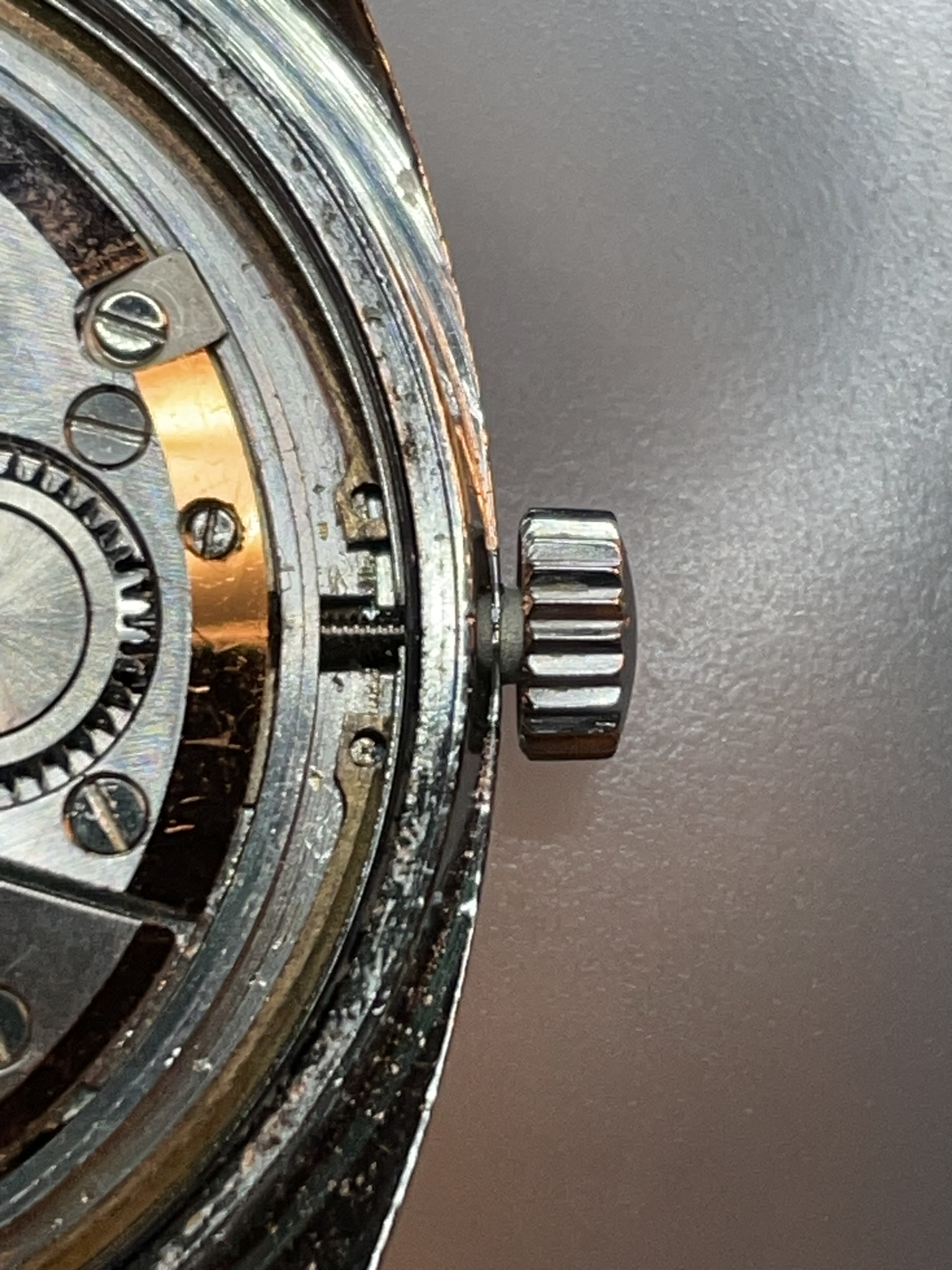

Next, the stem needed attention because of rust. I tried leaving it in Coke overnight but that ended up as collateral damage during cleanup after dinner one night. Luckily I was able to find a NOS stem on eBay.

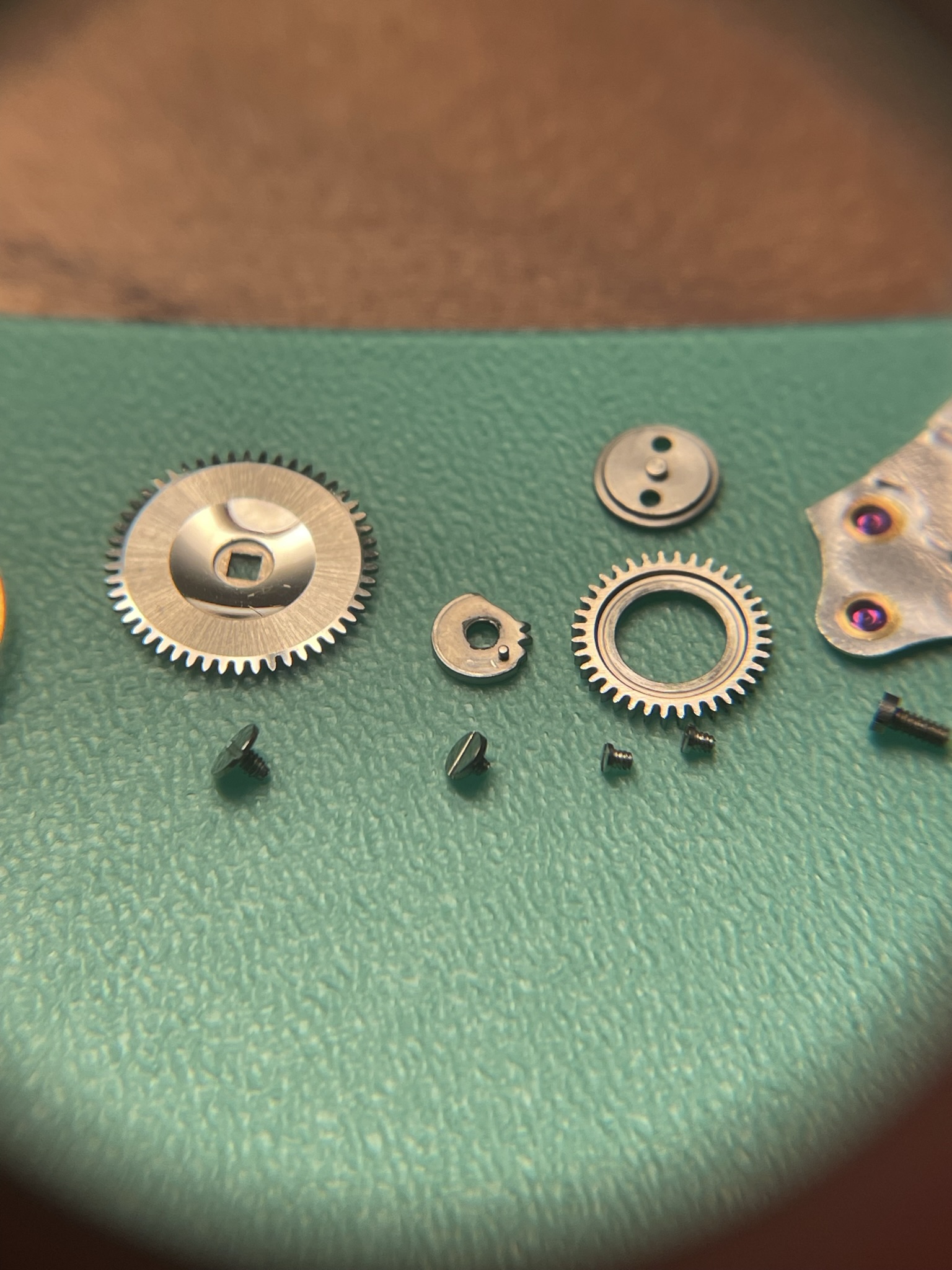

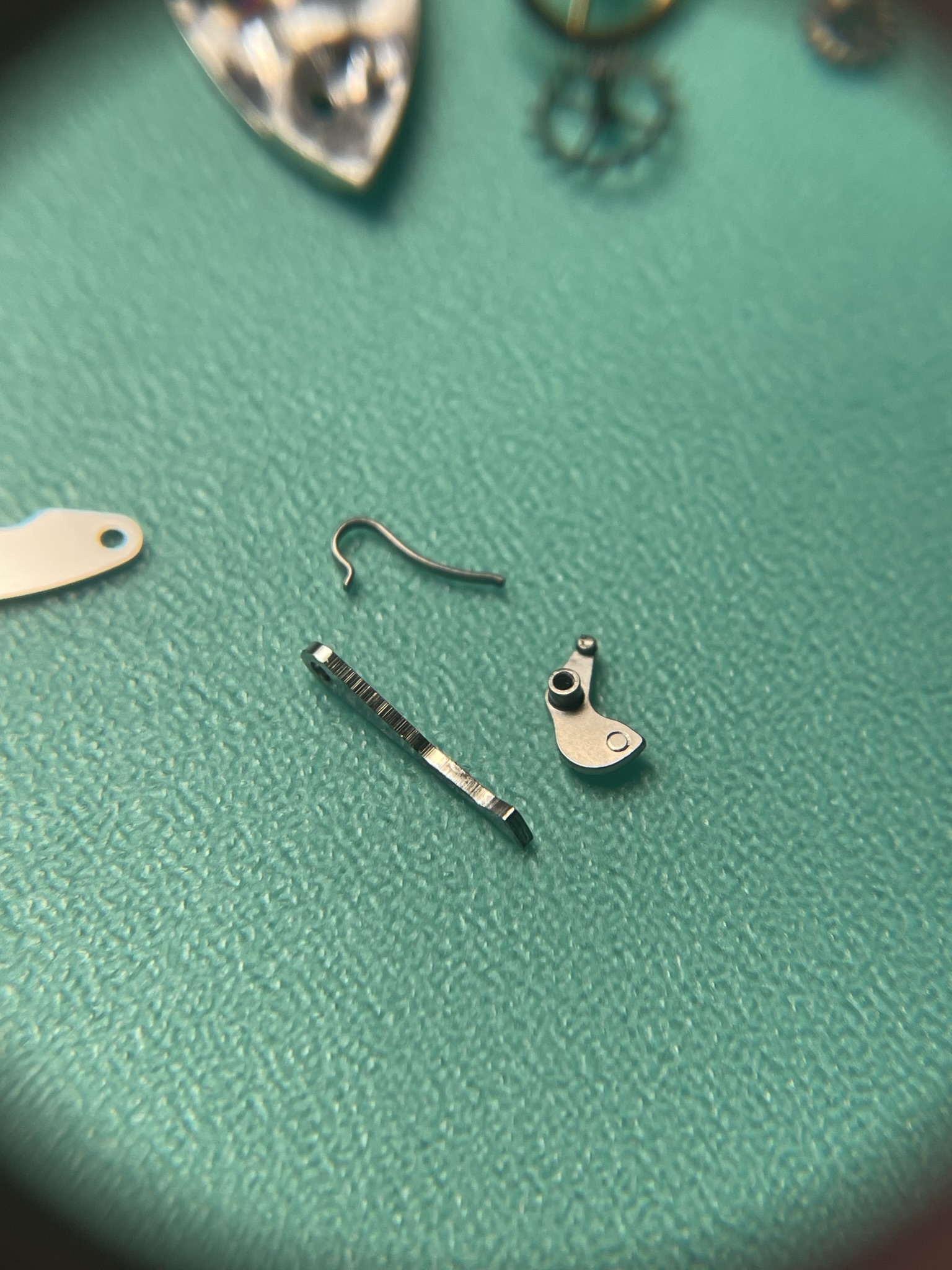

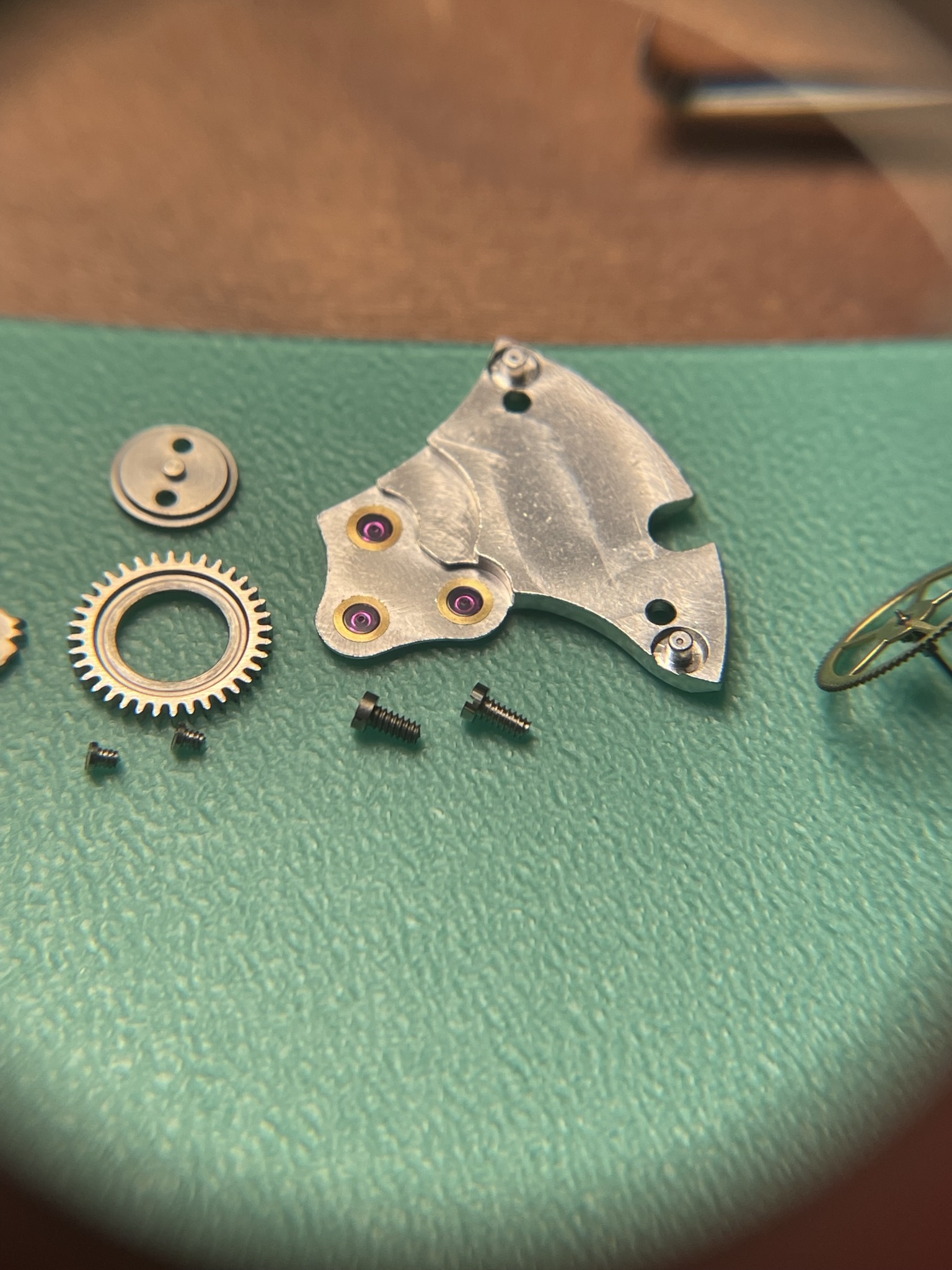

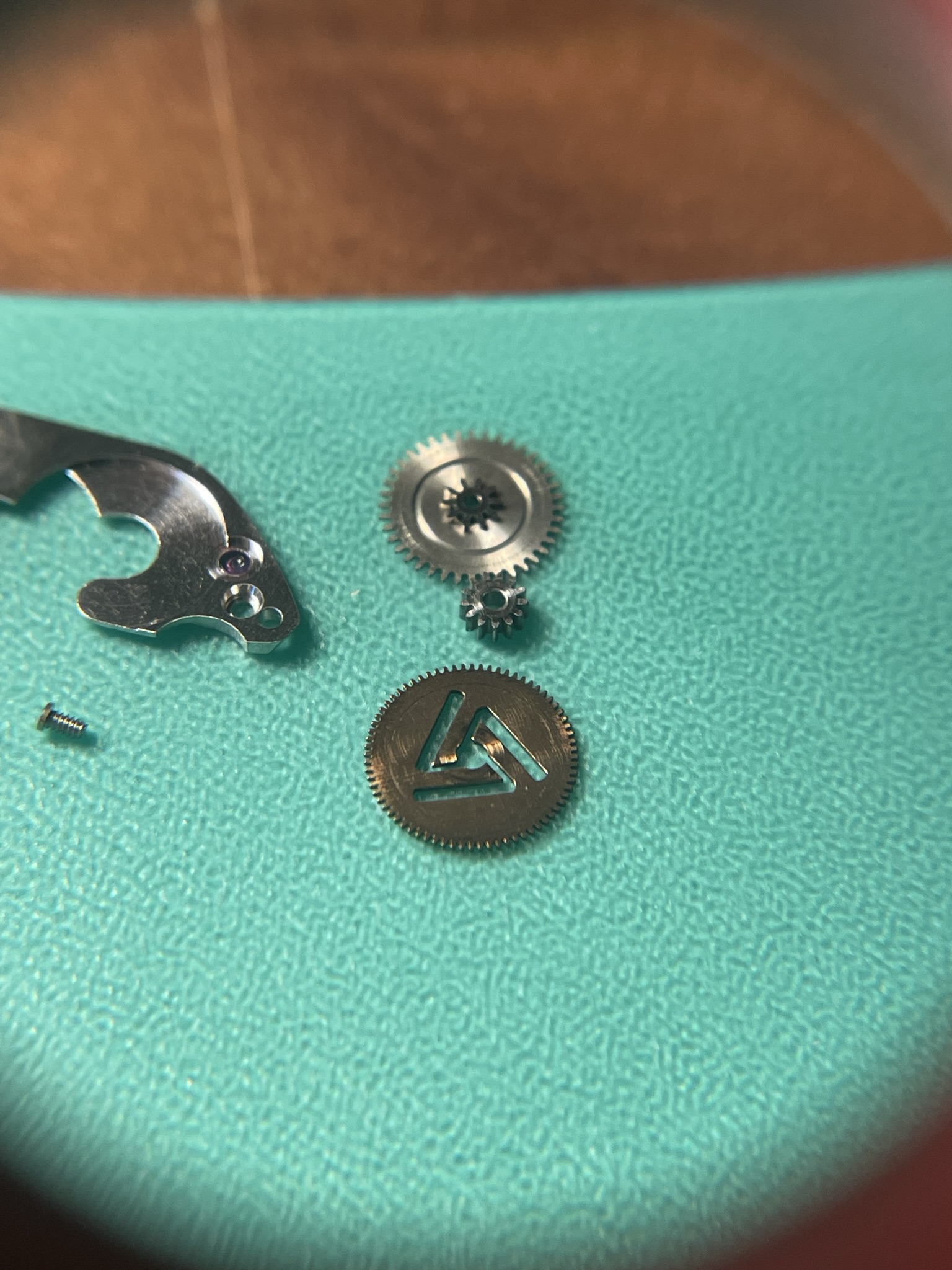

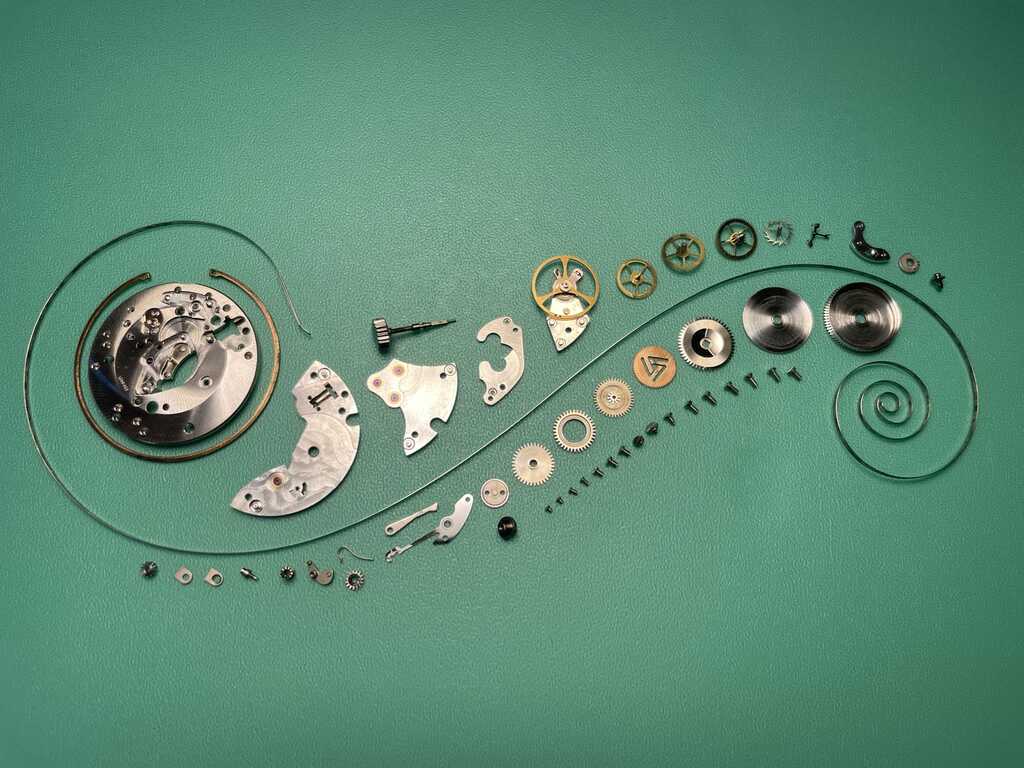

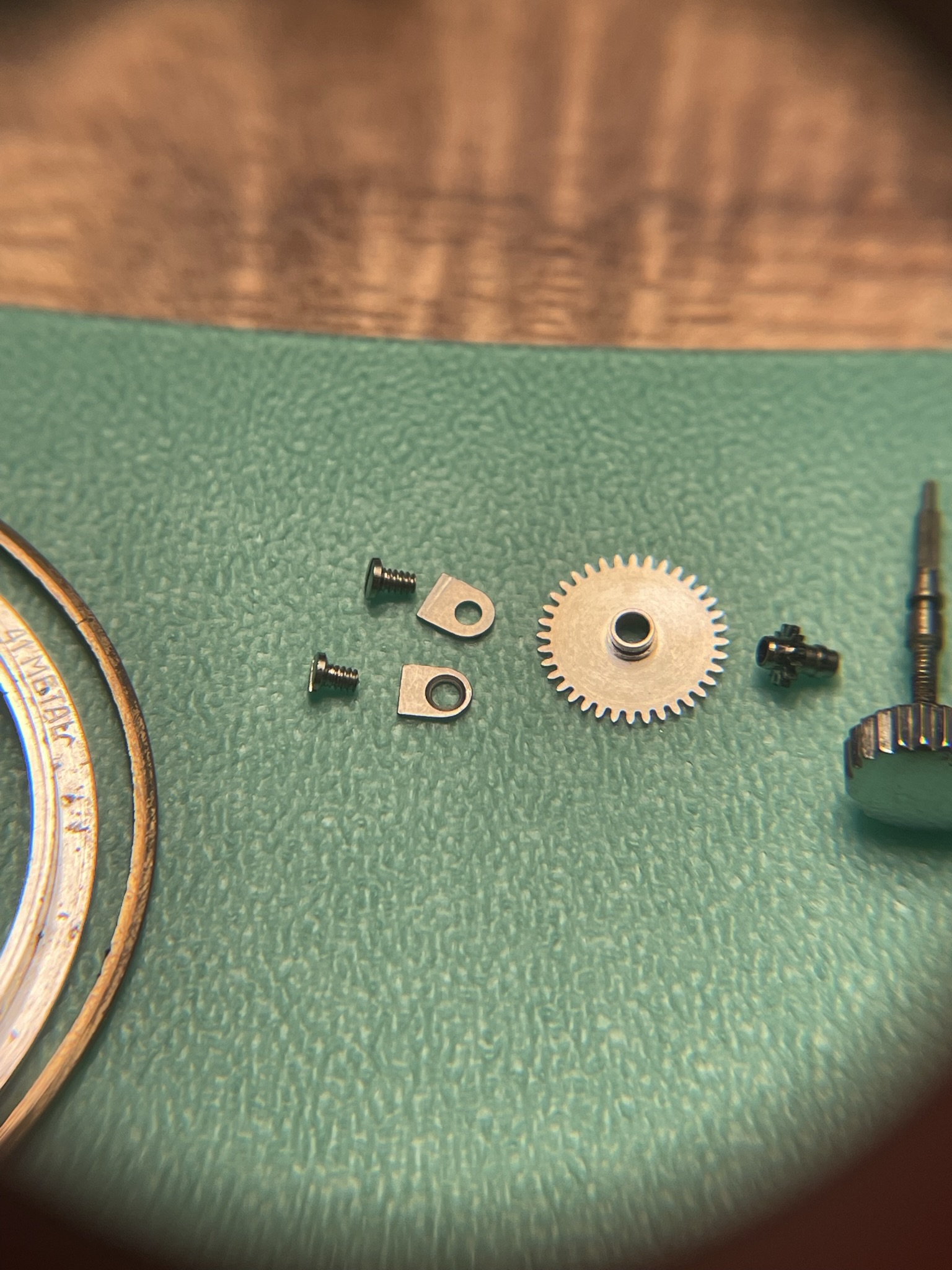

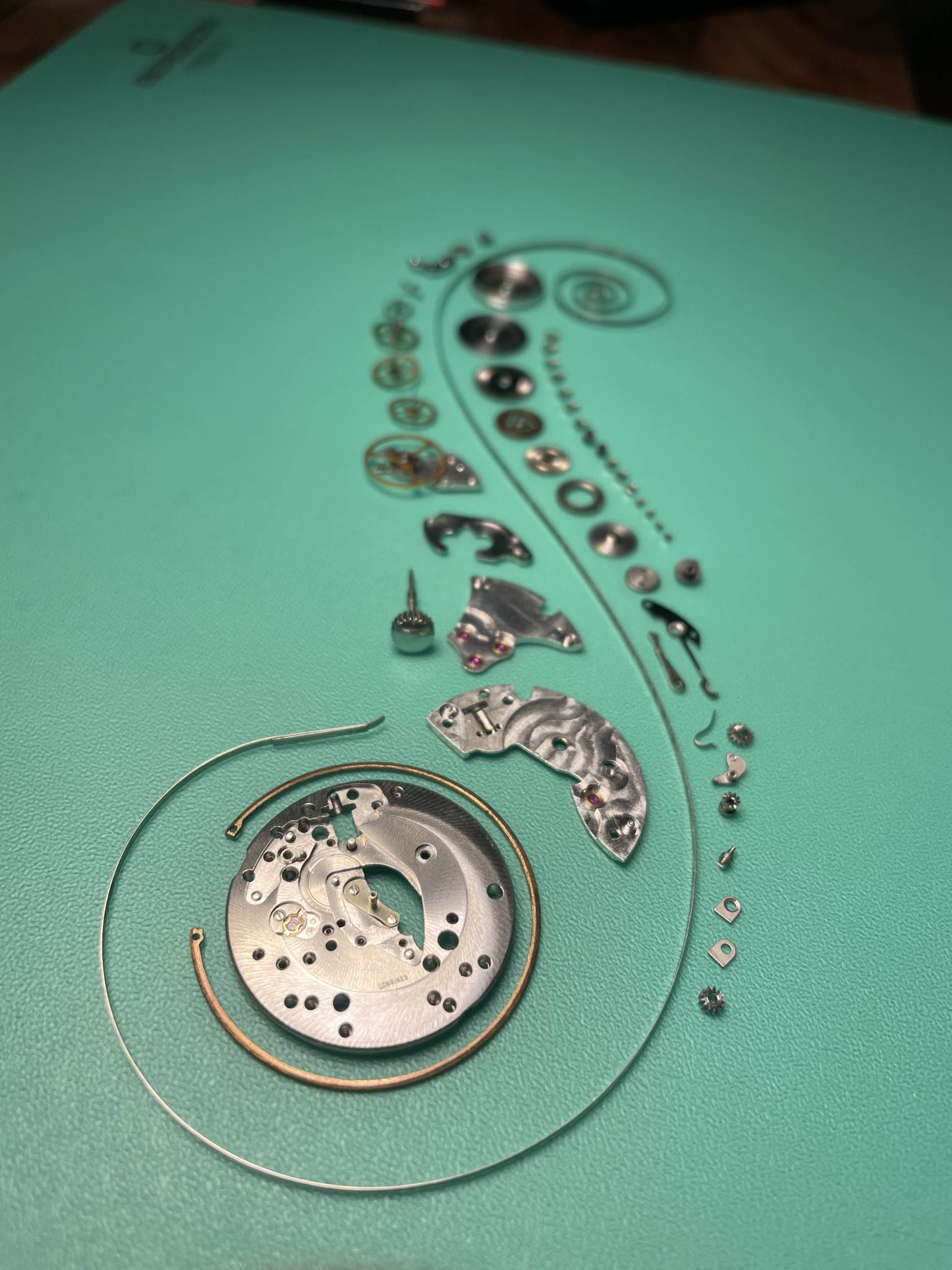

Component overview
Reassembly

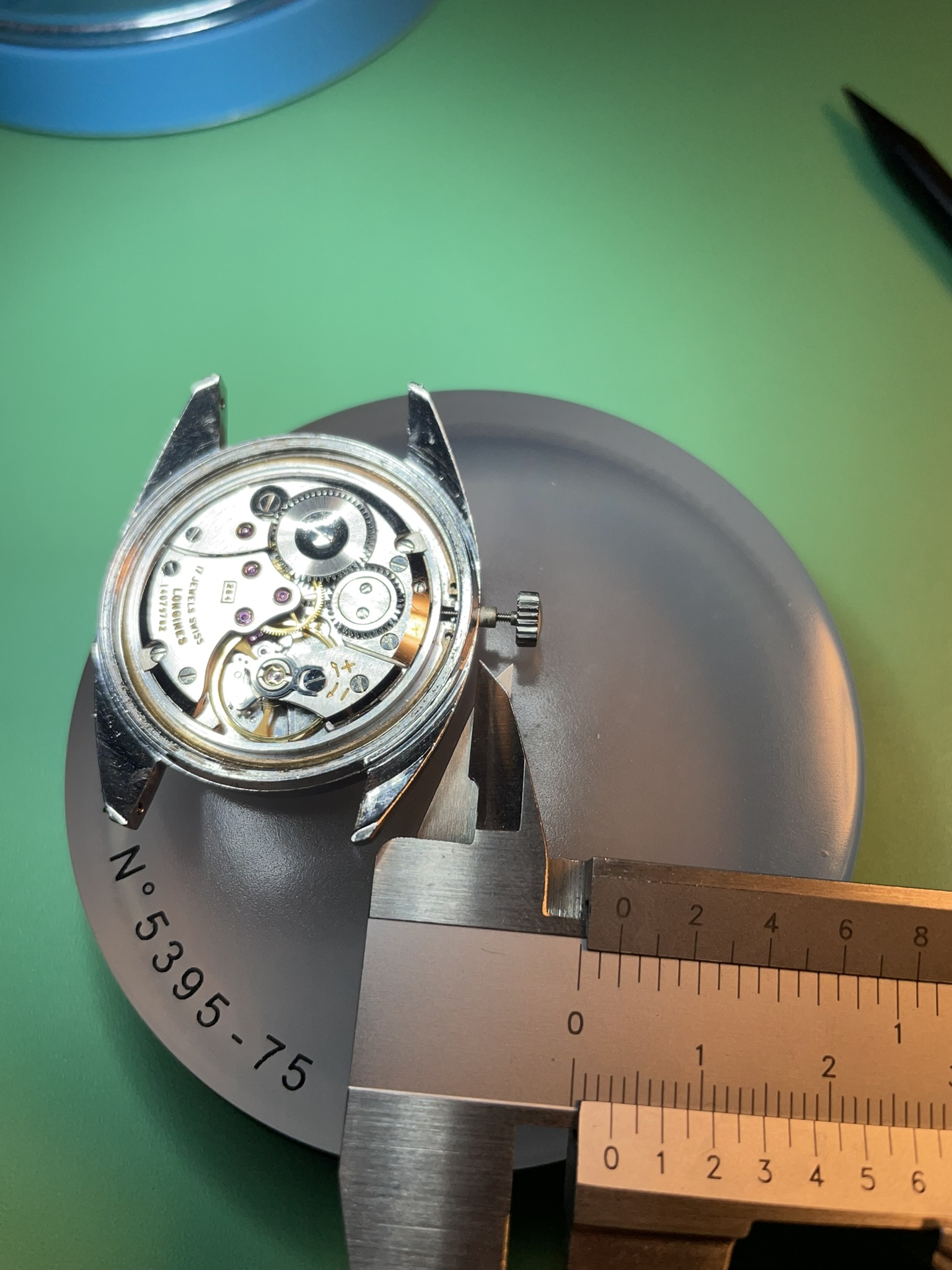

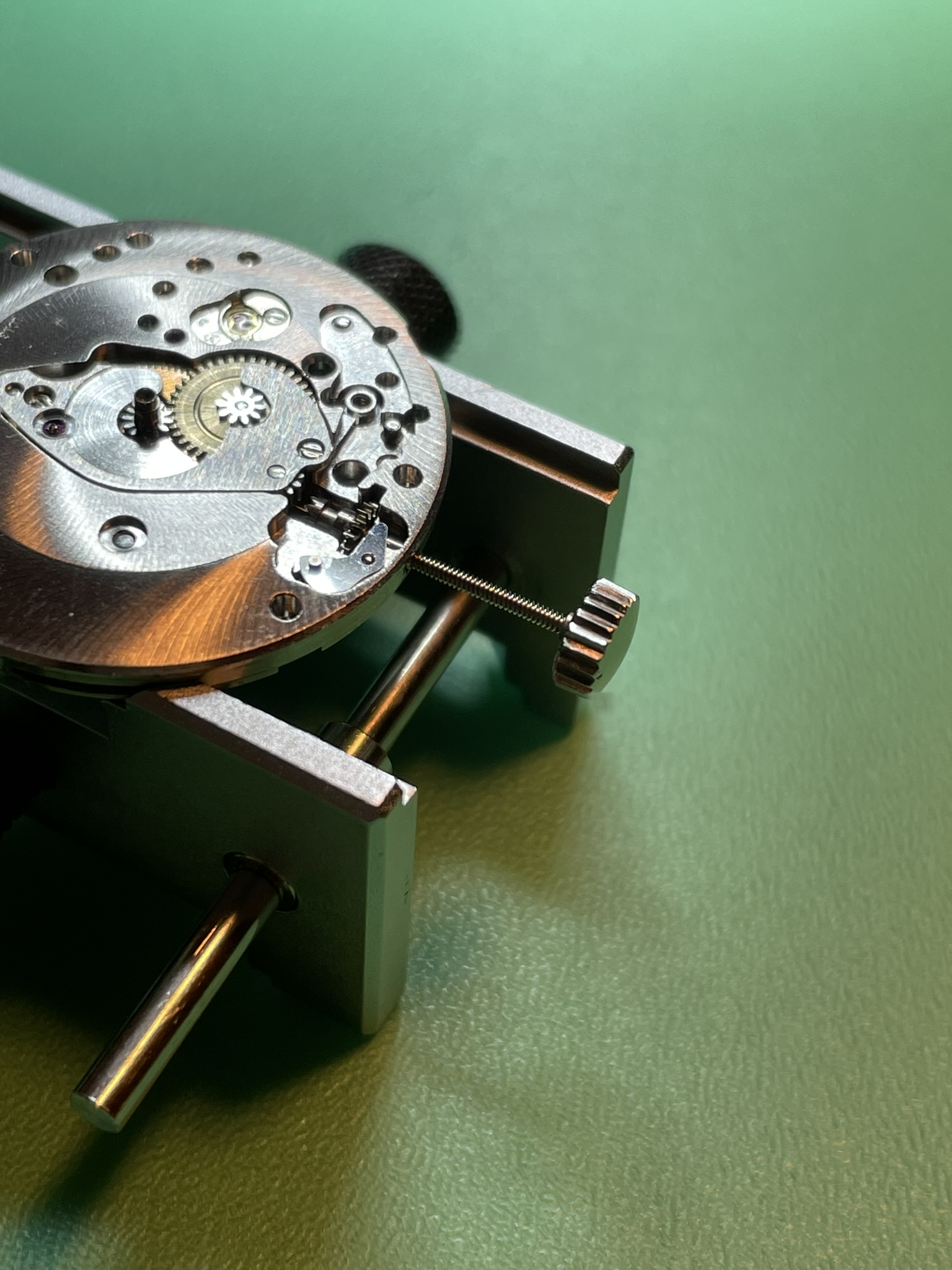

I sized the new stem and ordered a new crystal (ATC 315).
